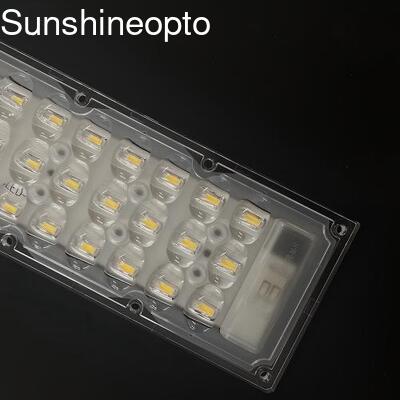

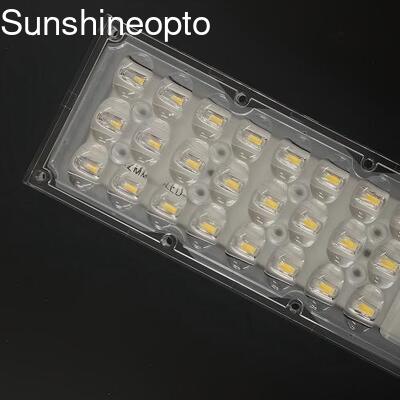

5050 SMD LED PCB Board and 163X85 Degree Beam Angle Optical Grade PC Material Lens For Lighting

Brand Name: Sunshineopto
Model Number: SUN-LD24H1-163X85-TPII-M
MOQ: 100
Price: negotiate
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS,RoHS,CE
Product Name:
5050 SMD LED PCB Board And 163X85 Degree Beam Angle Optical Grade PC Material Lens For Lighting
Model No.:
SUN-LD24H1-163X85-TPII-M
Beam Angle:
163X85 Degree TYPE II-M
Lens Size:
173X71.4mm
PCB Size:
145X47X1.5mm
Circuit:
8 Series 3 Parallel
LED Chip:
5050 SMD LED 6V 48V Output
Material:
Optical Grade PC
Packaging Details:
carton
Supply Ability:
5000pcs/months
Highlight:

40w 50w Street light lens

,

5050SMD MODULE Street light lens

,

3x8 Street light lens

Product Description
5050 SMD LED PCB Board and 163X85 Degree Beam Angle Optical Grade PC Material Lens For Lighting
High-performance LED module designed for 40W-50W street lighting applications, featuring advanced optical technology and thermal management.
Product Overview
The 5050 SMD LED PCB Board combined with a 163x85-degree beam angle optical-grade PC material lens offers an exceptional lighting solution for a wide range of B2B customers, including lighting manufacturers, wholesale distributors, and contractors. This LED lighting module features high luminous efficiency and optical-grade materials to ensure long-lasting performance and consistent light distribution. The 163x85-degree beam angle ensures optimal light coverage while maintaining low energy consumption, making it ideal for indoor lighting, outdoor lighting, commercial applications, street lighting, and decorative lighting.
Key Features
  • The 5050 SMD LEDs are renowned for their high luminous efficacy, producing a powerful light output while maintaining low power consumption.
  • The lens is made of optical-grade PC (Polycarbonate), a material known for its high optical clarity, impact resistance, and UV protection.
  • Ideal for retrofitting existing lamps or designing new power lamps
  • Cost-effective solution to replace Metal Halide or HPS bulbs
  • Advanced thermal management technology
  • Operating temperature: -35°C to +70°C
  • Mercury-free and lead-free construction
  • No UV radiation emission for eye safety
  • Directional lighting design for dark sky compliance
Technical Specifications
Product Name 5050 SMD LED PCB Board and 163X85 Degree Beam Angle Optical Grade PC Material Lens For Lighting
Model No. SUN-LD24H1-163X85-TPII-M

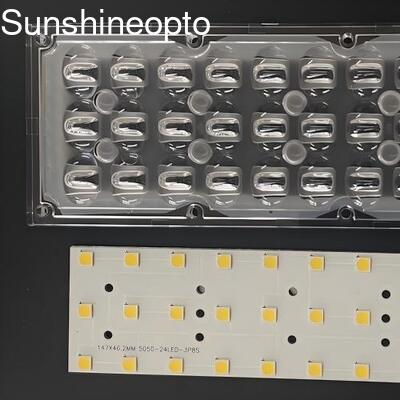

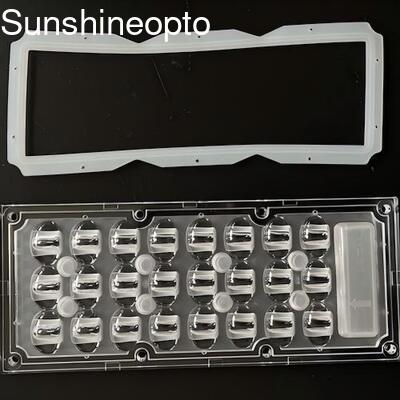

Main Components 24 Array Lens, Silicon Gasket, PCB Board with LED
Lens Material Polycarbonate (PC)
Lens Size 173×71.4mm
PCB Size 145×47×1.5mm
Power Range 30-50W
Output Voltage 48V
Lumen Efficiency 130-160lm/W for PCB Board
Viewing Angle 163×85 Degree
Transmittance 93%
LED Type 5050 SMD 1-5W 6V LED
LED Configuration 8 Series 3 Parallel
Available Angles 60°, 90°, 143×70°,TYPEII-S
Quality Guarantee Replacement or refund for defective items
Main Markets Europe, South America, North America, Asia
Lens size drawing
5050 SMD LED PCB Board and 163X85 Degree Beam Angle Optical Grade PC Material Lens For Lighting 0 5050 SMD LED PCB Board and 163X85 Degree Beam Angle Optical Grade PC Material Lens For Lighting 1






































Applications
Street lighting, highway lamps, tunnel lighting, square lighting, road lamps, city lighting, parking spot lighting, track lighting fixtures, scenic areas, retail lighting, and other applications requiring high luminous flux.
Shipping & Delivery
Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 Working Days
EMS 10-15 Working Days
HK Post Air Mail Register 15-18 Working Days
Trade Terms FOB | EXW | CIF | CFR
Sample Availability YES
Standard Delivery Time 3-4 Working Days
