Place of Origin:
Shenzhen,China
Brand Name:
Sunshineopto
Certification:
ROHS
Model Number:
SUN-BAA28TYPE4S-27075
Contact Us

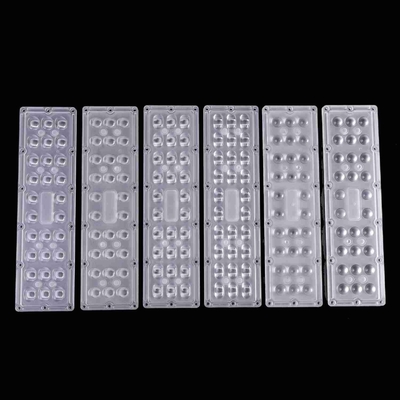

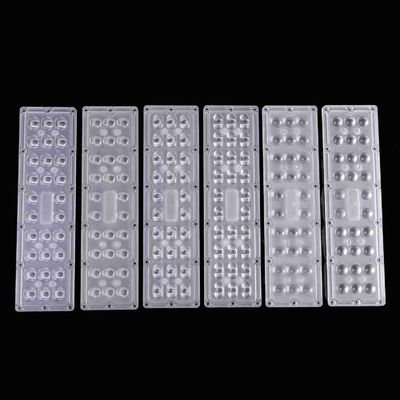

28W SMD 4pcs 3030 Led Street Light Lens TYPE4-S For Street Light
Features:
1, This SKD 28W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 56W,84W,112W and so on.
2, It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3, Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
4, Industry-leading thermal management utilizing technology.
5, Does not produce UV rays that harm people’s eyes.
6, Directional light means no light pollution, dark sky compliance.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
Specifications:
|
Product Name |
28W SMD 4pcs 3030 Led Street Light Lens TYPE4-S For Street Light |
|
Model No |
SUN-BAA28TYPE4S-27075 |
|
Lens Material |
Optical grade PC |
|
MOQ |
30pcs |
|
Lens Size |
270x75x8mm |
|
PCB Size |
2560x56x1.5mm |
|
PCB Circuit |
14 series 2 parallel |
|
Certificate |
ROHS |
|
Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
Main market |
All over the world |
Shipping and delivery time:
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB|EXW|CIF|CFR |
| Sample availability | YES, 3 days |
| Delivery time | 5-6 working days |
Parameters for AT1361 LED Constant Current driver:
- Suitable for AC100V～240V Input voltage
- Output power should be less than 36W
- Input and output is isolated
- Power factor is > 0.9
- ROHS standard
- Easy to adjust the output of constant current for led lights
- Have bared PCB , Plastic box and aluminum enclosure waterproof for choice
|
Model NO |
AT1361-36X1W |
AT1361-7X4W |
|
Rated Input voltage |
110VAC/220VAC |
|
|
Input voltage scale |
100～240VAC ,47～63Hz |
|
|
Power factor |
>0.9 |
>0.9 |
|
Efficiency |
>88% |
>84% |
|
Rated input power |
<42W |
<44W |
|
Loading input power |
<2.5W |
<2.5W |
|
Short-circuit input power |
<6W |
<6W |
|
AC Current |
<220 mA |
<220 mA |
|
Cold start surge current |
<15A |
<15A |
|
Leakage current |
<2mA |
<2mA |
|
Constant current output scale |
320±20mA 72～115V |
1280±50mA,21～25V |
|
Loading voltage |
<128V |
<32V |
|
Ripple ,noise |
1V |
1V |
|
Linear adjust |
2% |
2% |
|
Load regulation |
2% |
2% |
|
Time for starting |
<1.3S |
<1.3S |
|
Opposite for wires |
Normal working |
|
|
Low or high input voltage |
Low voltage ,no output or twinkle ;high voltage will damage the power supply |
|
|
Short-circuit or open-circuit output |
It’ll discharge sound ‘blah’ when short-circuit or open-circuit |
|
|
Overheat |
IC has protection for overheat |
|
|
Working temp & humidity |
-20℃-60℃,20-95%RH |
|
|
Storing temp ,humidity |
-25℃-80℃,20-95%RH |
|
|
MTBF |
>25000 HOURS |
|
|
Dimension ,weight |
PCB:142mm*34.5 mm*24mm ;110g Metal case waterproof 180*37*29mm 3 30g |
|
|
Input wires |
stranded cable black /PVC 0.50mm2/length 150mm; L N G/W ground wire |
|
|
Output wires |
stranded cables white/0.50mm2/length 150mm Black LED - ; RED /LED + Ground wire |
|
Advantages of New Design 28W SMD 5050 Led Street Light Components For Road Lamp:
1, Using high quality Taiwan led chips.
2, Very easy for repair/replacement.
3, Various choice : AC 100-240V Input voltage Waterproof or non-waterproof.
4, Higher lumen compared to similar models of others.
5, Positive cooling technology.
6, Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance.
7, Industry-leading thermal management utilizing technology.
8, Top quality with warranty of 2 years warranty.
9, LM80 testing reports available.
10, All models are simply installed by E26/E39/E40 mounting brackets.

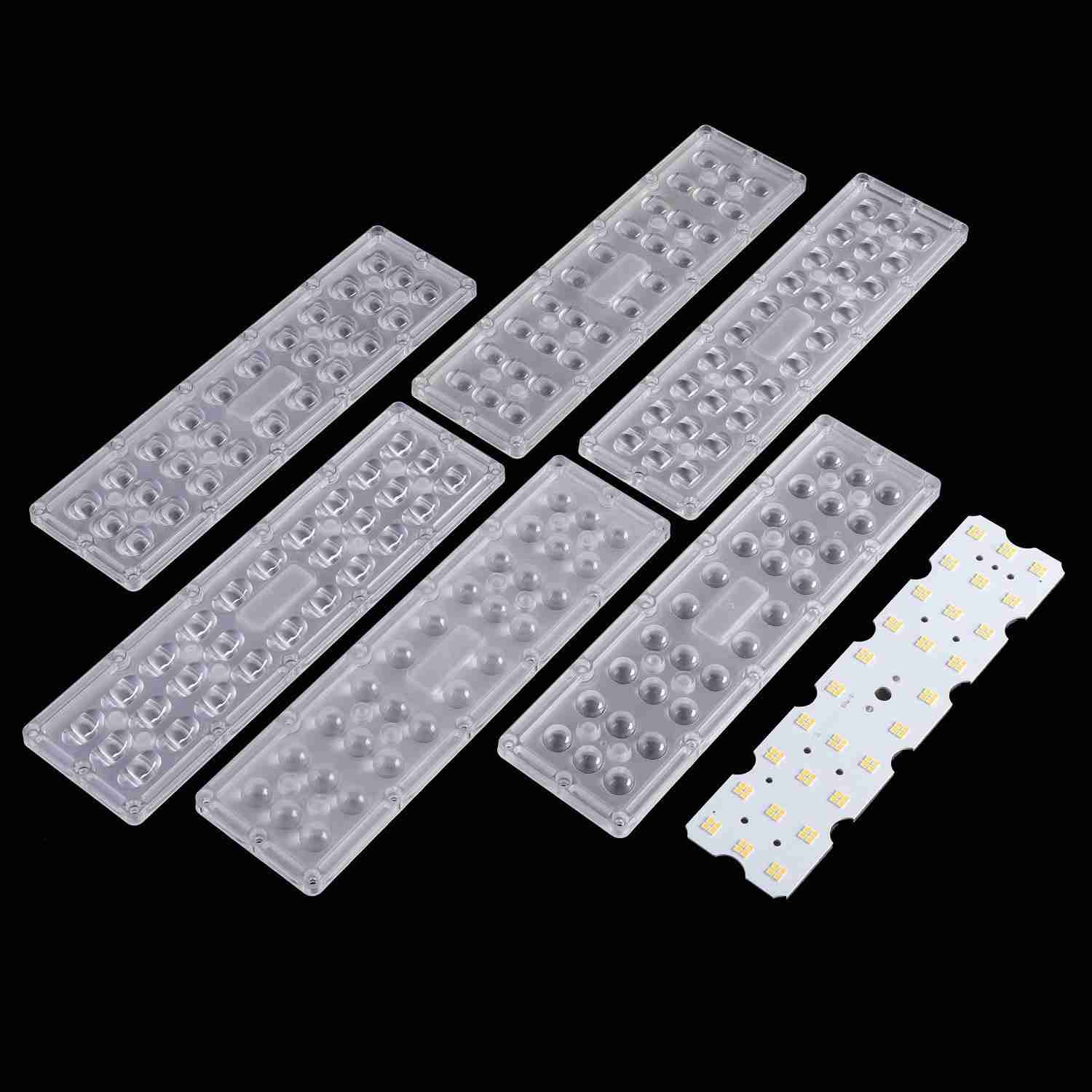

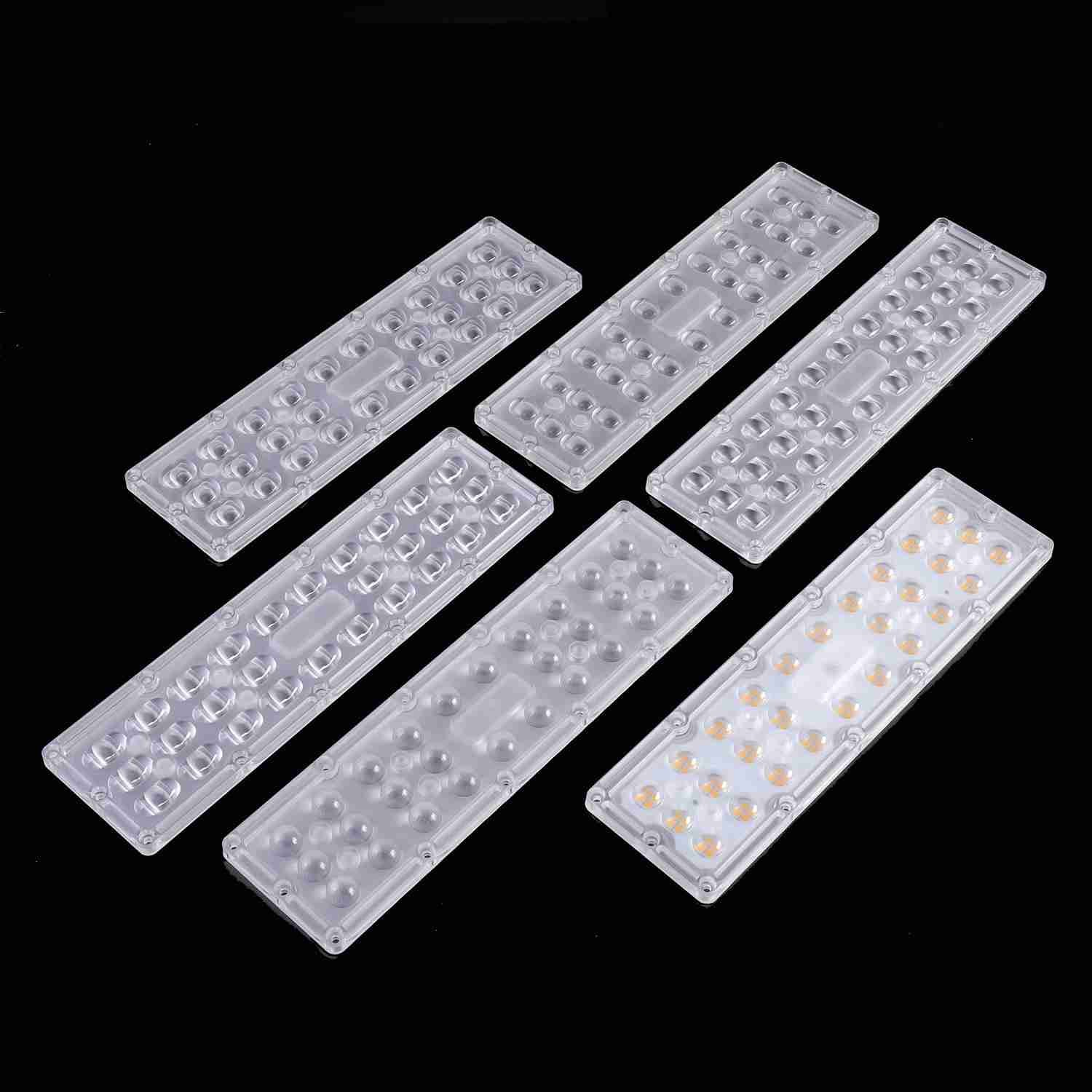

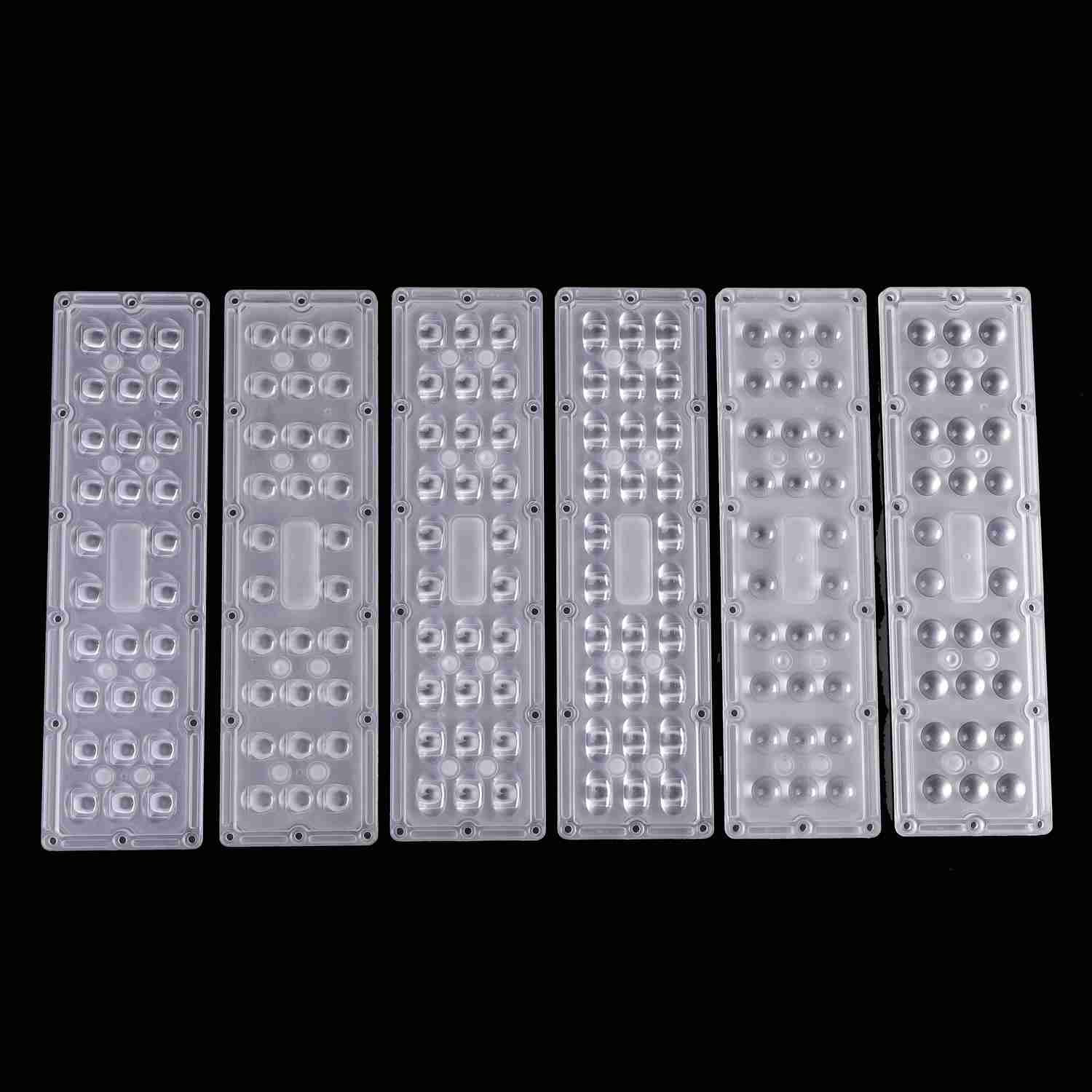

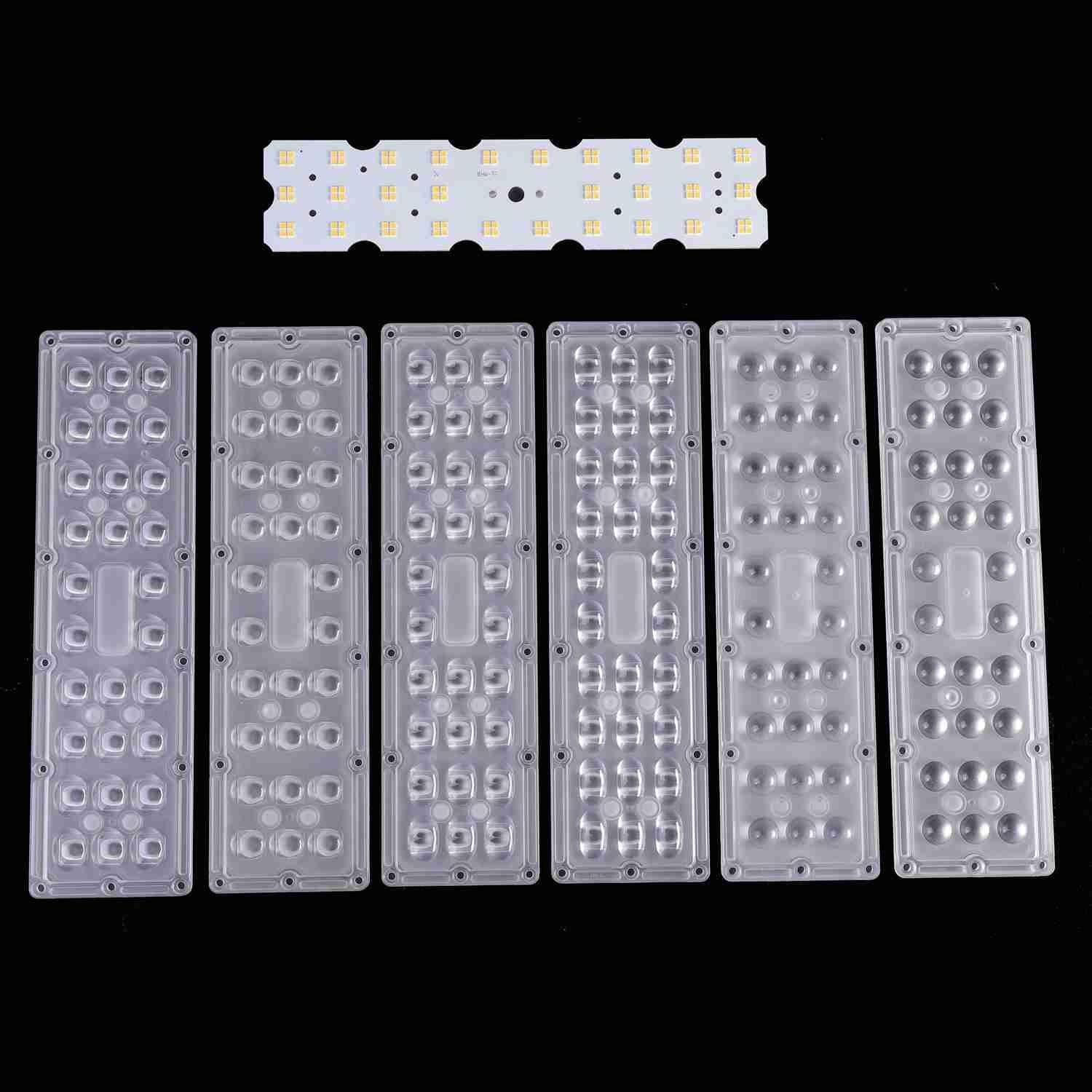

The Pictures of New Design 28W SMD 5050 Led Street Light Components For Road Lamp:
