150W High Power COB LED Bridgelux Chips 45V For High Bay Light

Quick Detail:

1.Model :SP150W
2.Forward Voltage :45V
3.Test Forward current : 3000mA
4.CT : 2900-3200K , 4000-4500K , 4500-5000K,5000-5500K,5500-6000K,6000-6500K ,7000-9000K
5.Luminous Flux : 12000-13500lm
6.RA >65
7.Reverse Voltage >18 Reverse
8.current(uA) <30 ESD Sensitivity (V) 3000
9.15 series 10 parallel

Usage: LED lighting , street light  , Floodlight etc.
Certificate: LM-80,ROHS


Description:

1. Best raw materials used in our LED production :

   1)Chip: Bridgelux or Epistar  45MIL chip;
   2) Silicon glue: USA Dowcorning (good glue has less lighting decreasing);
   3) Powder: USA Intermatix (good powder has better performance in lumens);
   4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;
   5) Led base:red/ black cooper base .
   Super high Flux output and  high Luminance  ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
   We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow etc.
   6) Accept small Order & 2 years warranty .


Specifications:





Competitive Advantage of SUNSHINEOPTO :

1. About 7 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.

Applications:

General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight

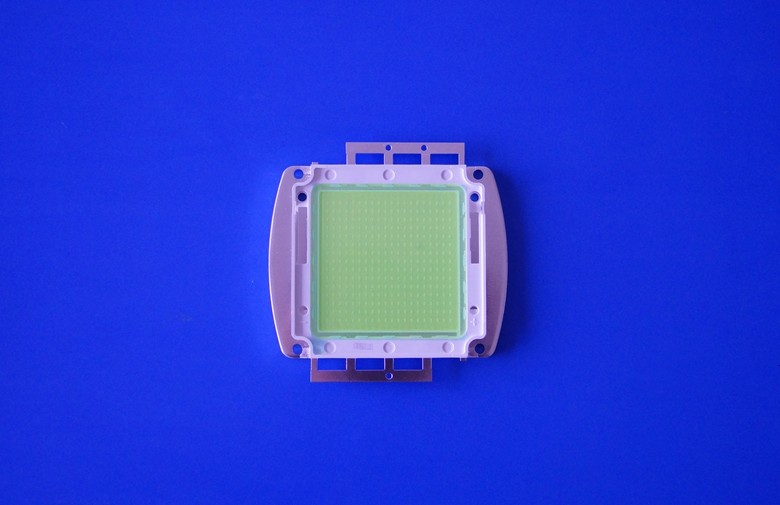

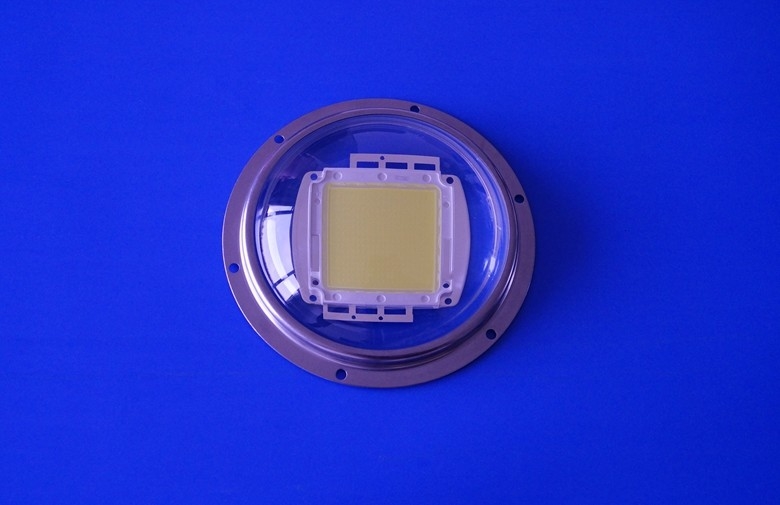

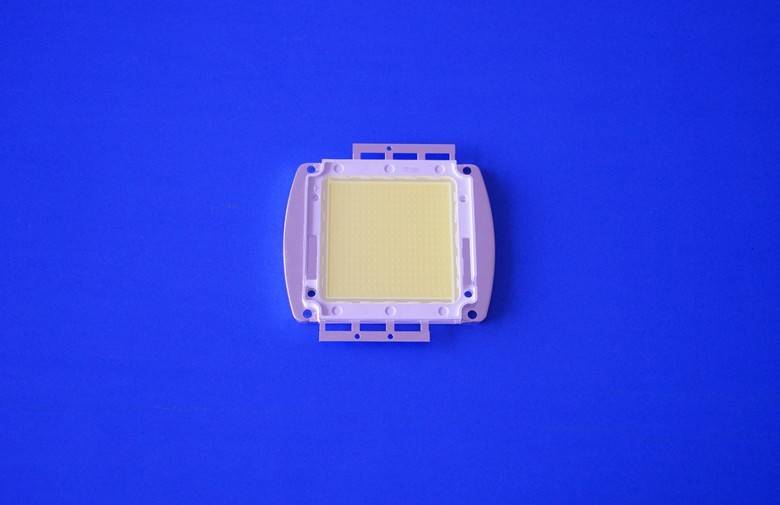

The Pictures of 150W High Power COB LED Bridgelux Chips 45V For High Bay Light
