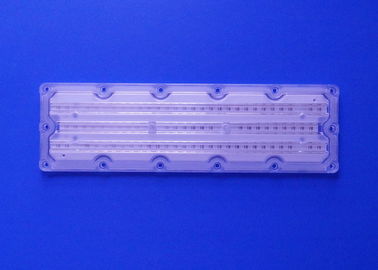

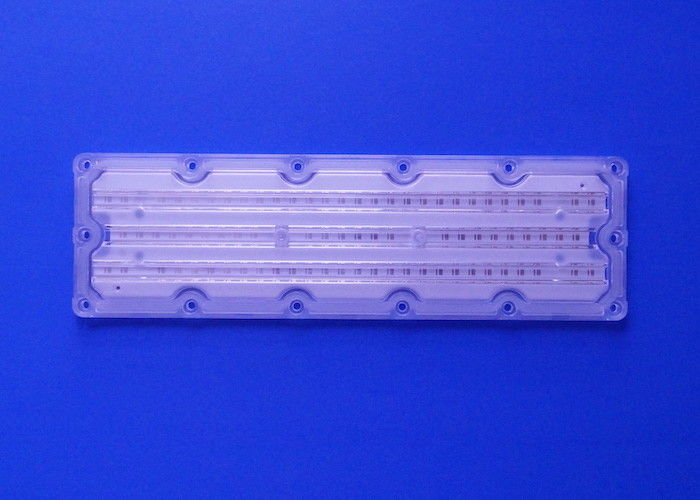

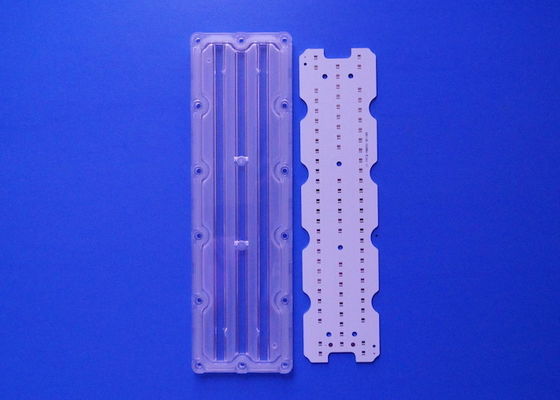

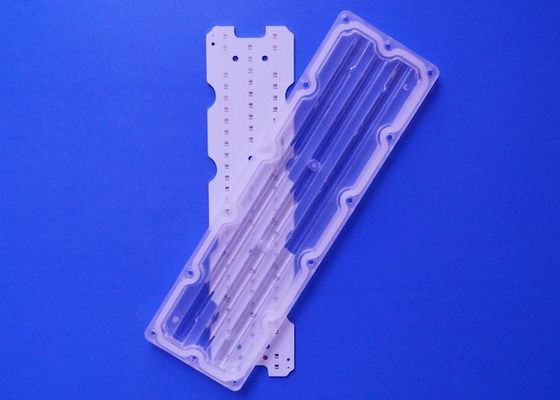

90x110 Degree 50w Linear Light Lens Module 3030SMD Board 64 Points High Light Output


90x110 degree 50w Linear light Lens module 3030SMD Board 64 points




Quick Detail:

Model No:SUN-SL64W-3030-90x110
Material: PC
Beam Angle : 90x110 Degree
Lens size:236x70mm
PCB size:219.1x53.54x1.5mm
Circuit: 8 series 8 parallel
Match LED: 5050 SMD LED
Small footprint, high light output


Features :

1. This SKD 64 LED Array lens with PCB Module is best choice to design power lamps like 40w 50w  and so on .
2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3. Industry-leading thermal management utilizing technology
4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5. The LED retrofit kits contain no any mercury or lead.
6. Does not produce UV rays that harm people’s eyes.
7. Directional light means no light pollution, dark sky compliance.
8. Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120 degree and Vertrial 80x150 degree.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.



Specifications:




Shipping and delivery time:




LENS Dimensions :

PCB board size:

Beam pattern:

90x110 degree:

 30 Degree :

 60 Degree:

90 Degree:

90x150 Degree:

80x150 Degree:
