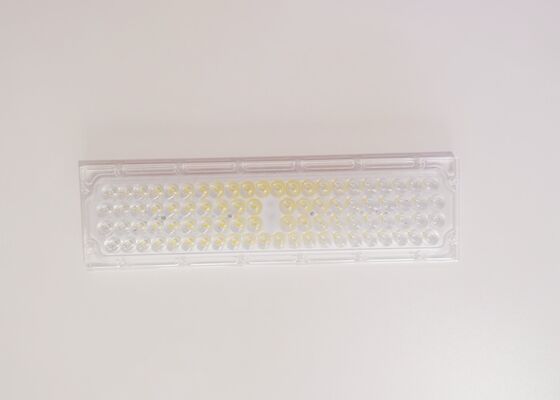

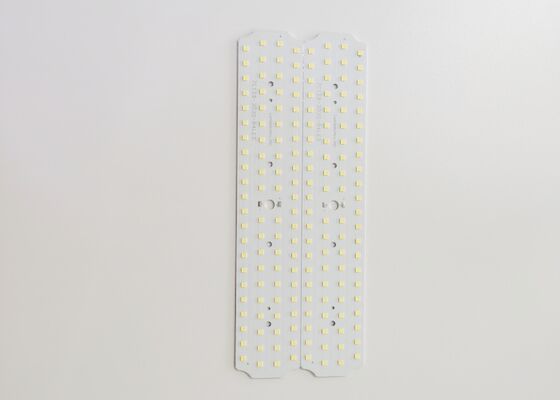

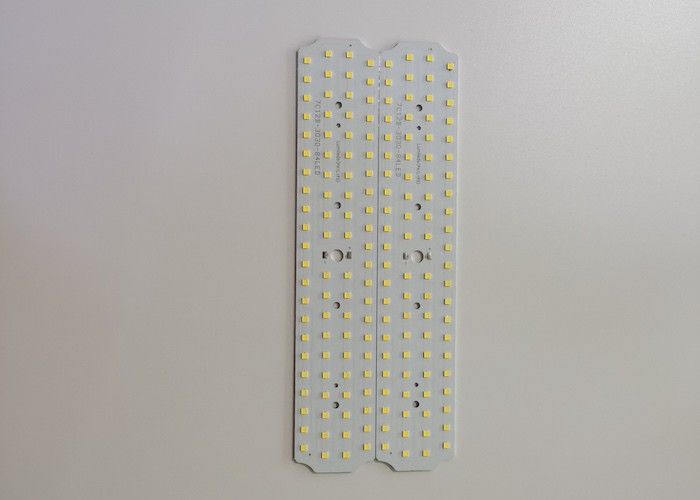

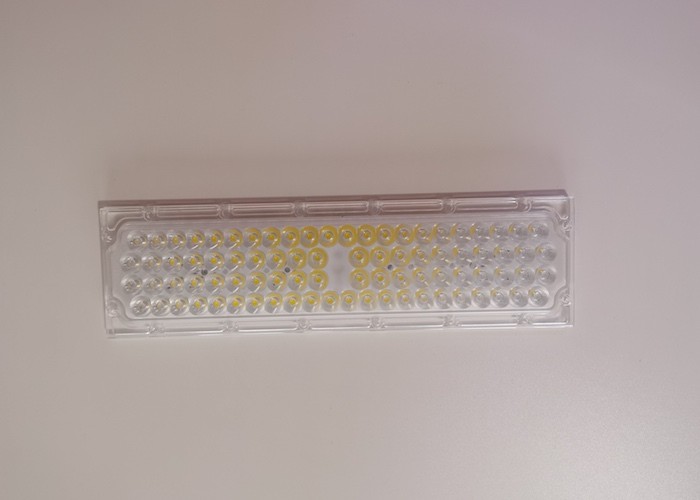

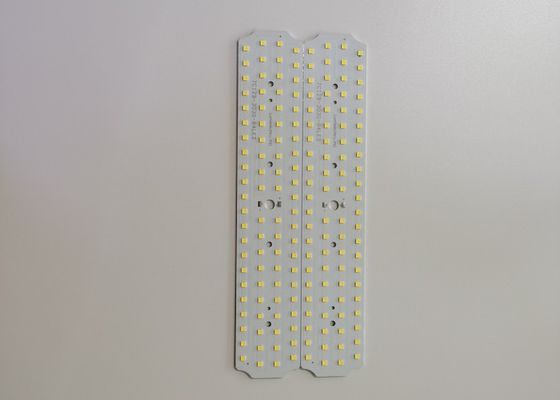

15 Degree Lens 130lm/w SMD3030 LED High Bay Module 70W

name

15 Degree Lens 130lm/w SMD3030 LED High Bay Module 70W

Brand Name:	Sunshineopto
Model Number:	SUN-D252-84H1-15-TP
MOQ:	1
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS,ROHS

Product Name:

SMD 3030 LED High Bay Light Module 50W 60W 70W Narrow Angle 15 Degree 84 In 1 Lens

Model No.:

SUN-D252-84H1-15-TP

Beam Angle:

15 Degree

LENS Size:

252x70x10.6mm

PCB Size:

239x45x1.5mm

Circuit:

7 Series 12 Parallel

LED CHIP:

1W 3030SMD LED 6v, 42v Output

Material:

Optical Grade PC

Packaging Details:

1pc/bag 0.18KG/SET

Supply Ability:

10000pcs/months

Highlight:

SMD3030 LED High Bay Module

,

130lm/w LED High Bay Module

,

70W Narrow Angle LED Lens

Product Description

SMD 3030 LED High bay light module 50W 60W 70W Narrow angle 15 degree 84 in 1 Lens

Quick Detail:

Model No.:	SUN-D252-84H1-15-TP
Power	50-70W
Lumen value	130-140lm/w
Beam angle	15 degree
Other angle for choice	40/60/90/30x70/49x21/136x78 degree , Vertical 136x78 degree lens
Circuit for board	7 series 12 parallel ( can be customized)
Size	252x70mm for lens, 239x45x1.5mm, 1.0w/m.k for board
Material for lens	PC
LED CHIP	1W Ph3030 smd 6v white color 3000-6500k

Features :

This SKD 84W LED Array lens with PCB Module is best design power lamps like 50-70w for per module.
It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

1, Product Name	SMD 3030 LED High bay light module 50W 60W 70W Narrow angle 15 degree 84 in 1 Lens
2, Model No	SUN-D252-84H1-15-TP

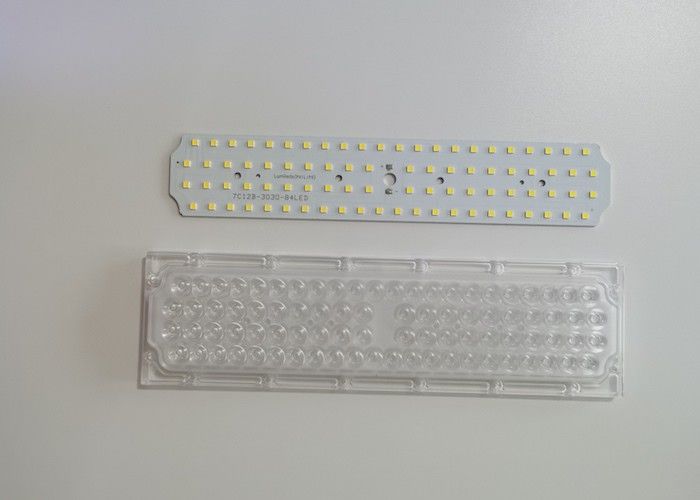

3, Main parts	Array lens, silicon gasket, PCB board with LED
4, Lens Material	PC
5, Transmittance	93%
6, Sample	3-4 work day
7, Delivery	5-7 work days for 500 sets
8, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
9, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CNF
Sample availability	YES
Delivery time	3-4 working days

Competitive Advantage:

1). Using high quality for 3030SMD LED Series.

2). CE driver, very easy for repair/replacement
3). Higher lumen compared to similar models of others
4). Positive cooling technology
5). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
6). Industry-leading thermal management utilizing technology
7). Top quality with warranty of 2 years warranty
8). LM80 testing reports available

Dimensions and Beam Pattern:

15 Degree Lens 130lm/w SMD3030 LED High Bay Module 70W 0

15 Degree Lens 130lm/w SMD3030 LED High Bay Module 70W 1

15 Degree Lens 130lm/w SMD3030 LED High Bay Module 70W 2

Test data for 84 led module:

15 Degree Lens 130lm/w SMD3030 LED High Bay Module 70W 3
