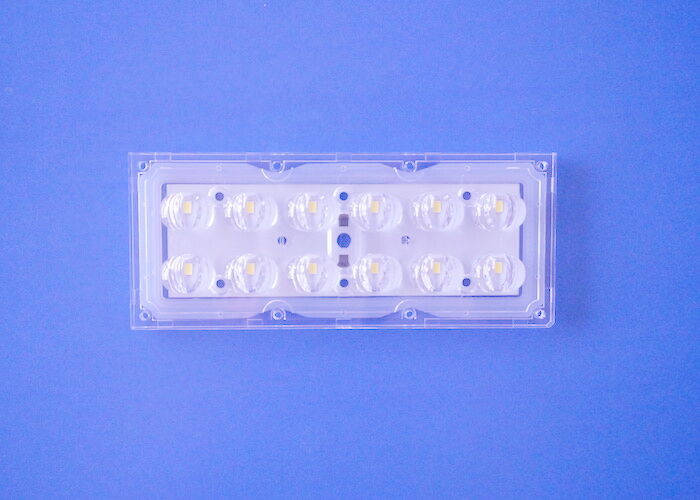

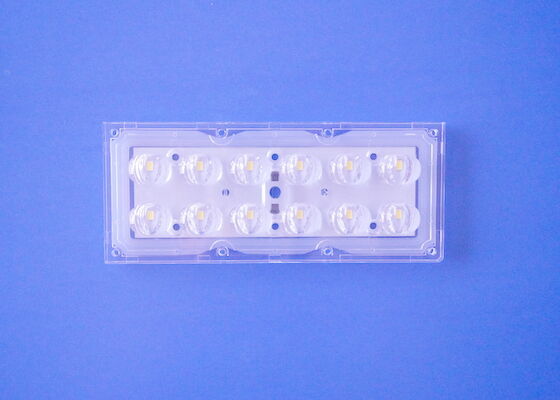

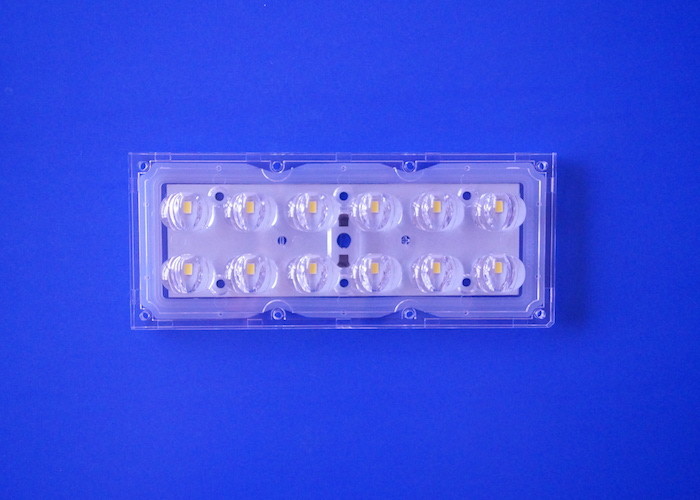

12 Points 143x70 Degree 15W SMD5050 LED Aluminum PCB Board

name

12 Points 143x70 Degree 15W SMD5050 LED Aluminum PCB Board

Brand Name:	Sunshineopto
Model Number:	SUN-LD2X6CR143X70-TPII-S-5050
MOQ:	1
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS,ROHS

Product Name:

5050SMD LED 12 Points Aluminum PCB Board With Street Light Lens 143x70 Degree 15W 20W 30W

Model No.:

SUN-LD2X6CR143X70-TPII-S-5050

Beam Angle:

143X70 Degree TYPE II-S

LENS Size:

173X71.4X6.4MM

PCB Size:

145X47X1.5mm

Circuit:

2 SERIES 6 PARALLEL / 12 LED IN PARALLEL

LED CHIP:

5050SMD LED 24V 160mA

Material:

Optical Grade PC

Packaging Details:

1pc/bag 1kg

Supply Ability:

5000pcs/months

Highlight:

SMD5050 LED Aluminum PCB Board

,

15W LED Aluminum PCB Board

,

143x70 Degree Street Light Lens Board

Product Description

5050SMD LED 12 points Aluminum PCB board with street light lens 143x70 degree 15W 20W 30W

Quick Detail:

Model No.	SUN-LD2X6CR143X70-TPII-S-5050
Power (watt)	12-30w
Angle viewing	143x70 degree
Lens size	173x71.4x6.4mm
PCB size	145X47X1.5mm
Circuit for 5050smd led	2 series 6 parallel or 12 led in parallel
LED CHIP	PH 5050 , 24V White color 3000-6500k 1-5w/pc
Output voltage	48v or 24v
Lumen value	130-160lm/w for pcb board
Lense array of 12 leds	Small footprint, high light output

Features :

This SKD 12 LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps.
It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance.

.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

1, Product Name	5050SMD LED 12 points Aluminum PCB board with street light lens 143x70 degree 15W 20W 30W
2, Model No	SUN-LD2X6CR143x70-TPII-S-5050

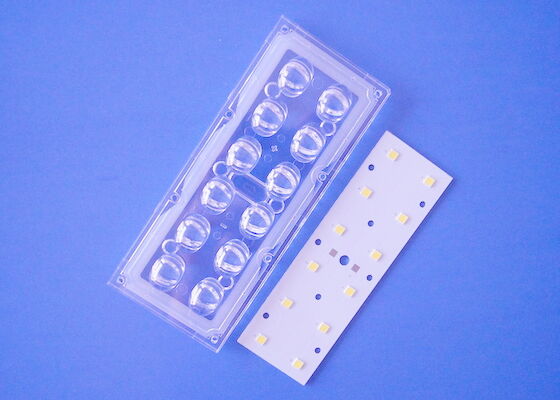

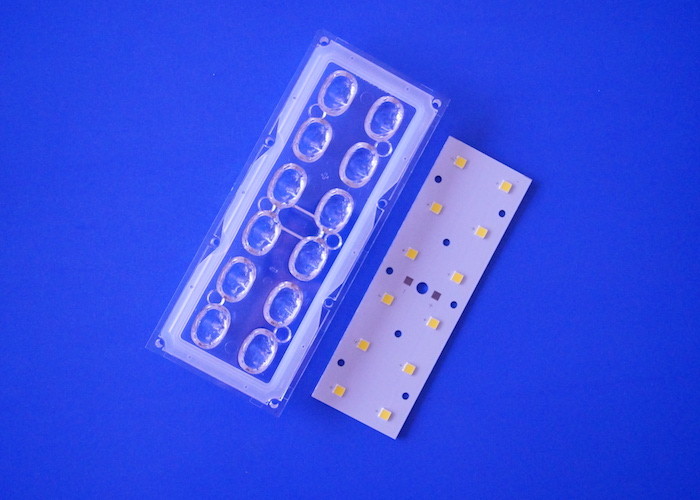

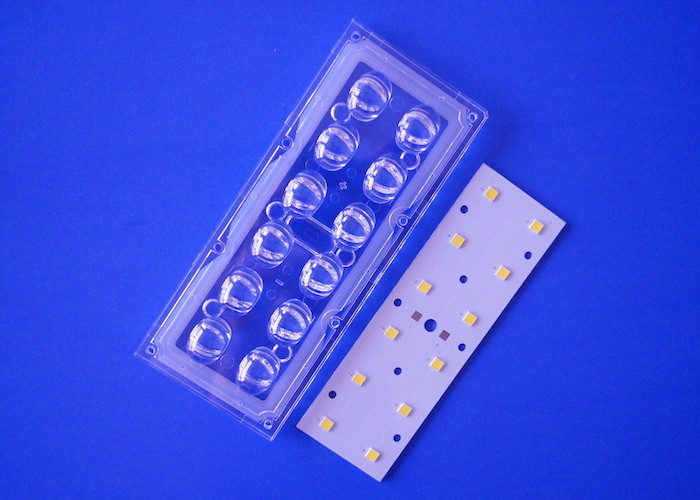

3, Main parts	12 Array lens , silicon gasket+PCB board with led
4, Lens Material	PC
5, Lens size	173X71.4X6.4mm
6, Transmittance	93%
7,LEDS	5050SMD 1-5W 24V LED
8, Sample	3-4 work day
9, Delivery	5-7 work days for 300 sets
10, Angle	143x70 degree, TYPEII-S
11.Other angle	12/30/60/90/60x60/90x90/150/145x70/157x57/143x48/141x78/135x55/145x83/160x63degree and so on
12, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
13, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample availability	YES
Delivery time	3-4 working days

2x6 LENS Dimensions And Beam pattern:

12 Points 143x70 Degree 15W SMD5050 LED Aluminum PCB Board 0

12 Points 143x70 Degree 15W SMD5050 LED Aluminum PCB Board 1

Test data:

12 Points 143x70 Degree 15W SMD5050 LED Aluminum PCB Board 2

LED module with heat sink:

12 Points 143x70 Degree 15W SMD5050 LED Aluminum PCB Board 3

12 Points 143x70 Degree 15W SMD5050 LED Aluminum PCB Board 4

Any request or question , please freely contact me by :

Yuan Hu

EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56
Whatsapp:+86-18665803783

Mobile: +86-18665803783
QQ:1831466204
Wechat:Helen1404
