Place of Origin:
Shenzhen,China
Brand Name:
Sunshineopto
Certification:
SGS,ROHS
Model Number:
SUN-LD2X6CR135X55-TPII-M-V
Contact Us
Video

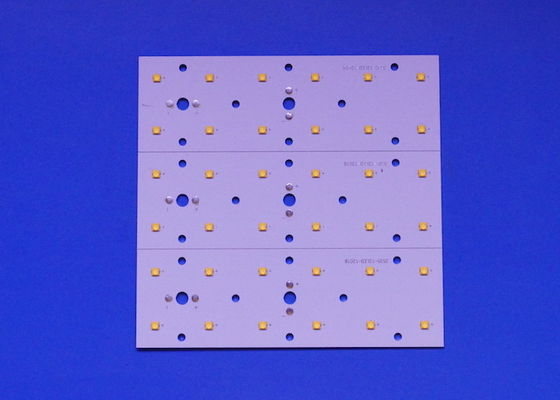

2x6 Series 173x71.4mm Module 12W 15W 20W 25W 30W XTE2 XPG3 3535 SMD Street light kits
Quick Detail:
| Model No. | SUN-LD2X6CR135X55-TPII-M-V |
| Power (watt) | 12-30w |
| Angle viewing | 135x55 degree |
| Lens size | 173x71.4x7.51mm |

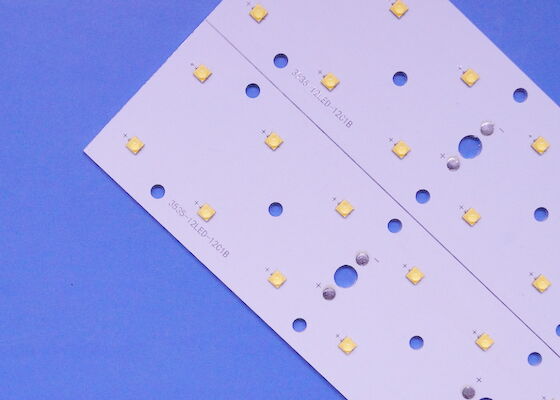

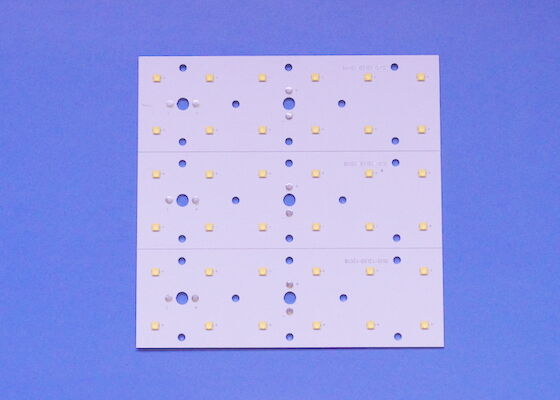

| PCB size | 145X47X1.5mm |
| Circuit for 5050smd led | 6 series 2 parallel, 12 led in series |
| LED CHIP | 3535 smd led, XPG3/XTE 1-5W |
| Output voltage | 18V or 36V |
| Lumen value | 130-150lm/w for pcb board |
Features :
.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
|
1, Product Name |
2x6 Series 173x71.4mm Module 12W 15W 20W 25W 30W XTE2 XPG3 3535 SMD Street light kits |
|
2, Model No |
SUN-LD2X6CR135X55-TPII-M-V |
|

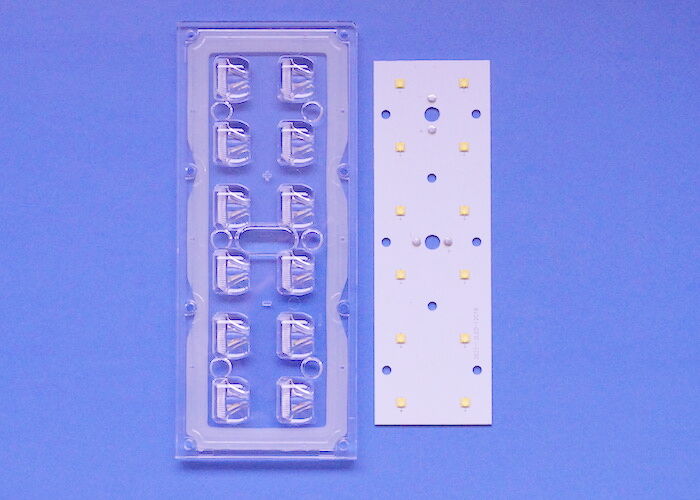

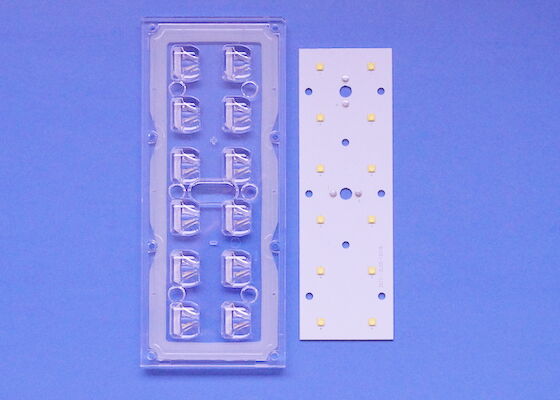

3, Main parts |
12 Array lens , silicon gasket+PCB board with led |
|
4, Lens Material |
PC |
|
5, Lens size |
173X71.4X7.51mm |
|
6, Transmittance |
93% |
|
7,LEDS |
XTE /XPG3 LED |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 300 sets |
|
10, Angle |
135X55 degree |
| 11.Other angle | 12/30/60/90/60x60/90x90/150/145x70/157x57/143x48/141x78/135x55/145x83/160x63degree and so on |
|
12, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
13, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES |
|
Delivery time |
3-4 working days |
2x6 LENS Dimensions And Beam pattern:
Test data:
173x71.4mm Series lens:
