6000-10000K 15W RGBW 5050 SMD LED Chip 615-635NM High Power Rgb Led

Name: 6000-10000K 15W RGBW 5050 SMD LED Chip 615-635NM High Power Rgb Led
Brand: Sunshine Opto-electronics Enterprise Co.,ltd
SKU: SP4X3W-5050 RGBW
Price: 158.50 USD
Availability: InStock

Brand Name:	Sunshineopto
Model Number:	SP4X3W-5050 RGBW
MOQ:	1
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS,ROHS

Product Name:

15W RGBW LED 5050 SMD CHIP R:615-635NM G:515-535NM B:450-470NM W:6000-10000K

Model No.:

SP4X3W-5050 RGBW

Light Color:

RGBW

Luminous:

R:95-130/G:220-270/B:39-57/W:240-305LM

Forward Current:

Forward Voltage:

R:1.8-2.6V G:2.8-3.6V B:2.8-3.6V W:2.8-3.6V

Wavelength:

R:615-635NM G:515-535NM B:450-470NM W:6000-10000K

Viewing Angle:

120 Degree

Package:

5050SMD LED

Manual Solding Temperature:

350 Degree +_10 Degree For 3-5 Seconds

Packaging Details:

Cartons

Supply Ability:

5000pcs/months

Highlight:

RGBW 5050 SMD LED Chip

10000K SMD LED Chip

635NM High Power Rgb Led

Product Description

15W RGBW LED 5050 SMD CHIP R:615-635NM G:515-535NM B:450-470NM W:6000-10000K Stage lamp Wall washer light

Model No.	SP4X3W-5050 RGBW
Wavelength	R:615-635NM G:515-535NM B:450-470NM W:6000-10000K
Luminous Flux	R:95-130/G:220-270/B:39-57/W:240-305LM
voltage	R:1.8-2.6V G:2.8-3.6V B:2.8-3.6V W:2.8-3.6V
Current	1A
ESD Sensitivity	2000v HBM
LED Junction temperature	125 degree
Power	15w
First lens for led	water clear, silicone , molding
High thermal conductivity ceramics	color controlled by circuit

Outline Dimensions of led - Dome Type of 50x50 smd LED:

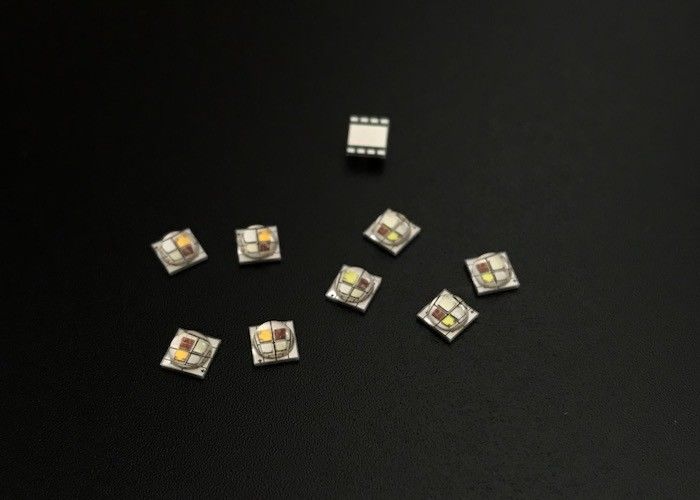

6000-10000K 15W RGBW 5050 SMD LED Chip 615-635NM High Power Rgb Led 0

Applications:

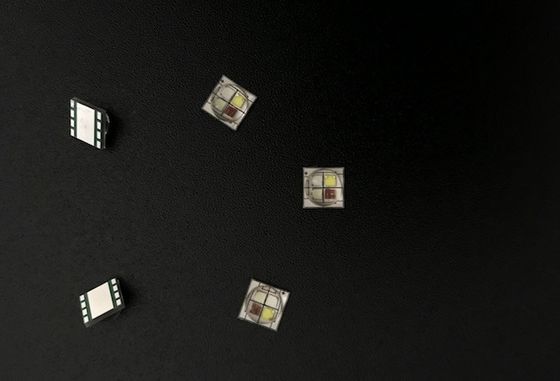

6000-10000K 15W RGBW 5050 SMD LED Chip 615-635NM High Power Rgb Led 1

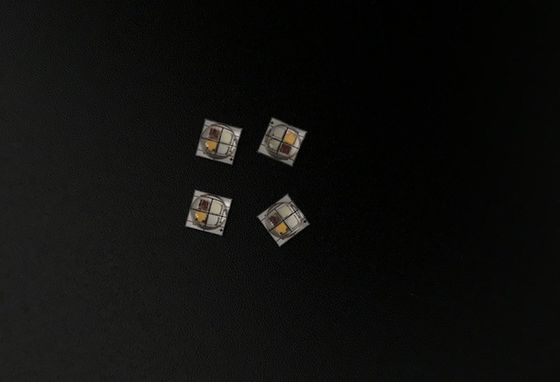

6000-10000K 15W RGBW 5050 SMD LED Chip 615-635NM High Power Rgb Led 2

Similar related led products in Green ,Blue ,Red ,warm white ,RGB :

6000-10000K 15W RGBW 5050 SMD LED Chip 615-635NM High Power Rgb Led 3

RGBA:

RGBWUV:

Instruction:

1. Reserve:

It should be reserved in dry cabinets in case of moisture. The temperature for reserve

is 25℃±3℃, and the humidity is >40% but <60%.

2. How to handle after removing the tubes:

When sticking the tin, the pasted components separated from the surface of lens may

affect lighting efficiency to cause illuminating degradation. Therefore, it must be

complied as below:

A. The time which products are bare in the air after the packing bags cannot exceed

72 hours.

B. The temperature of reserve for products which are not used out is 25℃±3℃, and

the humidity is >40% but <60%.

C. It is advised to use hand weld since lens are not endurable with high temperature.

3. Products should avoid machinery pressure and strong shake during cooling after tin is

welded.

4. Fast cooling is not allowed.

5. Weld on anamorphic pcb is not allowed.

6. Don’t touch water, il and organic liquor.

7. Current should be considered when products which are used in max. temperature.

8. The appearance and size of products can be revised without any notice.

9. Requirements for electrostatic prevention:

Wear wrist strap or static-proof glove when use products, and all the equipment,

fixtures and worktable must put to earth.

10. Must use driver with constant current.

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample availability	YES
Delivery time	3-4 working days

Why choosing us - SUNSHINEOPTO ?

1. About 11 years specializing in High Power LED

2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components

3. Strict process and quality control

4. Good raw materials used in production

5. Strong design and production capability

Any request or question , please freely contact me by :

Yuan Hu

EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56
Whatsapp:+86-18665803783

Mobile: +86-18665803783
QQ:1831466204

Wechat:Helen1404
