Wall Washer Light 5050 SMD RGBA LED Chip 10W 700mA High Power Led Chip

Wall Washer Light 5050 SMD RGBA LED Chip 10W 700mA High Power Led Chip

5050 SMD RGBA LED Chip

Wall Washer Light RGBA LED Chip

700mA High Power Led Chip

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SP10W-5050 RGBA

Contact Us

Request A Quote
Product Details
Product Name:
4 IN 1 LED Stage Lamp Wall Washer Light LED 5050 SMD RGBA CHIP 10W
Model No.:
SP10W-5050 RGBA
Light Color:
RGBA
Luminous:
R:95-122, G:210-260, B:35-51,A:50-67LM
Forward Current:
700mA
Forward Voltage:
R:1.8-2.6V G:2.8-3.8V B:2.8-3.8V A:1.8-2.8V
Wavelength:
R:620-635NM G:520-535NM B:450-465NM A:585-605NM
Viewing Angle:
120 Degree
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description



4 IN 1 LED Stage lamp Wall washer light LED 5050 SMD RGBA CHIP 10W







Model No. SP10W-5050 RGBW
Wavelength R:620-635NM G:520-535NM B:450-465NM A:585-605NM
Luminous Flux R:95-122, G:210-260, B:35-51,A:50-67LM
voltage R:1.8-2.6V G:2.8-3.8V B:2.8-3.8V A:1.8-2.8V
Current 700MA
ESD Sensitivity 2000v HBM
LED Junction temperature 125 degree
Power 10w
First lens for led water clear, silicone , molding
High thermal conductivity ceramics  color controlled by circuit



Outline Dimensions of led - Dome Type of 50x50 smd LED:

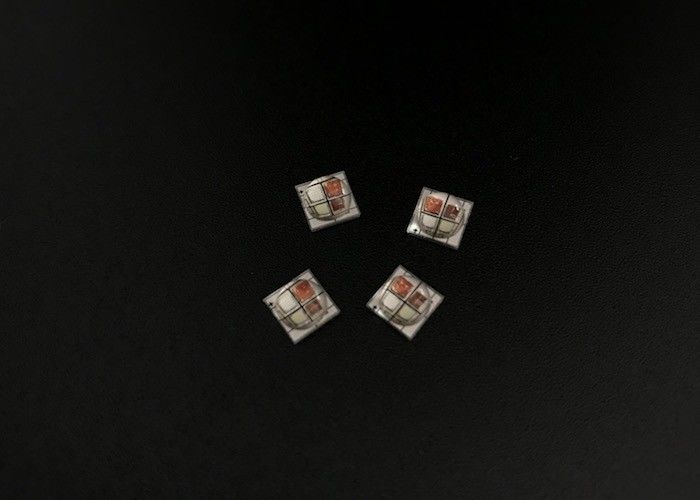

Wall Washer Light 5050 SMD RGBA LED Chip 10W 700mA High Power Led Chip 0

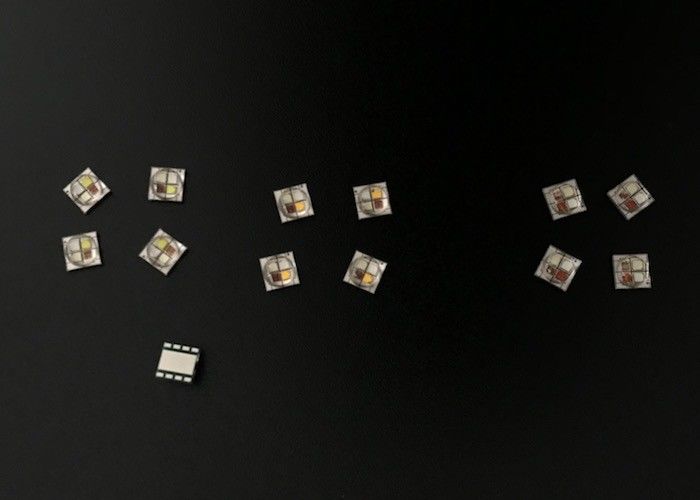

Wall Washer Light 5050 SMD RGBA LED Chip 10W 700mA High Power Led Chip 1



Applications:

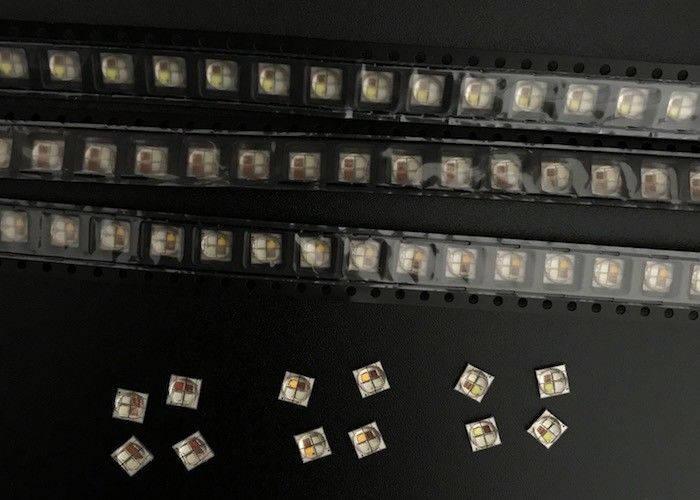

Wall Washer Light 5050 SMD RGBA LED Chip 10W 700mA High Power Led Chip 2

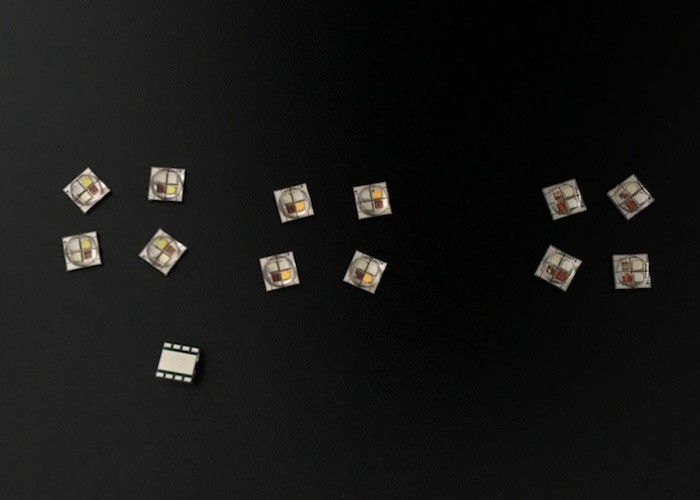

Wall Washer Light 5050 SMD RGBA LED Chip 10W 700mA High Power Led Chip 3



RGBW:



Wall Washer Light 5050 SMD RGBA LED Chip 10W 700mA High Power Led Chip 4



RGBWUV:



Wall Washer Light 5050 SMD RGBA LED Chip 10W 700mA High Power Led Chip 5



Instruction:





1. Reserve:
It should be reserved in dry cabinets in case of moisture. The temperature for reserve
is 25±3, and the humidity is >40% but <60%.
2. How to handle after removing the tubes:
When sticking the tin, the pasted components separated from the surface of lens may
affect lighting efficiency to cause illuminating degradation. Therefore, it must be
complied as below:
A. The time which products are bare in the air after the packing bags cannot exceed
72 hours.
B. The temperature of reserve for products which are not used out is 25±3, and
the humidity is >40% but <60%.
C. It is advised to use hand weld since lens are not endurable with high temperature.
3. Products should avoid machinery pressure and strong shake during cooling after tin is
welded.
4. Fast cooling is not allowed.
5. Weld on anamorphic pcb is not allowed.
6. Don’t touch water, il and organic liquor.
7. Current should be considered when products which are used in max. temperature.
8. The appearance and size of products can be revised without any notice.
9. Requirements for electrostatic prevention:
Wear wrist strap or static-proof glove when use products, and all the equipment,
fixtures and worktable must put to earth.
10. Must use driver with constant current.


Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days
