LED Street Light Lens

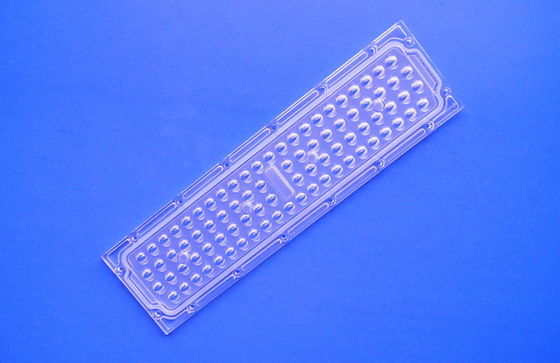

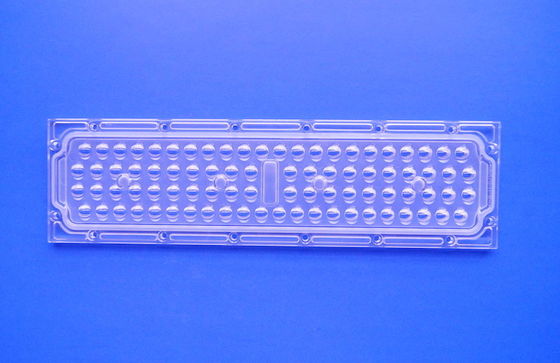

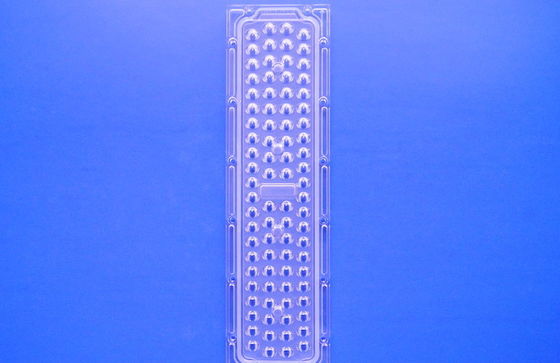

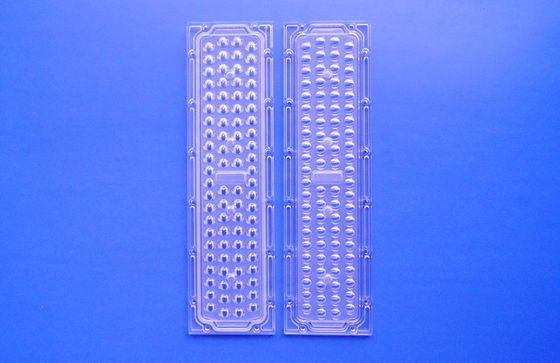

84 IN 1 136x78 degree Vertical Angle and Optical Grade PC Material LED Lens with silicon gasket

All Category

LED Street Light Retrofit Kits

Constant Current LED Power Supply

LED Glass Lens

Miss. Nancy

alina@sunshineopto.com

+86 13923466490

Contact Now

84 IN 1 136x78 degree Vertical Angle and Optical Grade PC Material LED Lens with silicon gasket

Brand Name:	Sunshineopto
Model Number:	SUN-D252-84H1-136x78-TPII-S-H
MOQ:	100
Price:	negotiate
Packaging Details:	Cartons
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS,RoHS,CE

Product Name:

84 IN 1 136x78 Degree Vertical Angle And Optical Grade PC Material LED Lens With Silicon Gasket

Model No.:

SUN-D252-84H1-136x78-TPII-S-H

PCB Size:

226x57.9x1.5mm

Lens Dimension:

252x70x6.3mm

PCB Circuit:

6 Series 14 Parallel

Lens Angle:

136x78 Degree

Transmittance:

Lens Material:

Optical Grade PC

Supply Ability:

10000pcs/months

Highlight:

Vertical Angle Led Street Light Lens

14 Parallel Led Street Light Lens

160lm/W LED Lens Module

Product Description

84 IN 1 136x78 degree Vertical Angle and Optical Grade PC Material LED Lens with silicon gasket

This high-performance LED module features advanced optical design for superior street lighting applications with excellent luminous efficiency.

Product Overview

The 84-in-1 136x78 Degree Vertical Angle LED Lens, crafted from optical grade PC material, is designed to provide precise and efficient light distribution for various lighting applications. With its 136x78 degree beam angle and silicon gasket, this LED lens ensures superior performance and long-lasting durability, making it ideal for outdoor lighting, commercial lighting, and high-intensity applications.This lens is engineered for use in SMD LED modules and provides uniform light distribution, ensuring optimum brightness and enhanced energy efficiency. The silicon gasket ensures a perfect seal, providing weatherproof capabilities for outdoor lighting systems that require high protection against environmental factors.Ideal for clients in lighting design and manufacturing, this LED lens module provides a reliable solution for large-scale lighting projects in both indoor and outdoor environments. Whether you're lighting street lamps, floodlights, or security lights, this lens guarantees efficient light distribution, enhancing the overall lighting quality and reducing energy consumption.

Product Features

Custom lens and board design available according to specific requirements
Optical Grade PC Material for High Durability and Clarity

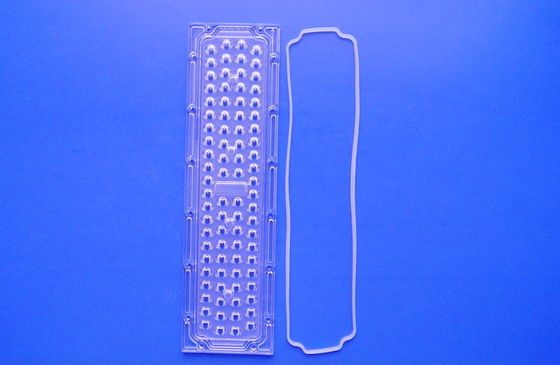

Silicon Gasket for Weatherproof Sealing
SKD 84 LED array lens with PCB module using PH3030 LEDs, optimized for 50W power lamps
Lowest total cost solution for replacing Metal Halide or HPS bulbs while reusing existing housings

Technical Specifications

Product Name	50W LED Street Light Module SMD 3030 LED Lens PC Material
Model No	SUN-D252-84H1-136x78-TPII-S-H
Main Components	Array lens, silicon gasket
Lens Material	PC (Polycarbonate)
Lens Size	252 × 70 × 6.3 mm
Transmittance	91%
Beam Angle	136 × 78 degree
Quality Guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main Markets	Europe, South America, North America, Asia

Lens Dimensions Drawing

LED Test Report

Parameter	SUN-D252-84H1 (25W)	SUN-D252-84H1 (40W)	SUN-D252-84H1 (50W)	SUN-D252-84H1 (60W)
Model No.	SUN-D252-84H1	SUN-D252-84H1	SUN-D252-84H1	SUN-D252-84H1
Power (W)	25	40	50	60
Voltage (Vf/V)	39.44	40.98	41.74	42.53
Current (If/mA)	628	998.4	1198.3	1398.5
Color Temp Tc(K)	4000	4000	4000	4000
Efficiency (lm/W)	166.1	155.25	150.23	144.91
Luminous Flux (φv/lm)	4119	6352	7514	8619
Color Index (Ra)	>70	>70	>70	>70
Lens beam angle	15/40/60/90/30x70/49x21/136x78/136x78 vertical degree	15/40/60/90/30x70/49x21/136x78/136x78 vertical degree	15/40/60/90/30x70/49x21/136x78/136x78 vertical degree	15/40/60/90/30x70/49x21/136x78/136x78 vertical degree
Wick	84pcs PH 3030 2D leds	84pcs PH 3030 2D leds	84pcs PH 3030 2D leds	84pcs PH 3030 2D leds
Protection level	IP66	IP66	IP66	IP66
Working temperature (℃)	-80	-80	-80	-80
Storage temperature (℃)	-95	-95	-95	-95
Server Life (H)	50000	50000	50000	50000

Shipping & Delivery

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB/EXW/CIF/CFR
Sample Availability	YES
Standard Delivery Time	3-4 working days

Applications

Street lighting, highway LED lamps, tunnel lamps, square lighting, road lamps, city lighting, parking spot illumination, track lighting fixtures, scenic areas, retail lighting, and other applications requiring high luminous flux output.
