56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize

56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize
56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize 56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize 56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize 56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize 56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize

Large Image :  56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: ROHS,LM-80
Model Number: L56W
Payment & Shipping Terms:
Minimum Order Quantity: 30PCS
Price: Need to negotiate
Delivery Time: 7-10 work days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 100pcs for one week
Detailed Product Description

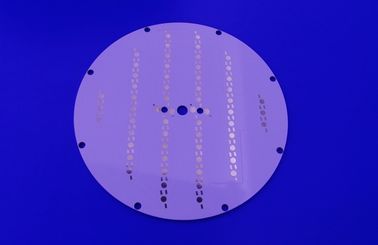

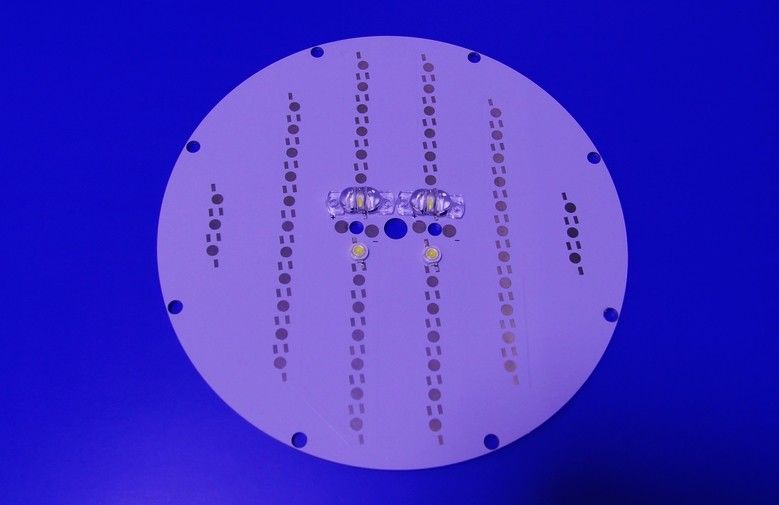

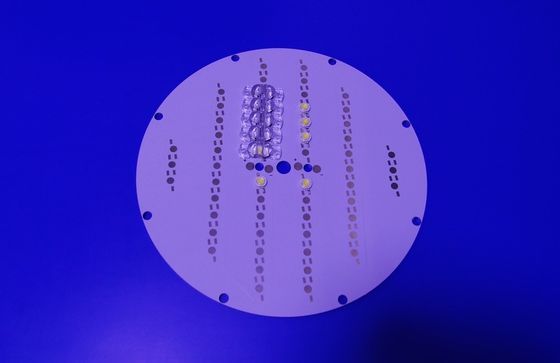

Product Name: 56W LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize PCB Size: Diameter 203.2mm Thickness 3.0mm
Forward Voltage For Single LED: 3.0-3.6v Forward Current For Single LED: 350ma
Lens Size: 29.9*10.8*9.48mm Lens Beam Angle: 120x45degrss
Lens Material: PMMA Led Chip: Bridge Lux Chip Or Epistar Chip 45mil
High Light:

led light pcb

,

cree led pcb

56W LED PCB Board mounting Bridgelux chips leds DIY Customerize



Quick Detail:



1. Model : L56W

2. Diameter of PCB : 203.2mm

3. Thickness : 3.0mm

4. LED chip : 45mil Bridgelux chip ,120-130lm/watt

5. CCT : 2900-3200,4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-6500K,7000-9000k.

6. Forward voltage for single LED : 3.0-3.6v.

7. Forward current for single LED : 350ma.

8. View angle for LED : 120degree

9. View angle for LENS : 120*45 degree.

10. Dimension for LENS : 29.9*10.8*9.48mm .





Description:



  1. Best raw materials used in our LED production : 1)Chip: Bridge lux chip or Epistar 45MIL chip; 2) Silicon glue: USA Dow corning (good glue has less lighting decreasing); 3) Powder: USA Intermatix (good powder has better performance in lumens);4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;5) Led base:red/ black cooper base (for better thermal conductive/ disspation) .
  2. Super high Flux output and  high Luminance  ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
  3. We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow .etc.
  4. Accept the small order and 2 years warranty .





Applications:



General Illumination

- Outdoor & Indoor architectural lighting

- Decorative lighting

- Flood lighting,cast light lamps

- Street lamp,Tunnel lamp





Specifications:



Product Name

56W LED PCB Board mounting Bridgelux chips leds DIY Customerize

Model No

L56W

Finishing

Reflow soldering

Material

Bridge lux chip or Epistar chip 45mil

MOQ

30pcs

Size

Diameter of 203.2mm,thickness of 3.0mm .

Package

0.38kg/pc

Sample

3-5 work days

Delivery

7-10 work days

Certificate

ROHS

Quality guarantee

2 years warranty

 Main market

Europe, America,Asia





Shipping and delivery time:



DHL

4-5 work days

UPS

4-5 work days

EMS

7-15 work days

Fed Ex/TNT

3-5 work days

HK Post Air Mail Register

10-18 work ing days

Delivery time

7-10 working days





Competitive Advantage:



1.One Stop Service for LED Solutions , 6 years specializing in High Power LED industry;

2.Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;

3.Strict process and quality control;

4.Good raw materials used in production.

5. Strong design with OEM service and production capability
