Place of Origin:
Shenzhen,China
Brand Name:
Sunshineopto
Certification:
ROHS
Model Number:
SUN-L65X135CR810
Contact Us

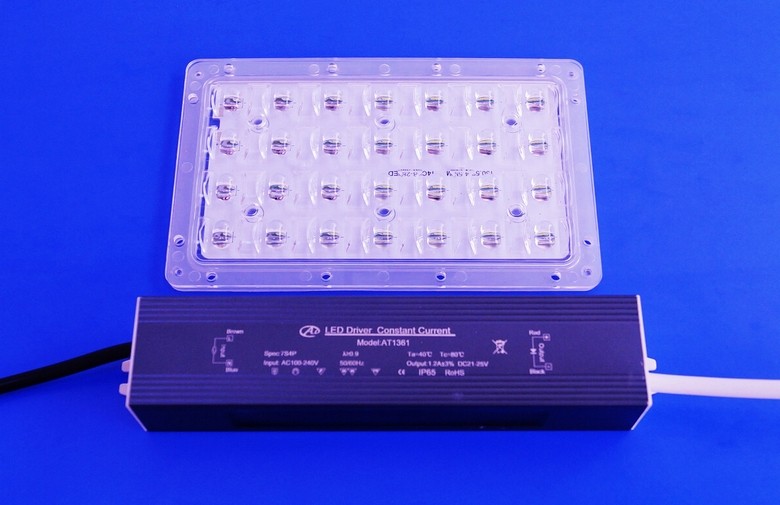

28W Xpe Led Street Light Retrofit Kits for Retrofit 100W HPS Lamp
Quick Detail:

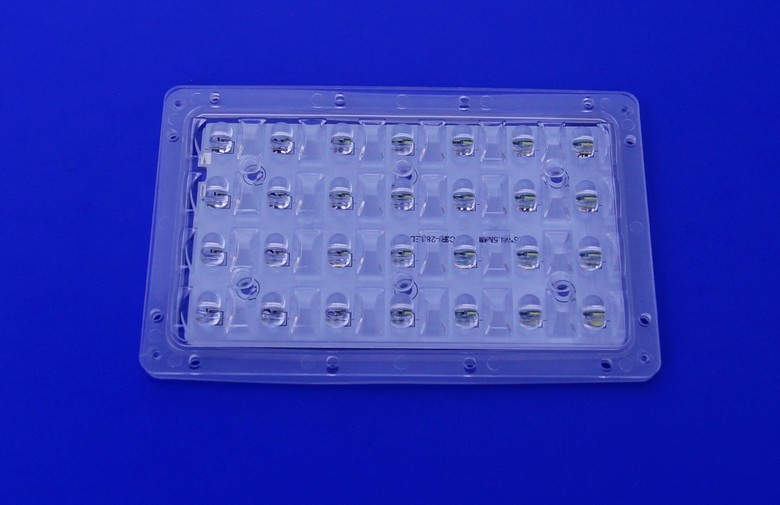

Lens Material: PC optical
Lens Beam Angle :70x140degree
Lens size:152.3x95.7x5.88mm
Led chips:XPE|XPG|XPC,REBEL
LED Driver size :180x39x30mm
PCB Mounting 28x1W Led chips XPE 122LM/WATT 5700-6300K
PCB Circuit : 14 series 2 parallel
Accessory: Lens + Silicone gasket + AL PCB mounting leds +Waterproof led constant driver
Model No:SUN-L65X135CR810FULL
Driver Model : AT1361-14S2P
Retrofit Solution :
How do SKD LED street light components retrofit kits replace MH or HPS Lamps ?
1). 30W LED retrofit kits can replace 100W Metal Halide or HPS bulbs.
2). 110W LED retrofit kits can replace 400W Metal Halide or HPS bulbs
3). 200W LED retrofit kits can replace 600W Metal Halide or HPS bulbs.
4). Use E40/E39/E26/E27 brackets to mount the retrofit kits to to the traditional light housings
Features :
1.This SKD 28W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 56W,112W,168W and so on .
2.It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3.Industry-leading thermal management utilizing technology
4.The LED retrofit kits contain no any mercury or lead.
5.Directional light means no light pollution, dark sky compliance.
6. Optic lenses are available for projects that need smaller beam angles, like 90x120°, 140x70°,120x60°, 90x126°,60x60° etc.
Specifications:
|
Product Name |
28W Xpe Led Street Light Retrofit Kits for Retrofit 250W HPS Lamp |
|
Model No |
SUN-L65X135CR810 |
|
Main parts |
28W Lens+ Silicone gasket + AL PCB mounting leds +Waterproof led constant driver |
|
Lens Material |
PCPMMA Optical |
|
MOQ |
30pcs |
|
Lens size |
152.3X95.7X5.88mm |
|
PCB Size |
132x75mm |
|
PCB Circuit |
14 series 2 parallel |
|
Certificate |
ROHS, CE |
|
Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
Main market |
Europe, South America,North America, Asia |
Parameters for AT1361 LED Constant Current driver :
|
Model NO. |
AT1361-24X1W |
AT1361-12X3W
|
|
Rated Input voltage |
110VAC/220VAC |
|
|
Input voltage scale |
100～240VAC ,47～63Hz |
|
|
Power factor |
>0.9 |
>0.9 |
|
Efficiency |
>87% |
>85% |
|
Rated input power |
<28W |
<43W |
|
Loading input power |
<2.5W |
<2.5W |
|
Short-circuit input power |
<5W |
<6W |
|
AC Current |
<140 mA |
<220 mA |
|
Cold start surge current |
<15A |
<15A |
|
Leakage current |
<2mA |
<2mA |
|
Constant current output scale |
320±20mA,48～77V |
960±50mA,24～38V |
|
Loading voltage |
<90V |
<48V |
|
Ripple ,noise |
3V |
1V |
|
Linear adjust |
2% |
2% |
|
Load regulation |
2% |
2% |
|
Time for starting |
<1.3S |
<1.3S |
Competitive Advantage:
1). Using high quality USA XPE/XPG chips
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8).Top quality with warranty of 2 years warranty
9).LM80 testing reports available
10)All models are simply installed by E26/E39/E40 mounting brackets.
Application :
It is used in the street light, high way led lamp, tunnel lamp, square lamp, road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
