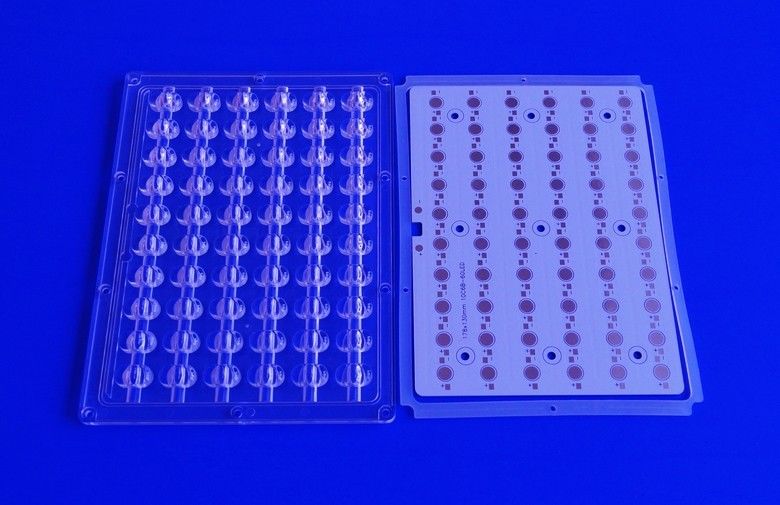

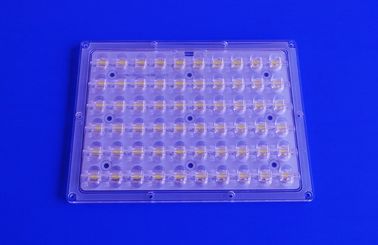

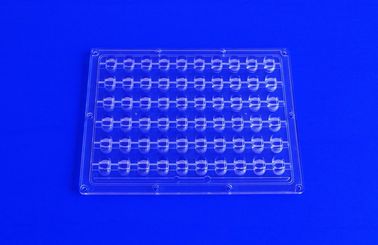

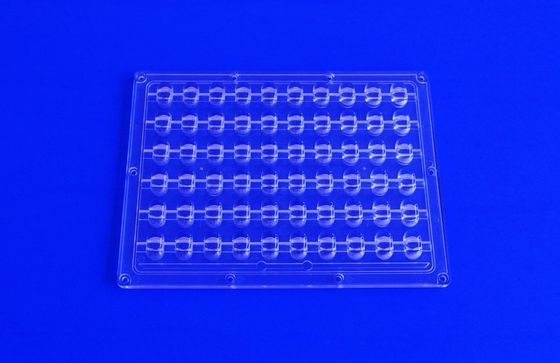

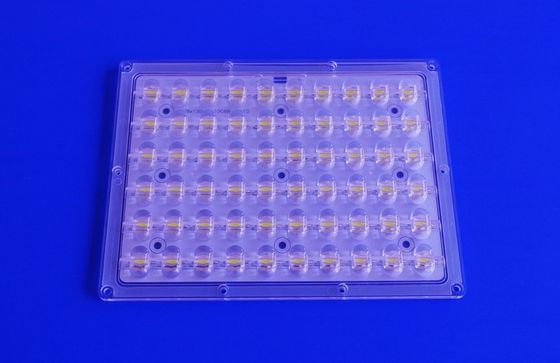

PC Led Lens , Led Street Light Components For 60W Road Lighting
Quick Detail:
1. 60W Lens Material: optical PC
2. Lens Beam Angle :60x120degree
3. Lens size:200x150x11.65mm
4. Led chips:Bridgelux|Edison
5. Certification:ROHS
6.Model No:SUN-L60X120ED803
Description:
How do SKD LED street light components retrofit kits replace MH or HPS Lamps ?
1). 30W LED retrofit kits can replace 100W Metal Halide or HPS bulbs.
2). 68W LED retrofit kits can replace 250W Metal Halide or HPS bulbs.
3). 110W LED retrofit kits can replace 400W Metal Halide or HPS bulbs.
4). Use E40/E39/E26/E27 brackets to mount the retrofit kits to to the traditional light housings
Features :
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
Specifications:
|
Product Name |
PC Led Lens , Led Street Light Components For 60W Road Lighting |
|
Model No |
SUN-L60x120ED803 |
|
Lens Material |
PC Optical |
|
MOQ |
30pcs |
|
Lens size |
200x150x11.65mm |
|
Certificate |
ROHS,CE |
|
Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES, 3 days |
|
Delivery time |
5-6 working days |
Parameters for AT1751 LED Constant Current driver :
Suitable for AC176V～265V Input voltage
Output power should be less than 75W
Input and output is isolated
Power factor is > 0.9
ROHS standard
Specification:
|
Model NO. |
AT1751-10XP7W-MP |
|
|
Rated Input voltage |
220VAC |
|
|
Input voltage scale |
176～265VAC ,47～63Hz |
|
|
Power factor |
>0.9 |
|
|
Efficiency |
>86% |
|
|
Rated input power |
<93W |
|
|
Loading input power |
<3.5W |
|
|
Short-circuit input power |
<11W (output <5S) |
|
|
AC Current |
<590 mA |
|
|
Cold start surge current |
<40A |
|
|
Leakage current |
<5mA |
|
|
Constant current output scale |
2200±50mA,30～36V |
|
|
Loading voltage |
<59V |
|
|
Ripple ,noise |
2V |
|
|
Linear adjust |
1% |
|
|
Load regulation |
1% |
|
|
Time for starting |
<1.3S |
|
|
Opposite for wires |
Normal working |
|
|
Low or high input voltage |
Low voltage no output or twinkle ;high voltage will damage the power supply |
|
|
Overheat |
IC has protection for overheat |
|
|
Working temp & humidity |
-20℃-60℃,20-95%RH |
|
|
Storing temp ,humidity |
-25℃-80℃,20-95%RH |
|
|
RoHS |
YES |
|
|
MTBF |
>25000 HOURS |
|
|
Dimension ,weight |
MP: 165*61*40MM 600G |
|
|
Input wires:
|
stranded PVC cable L,N,Y/G 0.5mm2 ;150mm |
|
|
Output wires |
stranded cables BLACK LED - ; RED /LED + 0.5mm2 150mm |
|
Competitive Advantage:
Advantages of skd LED street light components:
1). Using high quality USA Bridgelux chips
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
6). Industry-leading thermal management utilizing technology
7). Top quality with warranty of 2 years warranty
8). All models are simply installed by E26/E39/E40 mounting brackets.
