60W Led Street Light Components LED Retrofit Kits For Street Lighting Replacement

60W Led Street Light Components LED Retrofit Kits For Street Lighting Replacement

led street light fixtures

led light components parts

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

ROHS

Model Number:

SUN-L60X120ED803

Contact Us

Request A Quote
Product Details
Product Name:
60W Led Street Light Components LED Retrofit Kits For Street Lighting Replacement
Material:
PC
Beam Angle:
60x120degree
Lens Size:
200x150x11.65mm
PCB Size:
179x130mm
PCB Circuit:
10 Series 6 Parallel
Payment & Shipping Terms
Minimum Order Quantity
30
Packaging Details
20pcs lens /parcel 32x18x12cm/2.5kgs
Delivery Time
5-6 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

60W Led Street Light Components LED Retrofit Kits For Street Lighting Replacement





Quick Detail:

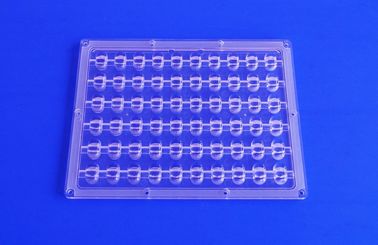

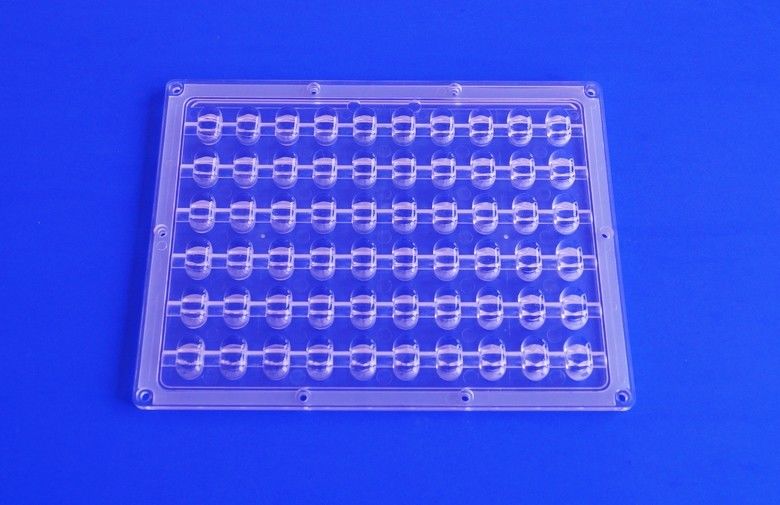

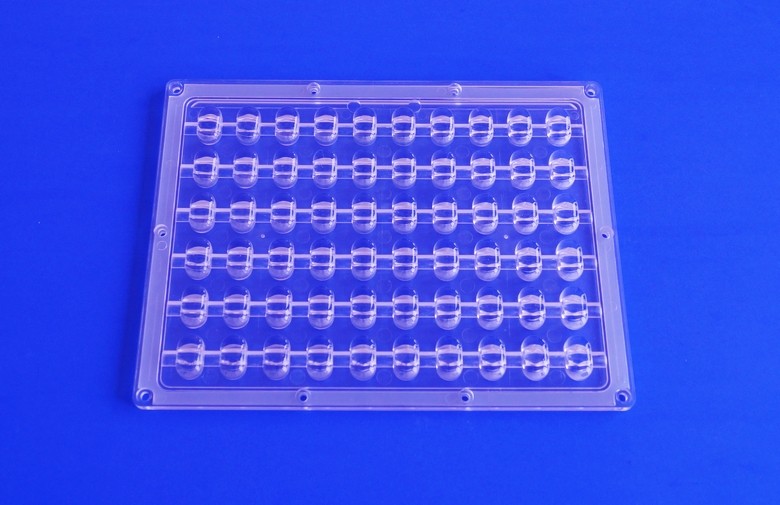

1. 60W Lens Material: optical PC

2. Lens Beam Angle :60x120degree

3. Lens size:200x150x11.65mm

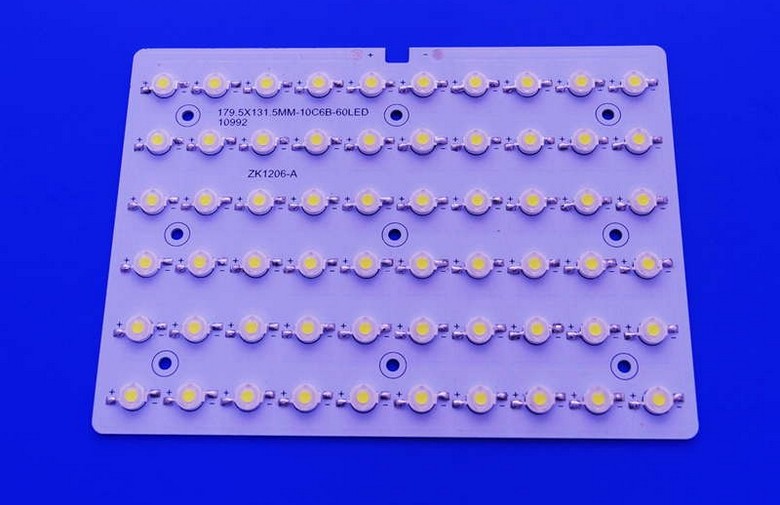

4. PCB Module size :179x130mm

5. Led chips:Bridgelux|Edison

6. PCB Circuit with 60x1W LED 10 Series 6 Parallel

7. Driver Model :AT1751-10S6P

8.Lens Model:SUN-L60X120ED803





Retrofit Solution :



How do SKD LED street light components retrofit kits replace MH or HPS Lamps ?


1). 30W LED retrofit kits can replace 100W Metal Halide or HPS bulbs.
2). 200W LED retrofit kits can replace 600W Metal Halide or HPS bulbs.
3). 400W LED retrofit kits can replace 1000W Metal Halide or HPS lamps.
4). Use E40/E39/E26/E27 brackets to mount the retrofit kits to to the traditional light housings





Features :



  1. This SKD 60W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 60W,120W and so on .
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people's eyes.
  7. Directional light means no light pollution, dark sky compliance.



Specifications:



1, Product Name

60W Led Street Light Fittings SKD parts for Retrofit 250W HPS Lamp Replacement

2, Model No

SUN-L60x120ED803

3, Main parts

60W Lens+ Silicone gasket + AL PCB mounting leds +Waterproof led constant driver

4, Lens Material

PC Optical

5, MOQ

30pcs

6, Lens size

200x150x11.65mm

7,PCB Size

179x130mm

8, Driver enclosure

plastic or aluminum case for choice

9, PCB Circuit

10 series 6 parallel

10, Certificate

ROHS,CE

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia





Features for AT1751 LED Constant Current driver :



Suitable for AC176V~265V Input voltage

Output power should be less than 75W

Input and output is isolated

Power factor is > 0.9

ROHS standard





Specification:



Model NO.

AT1751-10XP7W-MP



Rated Input voltage

220VAC

Input voltage scale

176~265VAC ,47~63Hz

Power factor

>0.9



Efficiency

>86%



Rated input power

<93W



Loading input power

<3.5W



Short-circuit input power

<11W (output <5S)



AC Current

<590 mA



Cold start surge current

<40A



Leakage current

<5mA



Constant current output scale

2200±50mA,30~36V



Loading voltage

<59V



Ripple ,noise

2V



Linear adjust

1%



Load regulation

1%



Time for starting

<1.3S



Opposite for wires

Normal working

Low or high  input voltage

Low voltage no output or twinkle ;high voltage will damage the power supply

Overheat

IC has protection for overheat

Working temp & humidity

-20℃-60℃,20-95%RH

Storing temp ,humidity

-25℃-80℃,20-95%RH

RoHS

YES

MTBF

>25000 HOURS

Dimension ,weight

MP: 165*61*40MM 600G

Input wires:



stranded PVC cable  L,N,Y/G 0.5mm2 ;150mm

Output wires

stranded cables  BLACK LED -  ; RED /LED + 0.5mm2 150mm





Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
