Led Street Light Components / Parts with 28W Led Reflector PC Lens

Brand Name:	Sunshineopto
Model Number:	SUN-LD96X153FULL
MOQ:	30
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram
Supply Ability:	5000pcs/months

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Shenzhen,China

Certification:

Lens Material:

Beam Angle:

90x120degree

Lens Size:

152.8x95.9x10.9mm

PCB Size:

132x75mm

Driver Size:

180x39x30mm

PCB Circuit:

7 Series 4 Parallel ,14 Series 2 Parallel Or 28 In Series

Packaging Details:

20pcs lens /parcel 32x18x12cm/2.5kgs

Supply Ability:

5000pcs/months

Highlight:

led street light replacement

led light components parts

Product Description

Led Street Light Components / Parts with 28W Led Reflector PC Lens

Quick Detail:

1. 28W Lens Material: optical PC

2. Lens Beam Angle :90x120degree

3. Lens size:152.8x95.9x10.9mm

4. PCB Module size :132x75mm

5. LED Driver size :180x39x30mm

6. PCB Circuit with 28x1W LED : 7 series 4 parallel ,14 series 2 parallel or 28 in series

7.Lens Model；SUN-LD96X153FULL

Description:

This SKD 28W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 56W,112W,168W and so on .
It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
Directional light means no light pollution, dark sky compliance.
Optic lenses are available for projects that need smaller beam angles, like 90x120°, 140x70°,120x60°, 90x126°etc.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .

Specifications:

Product Name	28W Led Reflector PC Lens , Led Street Light Components For Street Lighting
Model No	SUN-LD96X153FULL
Main parts	28W Lens+ Silicone gasket + AL PCB mounting leds +Waterproof led constant driver
Lens Material	PC Optical
MOQ	30pcs
Lens size	152.8x95.9x10.9mm
PCB Size	132x75mm
Sample	3 days
Delivery	5-6days
Certificate	ROHS
Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL	4-5 working days
UPS	3-5 working days
EMS	7-15 working days
Fed Ex/TNT	3-5 working days
HK Post Air Mail Register	10-18 working days
Delivery time	5-6 working days

Competitive Advantage:

1). Using high quality USA Bridgelux chips
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
5). Top quality with warranty of 2 years warranty
6). LM80 testing reports available
7). All models are simply installed by E26/E39/E40 mounting brackets.

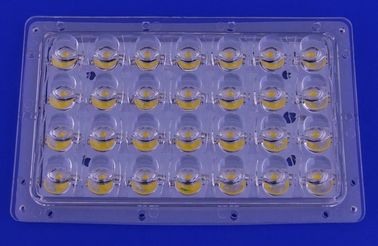

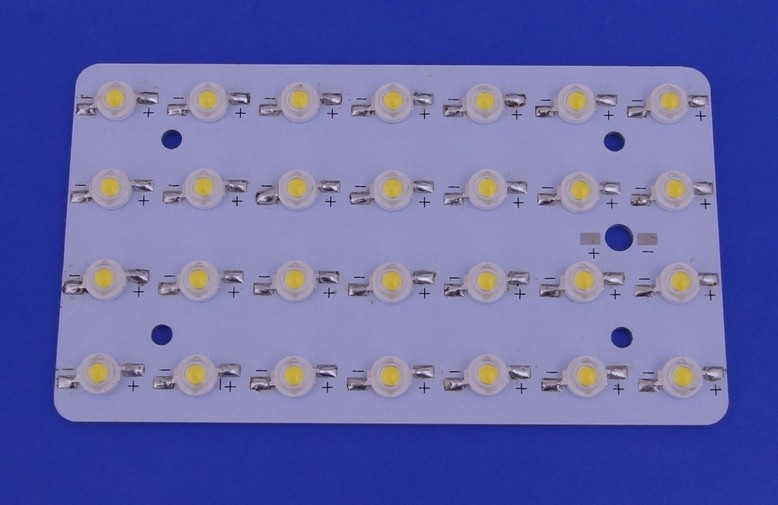

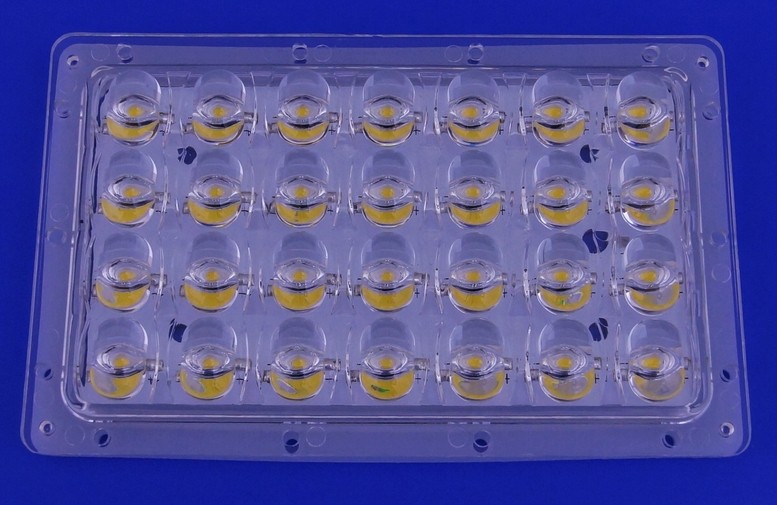

Product Picture:
