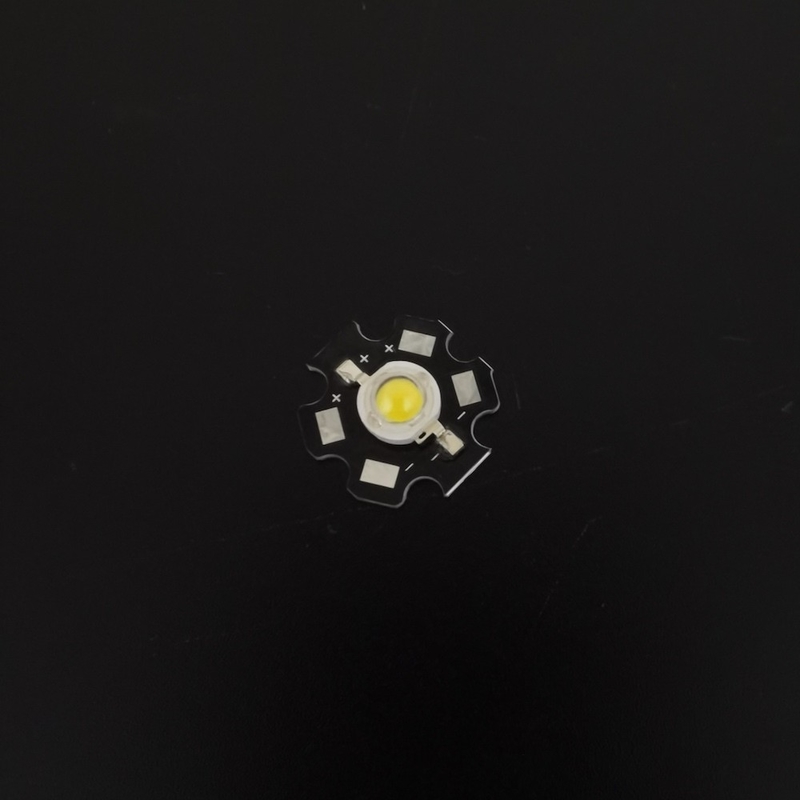

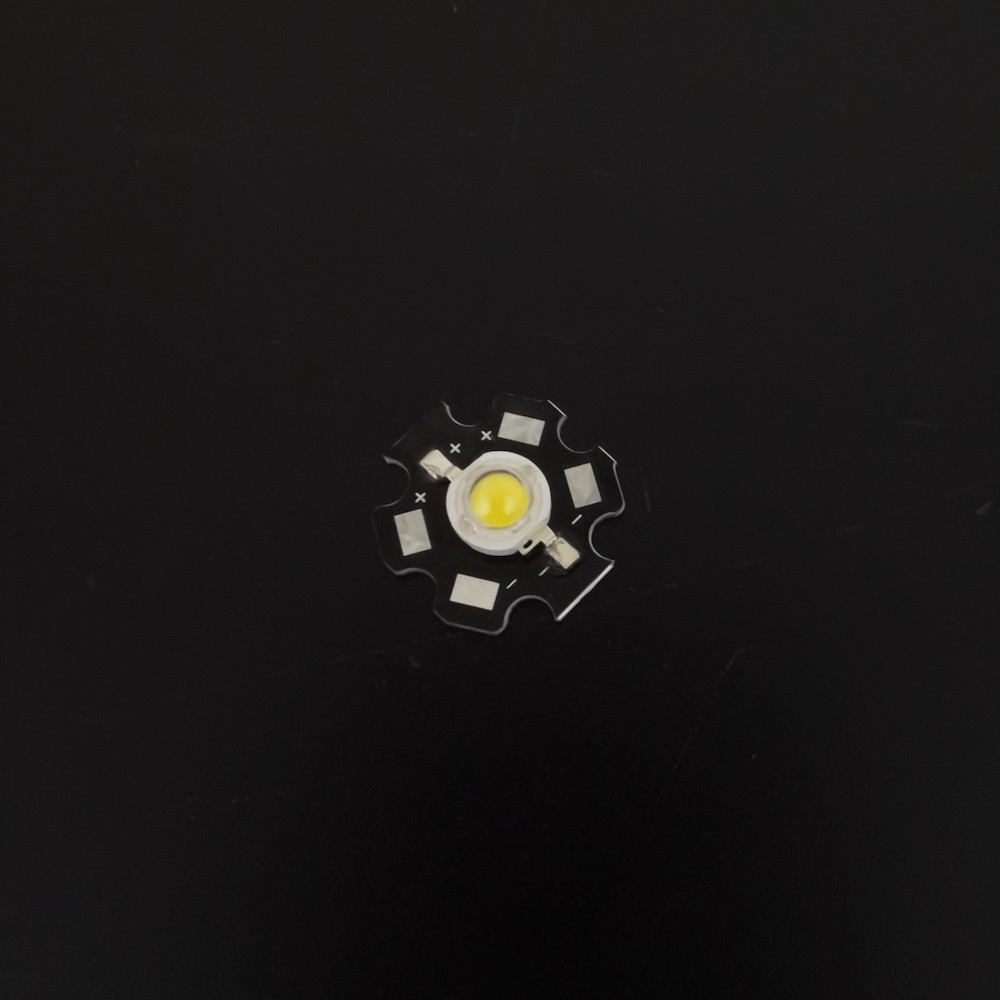

White 1W High Power Led , Bridgelux Chips high power lamp led 150lm LM -80

White 1W High Power Led , Bridgelux Chips high power lamp led 150lm LM -80

full color leds

1 watt high power led

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

LM-80,ROHS

Model Number:

SP1WNW150

Contact Us

Request A Quote
Product Details
Product Name::
White 1W High Power Led Bridgelux Chips 150lm LM-80
Size::
14.8*7.9mm
Viewing Angle::
120degree
Voltage::
3.0-3.6v For 1w
Current::
350ma For 1w
Color Temperature::
4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k
Chips::
Bridgelux Chip
Luminous Flux::
140-150lm For 1w
Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Need to negotiate
Packaging Details
50PCS/REEL
Delivery Time
3-4 work days for 1000pcs.
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
100000 pcs for one week.
Product Description

 White 1W High Power Led Bridgelux Chips 150lm LM-80

Quick Detail:


1.Model:SP1WNW150

2.Size: 14.8*7.9mm

2.Viewing angle: 120degree

3.Voltage:3.0-3.6v for 1w

4.Current:350ma for 1w

5.Color temperature: 4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k

6.Chips: Bridgelux chip

7.Luminous Flux:140-150lm for 1w


Usage: LED lighting , street light , flashlight , LED bulb, Halogen lamp,Table light ,Light strips etc.

Certificate: LM-80,ROHS




Description:


  1. Best raw materials used in our LED production :

    1)Chip: Taiwan 45MIL chip;
    2) Silicon glue: USA Dowcorning (good glue has less lighting decreasing);
    3) Powder: USA Intermatix (good powder has better performance in lumens);
    4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;
    5) Led base:red/ black cooper base .
    Super high Flux output and  high Luminance  ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
    We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow etc.
    6)Free samples and 2 years warranty .



Specifications:


Product Name

White 1W High Power Led Bridgelux Chips 150lm LM-80

Model No

SP1WNW150

Finishing

Reflow soldering

Material

Epistar chip or Bridgelux chip 45mil

MOQ

1000pcs

Size

14.8*7.9mm

Package

50pcs/reel ,1000pcs/box

Sample

1-3 work days

Delivery

3-4 work days

Certificate

LM-80,ROHS

Quality gurantee

2 years warranty

Main market

Europe, America, Austria, Asia



White 1W High Power Led , Bridgelux Chips high power lamp led 150lm LM -80 0



Competitive Advantage of SUNSHINEOPTO :

1. About 6 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.



Applications:

General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight
