Epistar Chip 1w High Power Led 140lm With Star Pcb , 120 Degree viewing Angle

Epistar Chip 1w High Power Led 140lm With Star Pcb , 120 Degree viewing Angle

1 watt high power led

high power 1w led

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

LM-80,ROHS

Model Number:

SP1W140

Contact Us

Request A Quote
Product Details
Product Name::
Epistar Chip 1W High Power Led 140lm With Star PCB
Size::
14.8*7.9mm
Viewing Angle::
120degree
Voltage::
3.0-3.6v For 1w/3.5-4.5v For 3w
Current::
350ma For 1w /700ma For 3w
Color Temperature::
2900-3200k ,4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k,7000-9000K
Chips::
: Epistar Or Bridgelux Chip
Luminous Flux::
120-150lm For 1w, 180-220lm For 3w
Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Need to negotiate
Packaging Details
50PCS/REEL
Delivery Time
3-4 work days for 1000pcs.
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
100000 pcs for one week.
Product Description

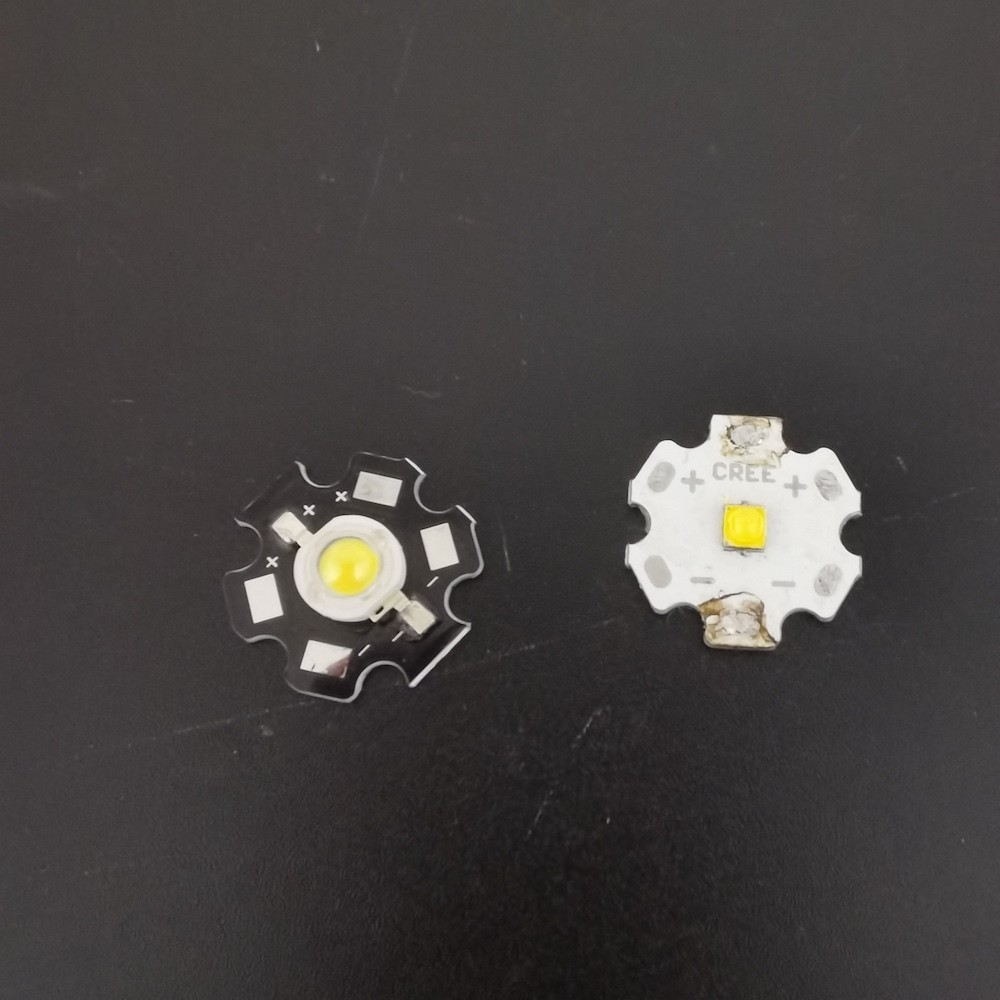

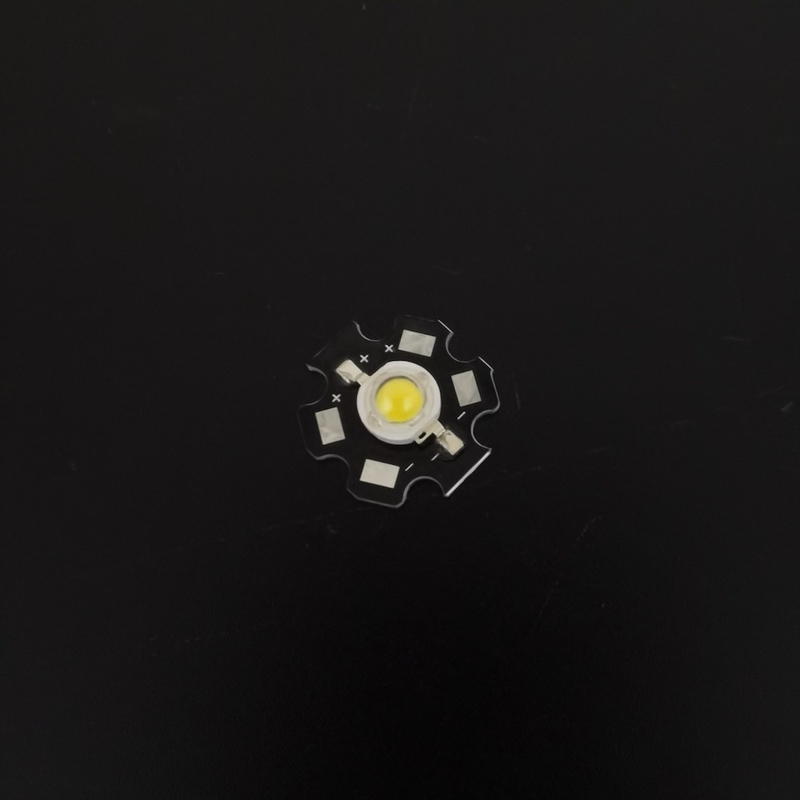

 Epistar chip 1W High Power Led 140lm With Star PCB


Quick Detail:


1.Model:SP1W140

2.Size: 14.8*7.9mm

3.Viewing angle: 120degree

4.Voltage:3.0-3.6v for 1w/3.5-4.5v for 3w

5.Current:350ma for 1w /700ma for 3w

6.Color temperature: 2900-3200k ,4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k,7000-9000K

7.Chips: Epistar or Bridgelux chip

8.Luminous Flux:120-150lm for 1w, 180-220lm for 3w .


Usage: LED lighting , street light , flashlight , LED bulb, Halogen lamp,Table light ,Light strips etc.

Certificate: LM-80,ROHS




Description:


  1. Best raw materials used in our LED production : 1)Chip:USA Bridgelux chip, Taiwan Epistar chip; 2) Silicon glue: USA Dowcorning (good glue has less lighting decreasing); 3) Powder: USA Intermatix (good powder has better performance in lumens);4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;5) Led base:red/ black cooper base (for better thermal conductive/ disspation) .
  2. Super high Flux output and  high Luminance  ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
  3. We have many kind of color for your choice like : Warm white , Natural white, Cool white , Red , Blue , Green , Yellow ,RGB etc.
  4. Free samples and 2 years warranty .




Specifications:


Product Name

Epistar chip 1W High Power Led 140lm With Star PCB

Model No

SP1W140

Finishing

Reflow soldering

Material

Epistar chip or Bridgelux chip 45mil

MOQ

1000pcs

Size

14.8*7.9mm

Package

50pcs/reel ,1000pcs/box

Sample

1-3 work days

Delivery

3-4 work days

Certificate

LM-80,ROHS

Quality gurantee

2 years warranty

Main market

Europe, America, Austria, Asia

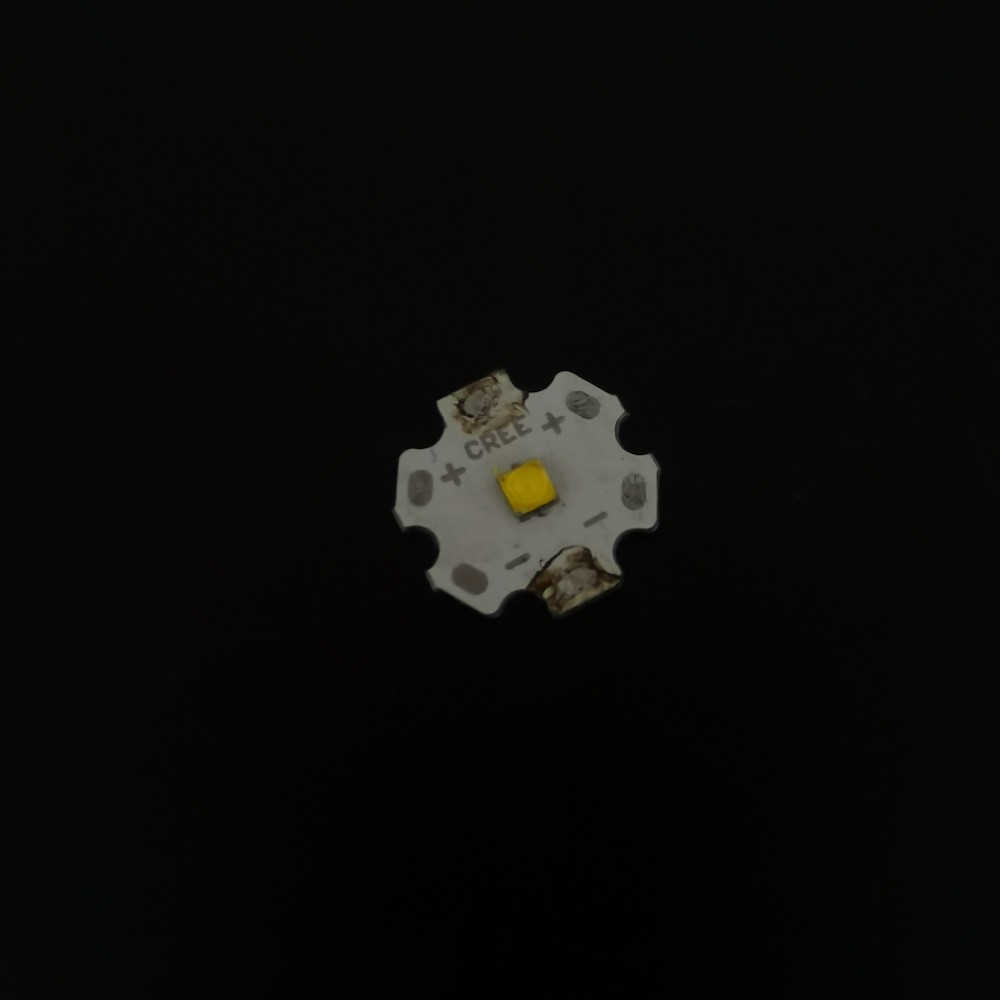

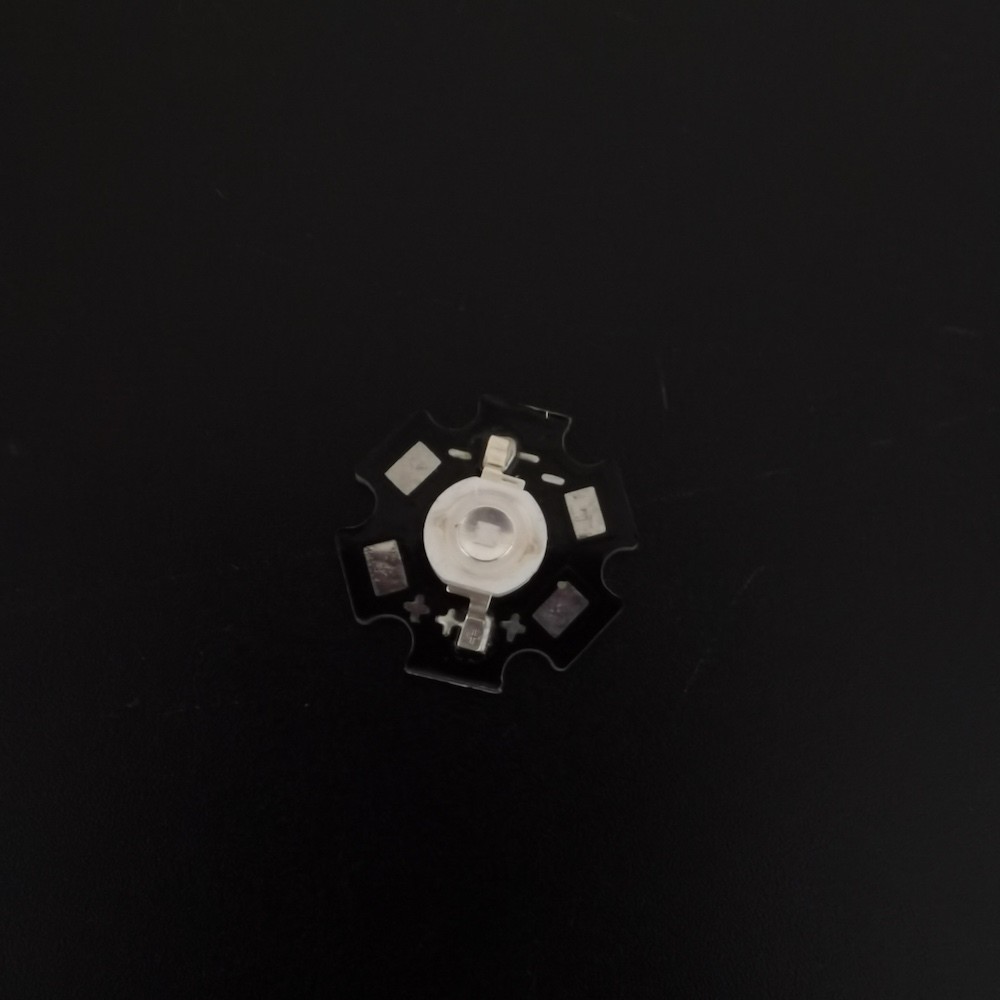

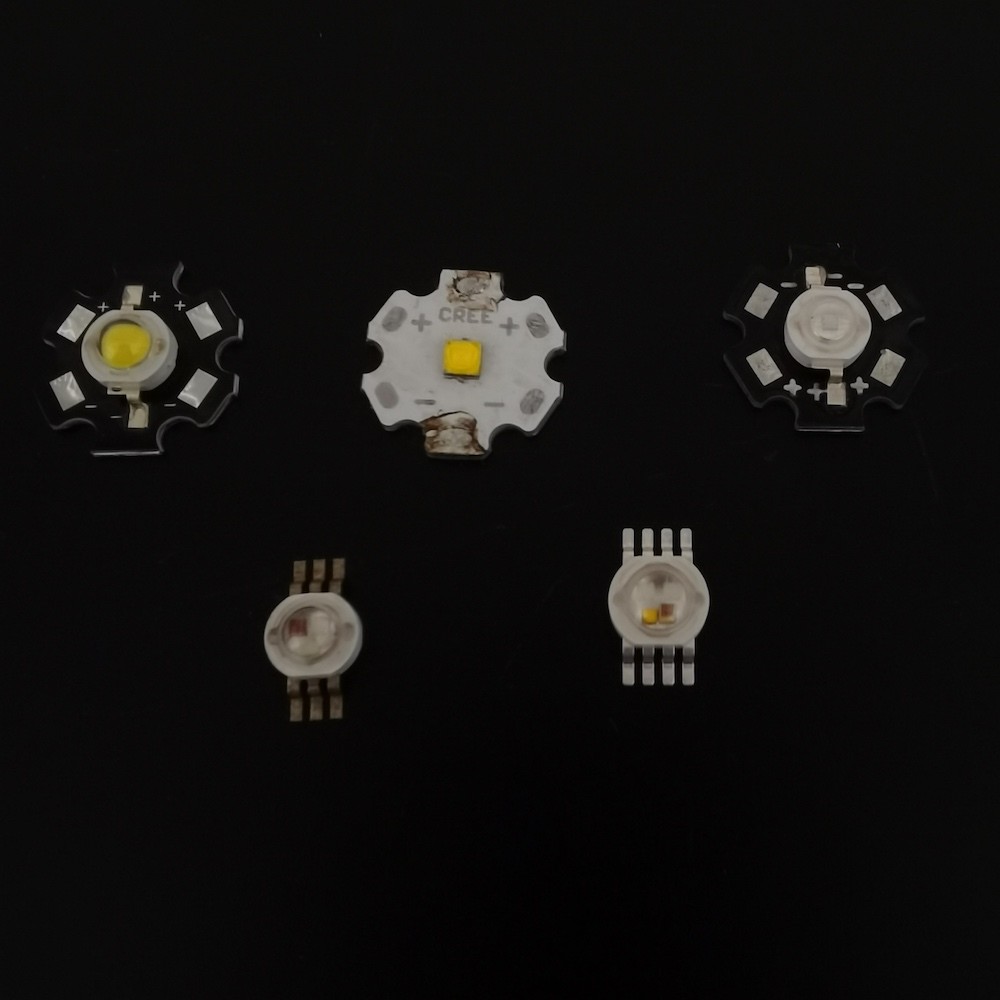

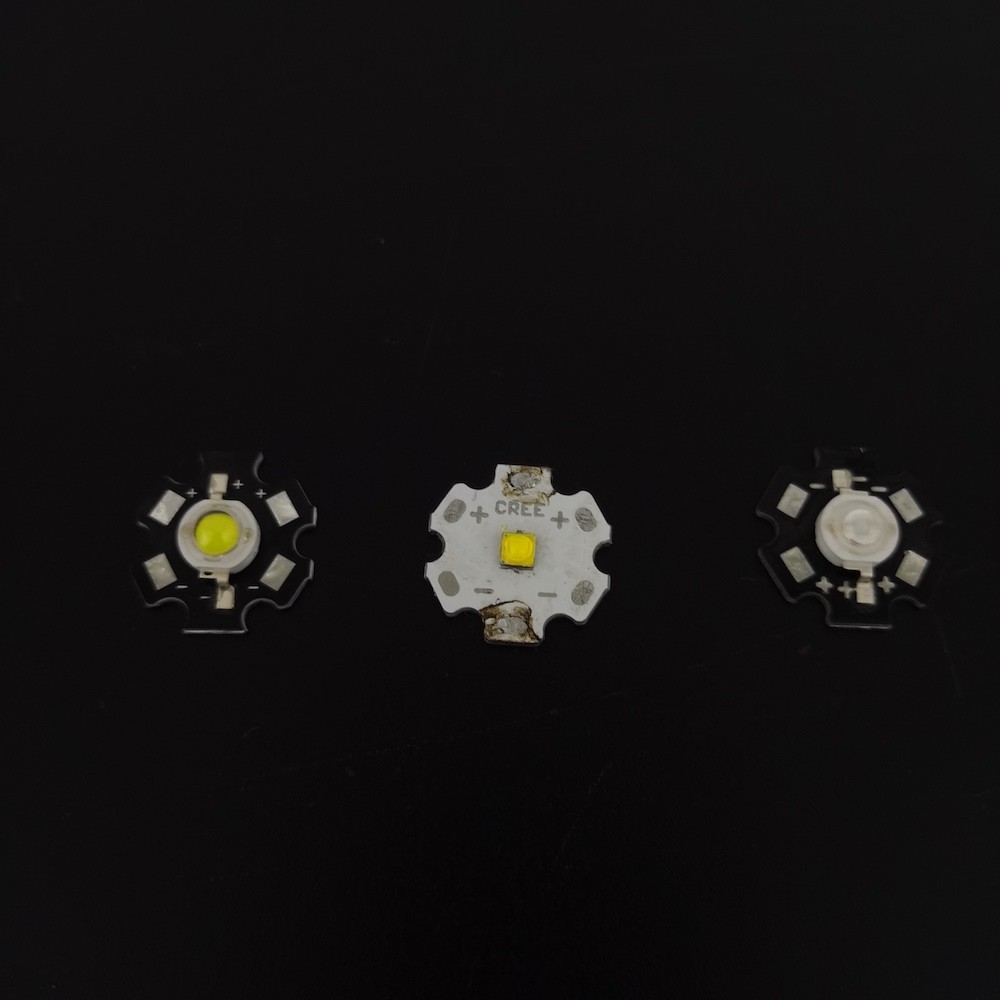

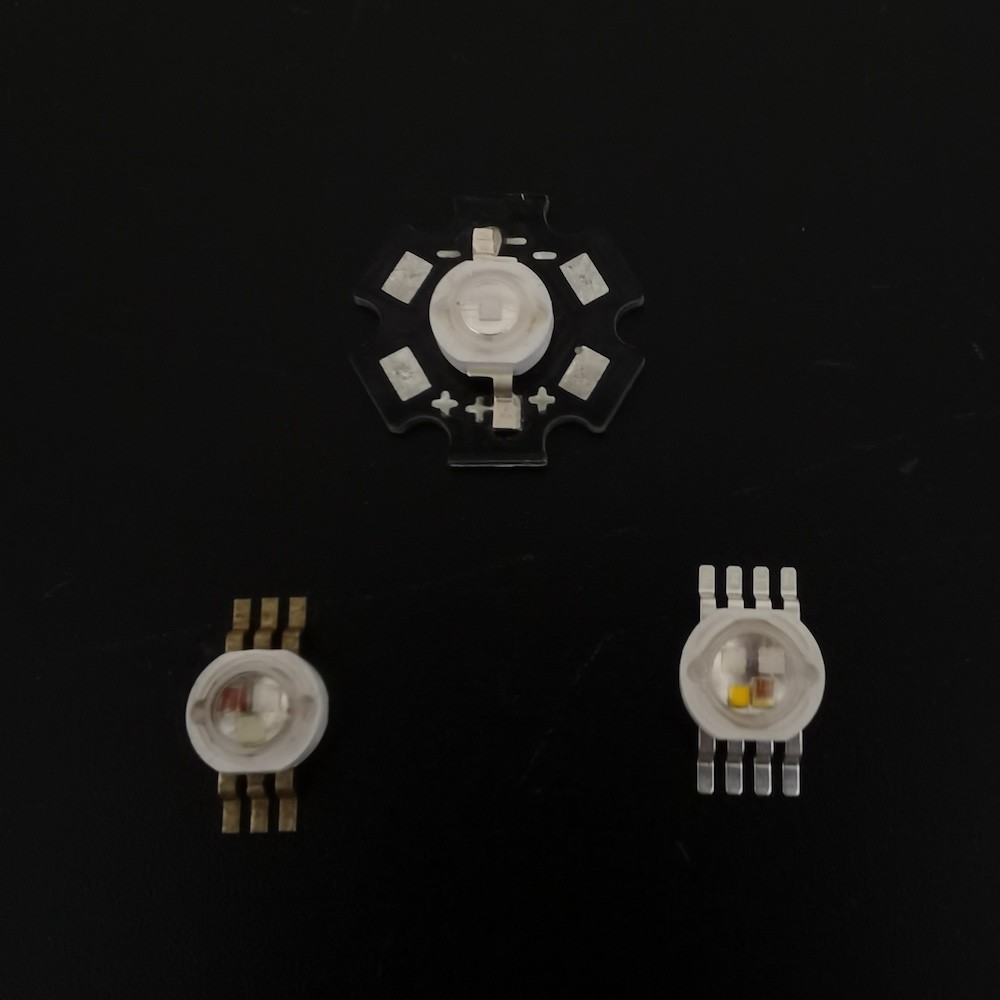

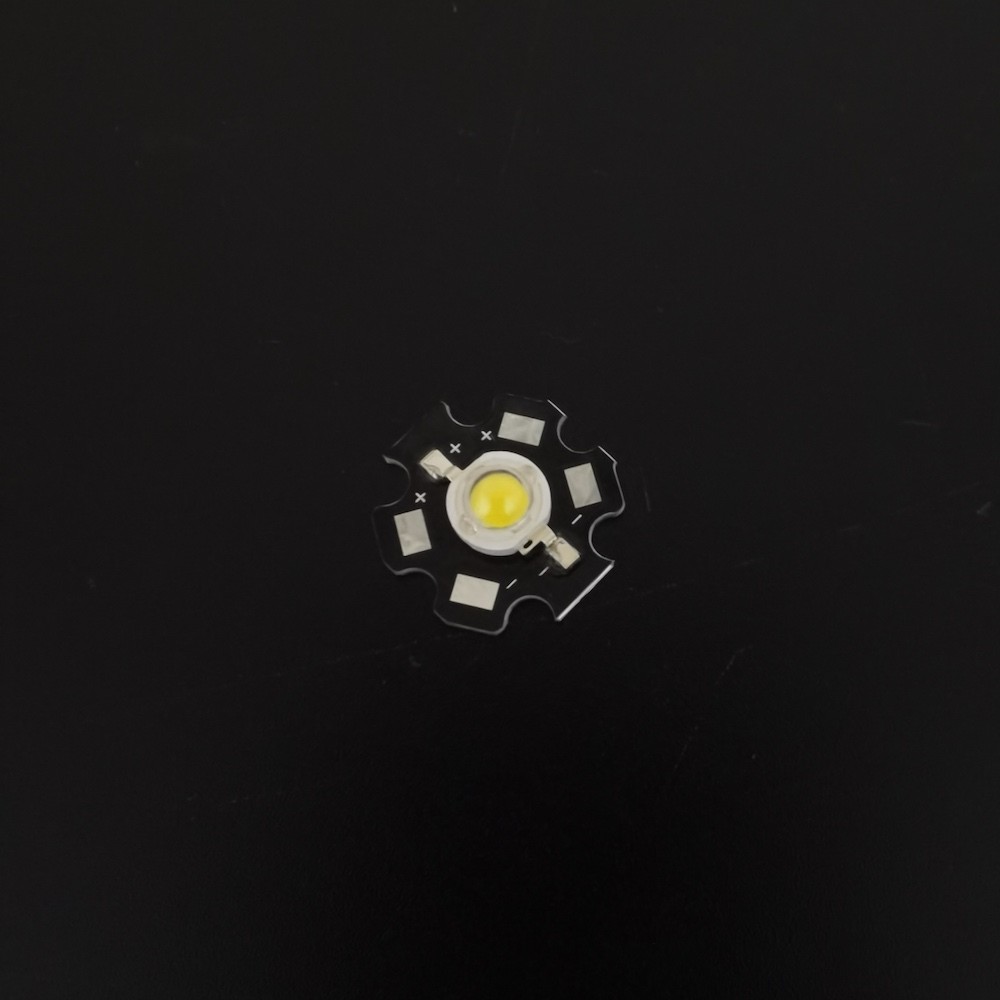

Epistar Chip 1w High Power Led 140lm With Star Pcb , 120 Degree viewing Angle 0

Competitive Advantage of SUNSHINEOPTO :

1. About 6 years specializing in High Power LED industry;

2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.

Applications:

General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight
