| Product Name: | 1W 3W High Power PMMA Led Lens For Aspheric Condenser Led Spotlight | Lens Size: | Dia 19.8mm, Height 11.2mm |
|---|---|---|---|
| Holder Size: | Dia 21.6mm, Height 13mm | Viewing Angle: | 35x90 Degree |
| Material: | Optical PMMA | Match Led: | SSC, Edison Leds |
| High Light: | cree led lens,pmma lens |
||

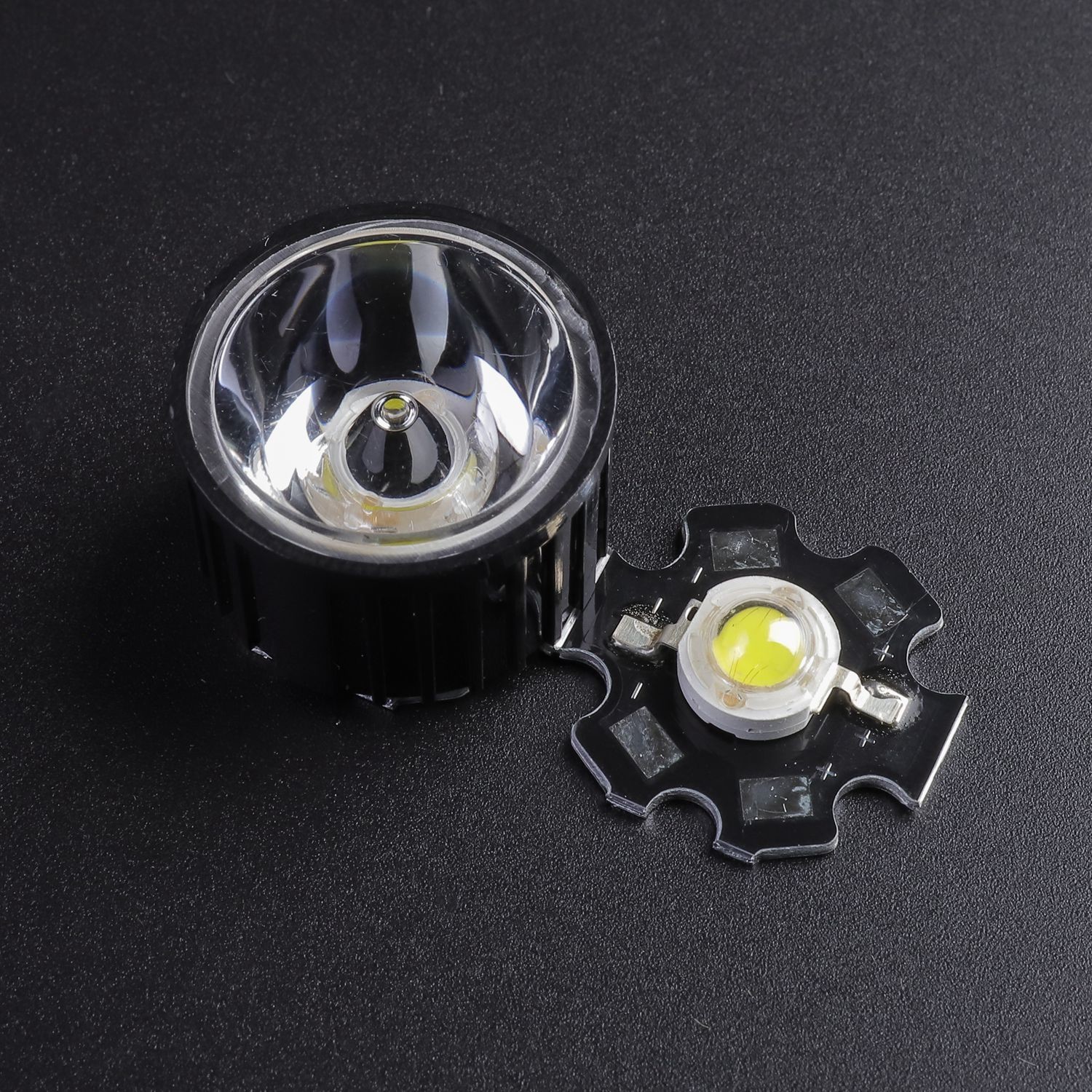

1W 3W High Power PMMA Led Lens for aspheric condenser Led Spotlight
Quick Detail:
1.Model: SUN-20-35F
2.Lens Size: Dia 19.8mm, height 11.2mm
3.Holder Size: Dia 21.6mm, height 13mm
4.Viewing angle: 35x90 degree
5.Materials: Optical PMMA
6.Chips:SSC, Edison Leds
Specifications:
| Model Number | Model: SUN-20-35F |
| Power | 1W|3W |
| Holder Size: | Dia 21.6mm, height 13mm |
| Lens size | Dia 19.8mm, height 11.2mm |
| Led chips | SSC, Edison Leds |
| Temp | -35 to + 90 degree |
| Standards | ROHS |
| Transmittance | 93% |
| Holder color | Black | white holder |
| Application | Wall-washer light,Ceiling light ,Spot Light |
| Beam Angle | 35x90 degree |
Description:
The material of Led Optical Lens is made of high grade PMMA , the transmittance rate is above 93%.
This lens is suitable for SSC, Edison Leds
Applications:
It can be applied for more led lights like Wall-washer light,Ceiling light ,Spot Light,torch light ,led down lights and so on .
Production Line:
Competitive Advantage:
1. One-Stop Service of led components and 6 years specializing in High Power LED industry
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
