Outdoor 3 x 10w LED Street Light Components , Led Road Lamp Fittings

Outdoor 3 x 10w LED Street Light Components , Led Road Lamp Fittings

led street light replacement

led light components parts

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name::
Outdoor 3 X 10w LED Street Light Components , Led Road Lamp Fittings
Beam Angle ::
87X134 Degree
Lens Size::
PCB Size::
Heat Sink Size::
10 Series 3 Parallel
Led Chips::
Luexon ,Edison K2 ,P4
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
1pc/bag 1kg
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
Product Description


Outdoor 3 x 10w LED Street Light Components , Led Road Lamp Fittings


Quick Detail:


Model No:SUN-LD250X74ED

Material: PC

Beam Angle :87X134 degree

Lens size:250X74mm

PCB size: 228x53mm

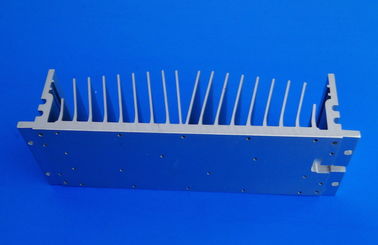

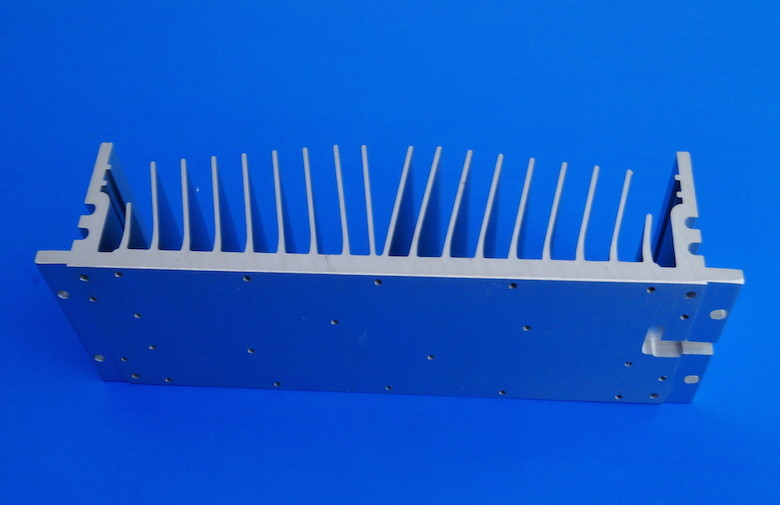

Heat sink size:278x74x54mm

Thickness for heat sink:8mm

Circuit: 10 series 3 parallel

Small footprint, high light output

Led chips:Luexon ,Edison K2 ,P4

Lense array of 30 LEDs




Features :


  1. This SKD 3x10 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 30W,60W,90W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 70x126°, 140x70°,120x60°, 90x126°,60x60° etc.





It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





1, Product Name

New Design 3x10w LED Street Light Components , Led Road Lamp Fittings

2, Model No


3, Main parts

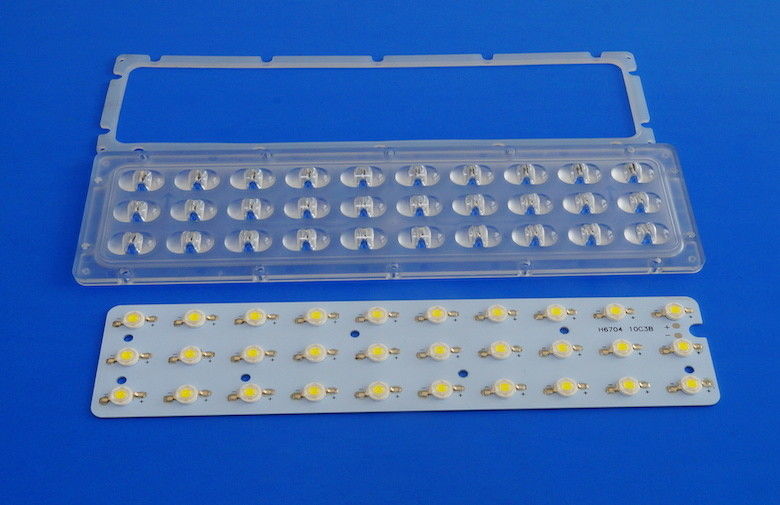

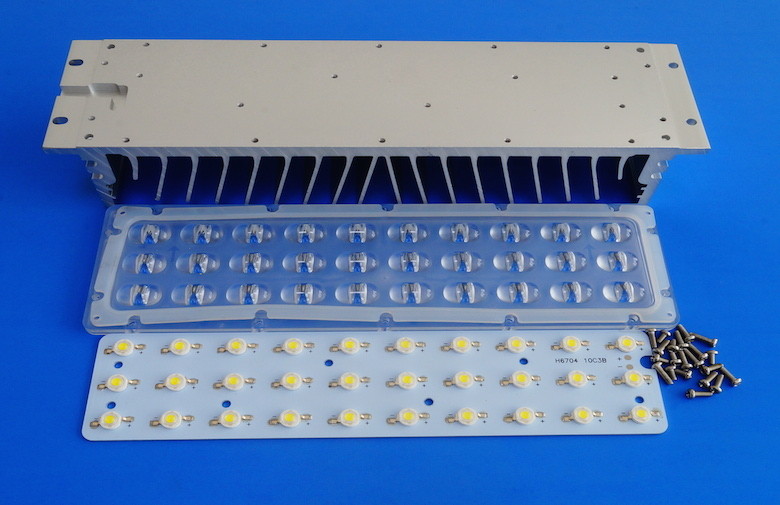

30W Array lens , silicon gasket , aluminium PCB with LEDs, heat sink ,screws

4, Lens Material


5, Lens size


6, Transmittance




8, Sample

3-4 work day

9, Delivery

7-10 work days for 100 sets

10, Angle

65x120 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:



4-5 working days


10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms


Sample availability


Delivery time

3-4 working days



Competitive Advantage:


Advantages of SKD 10x3 LED module  :


1). Using high quality for Edison,P4

2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.

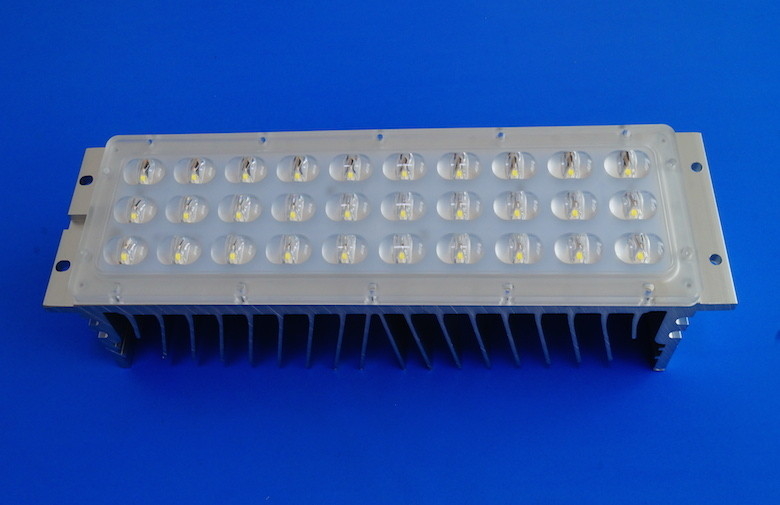

Product Picture:
