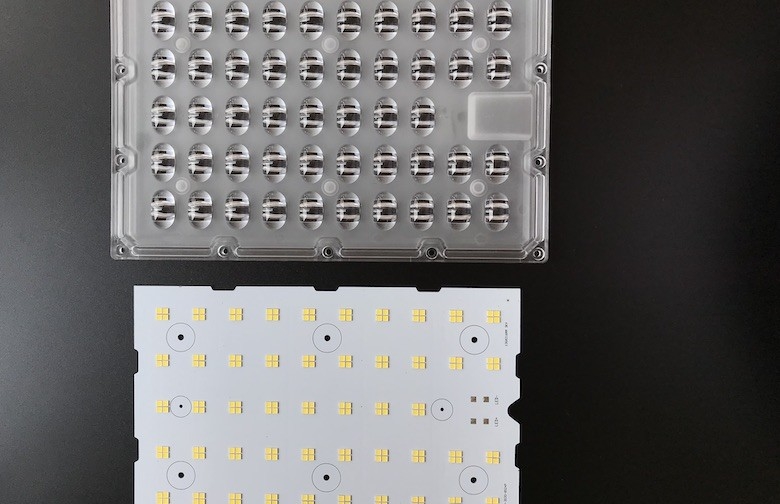

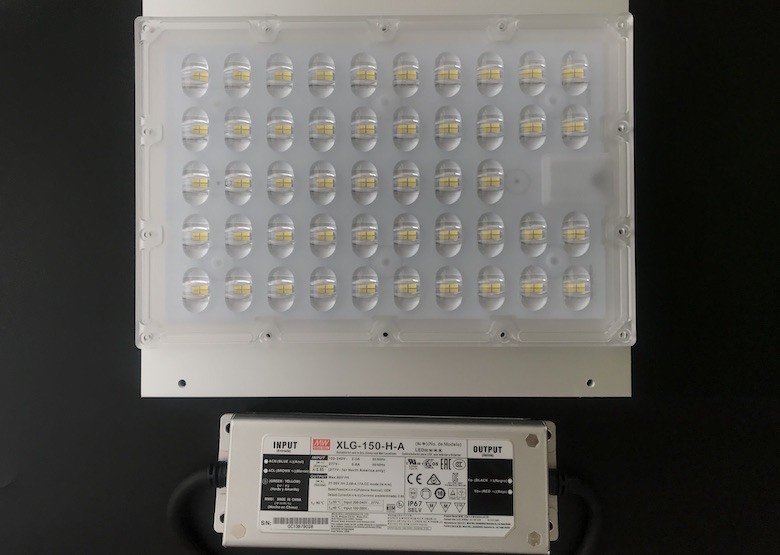

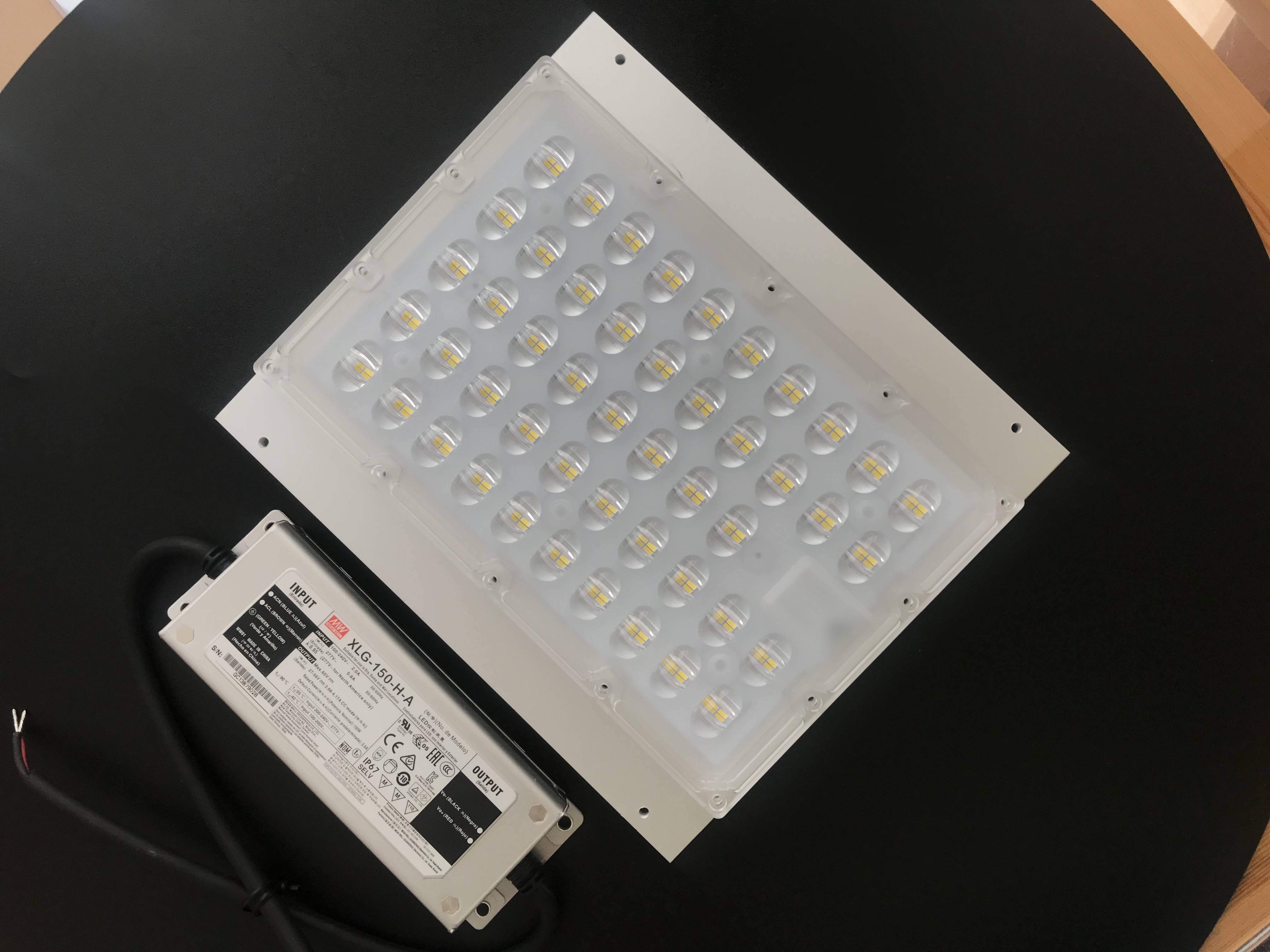

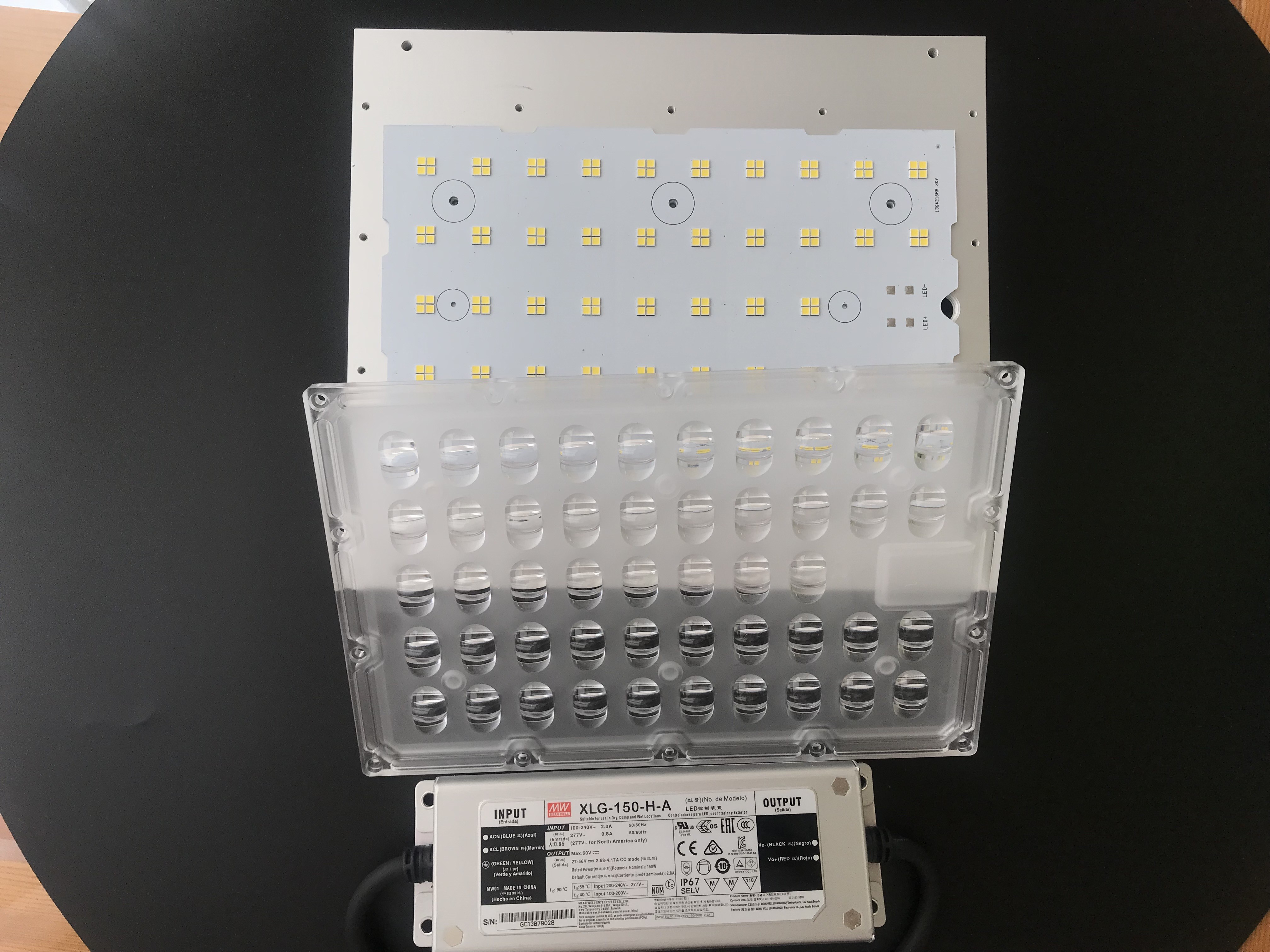

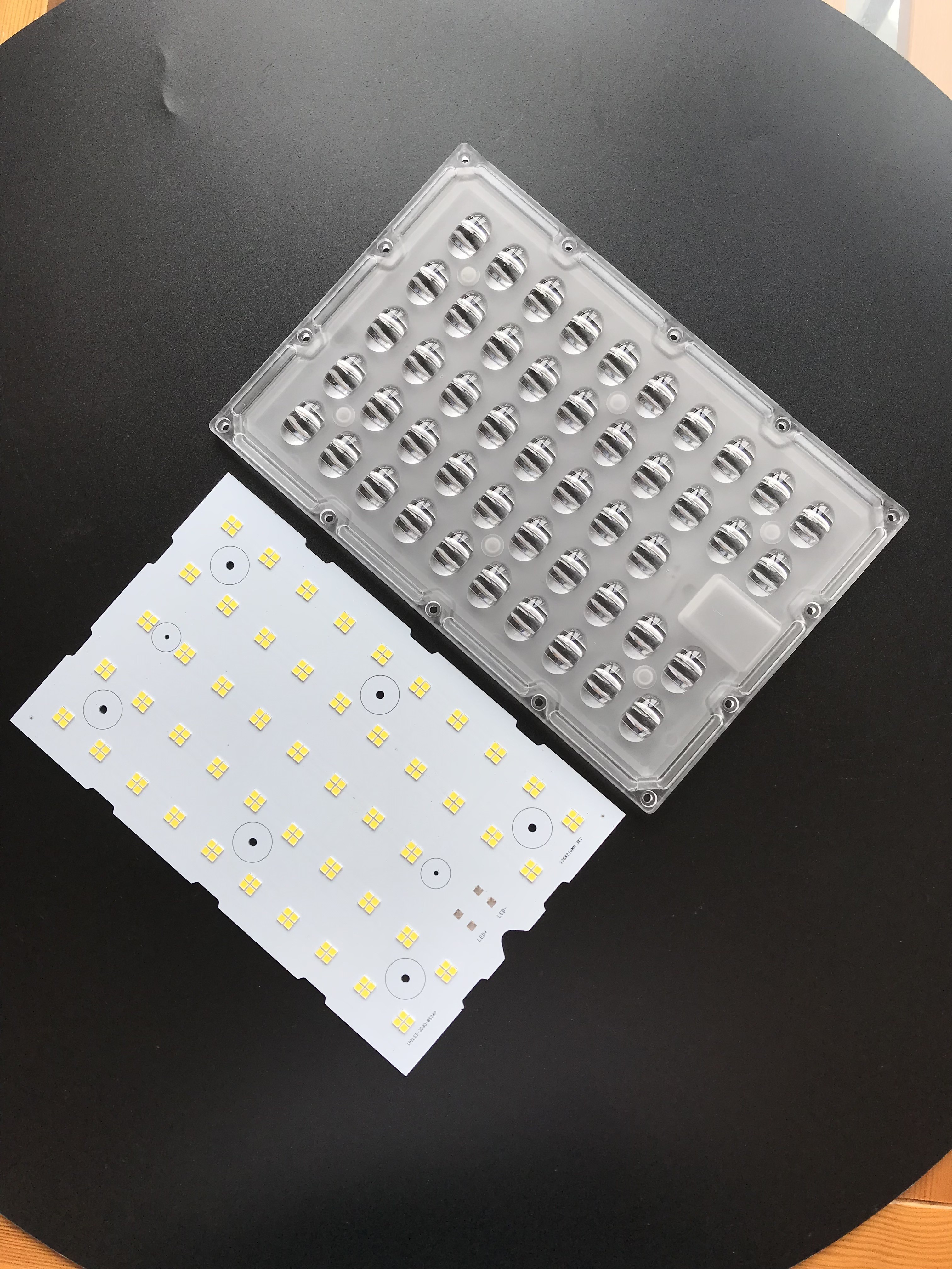

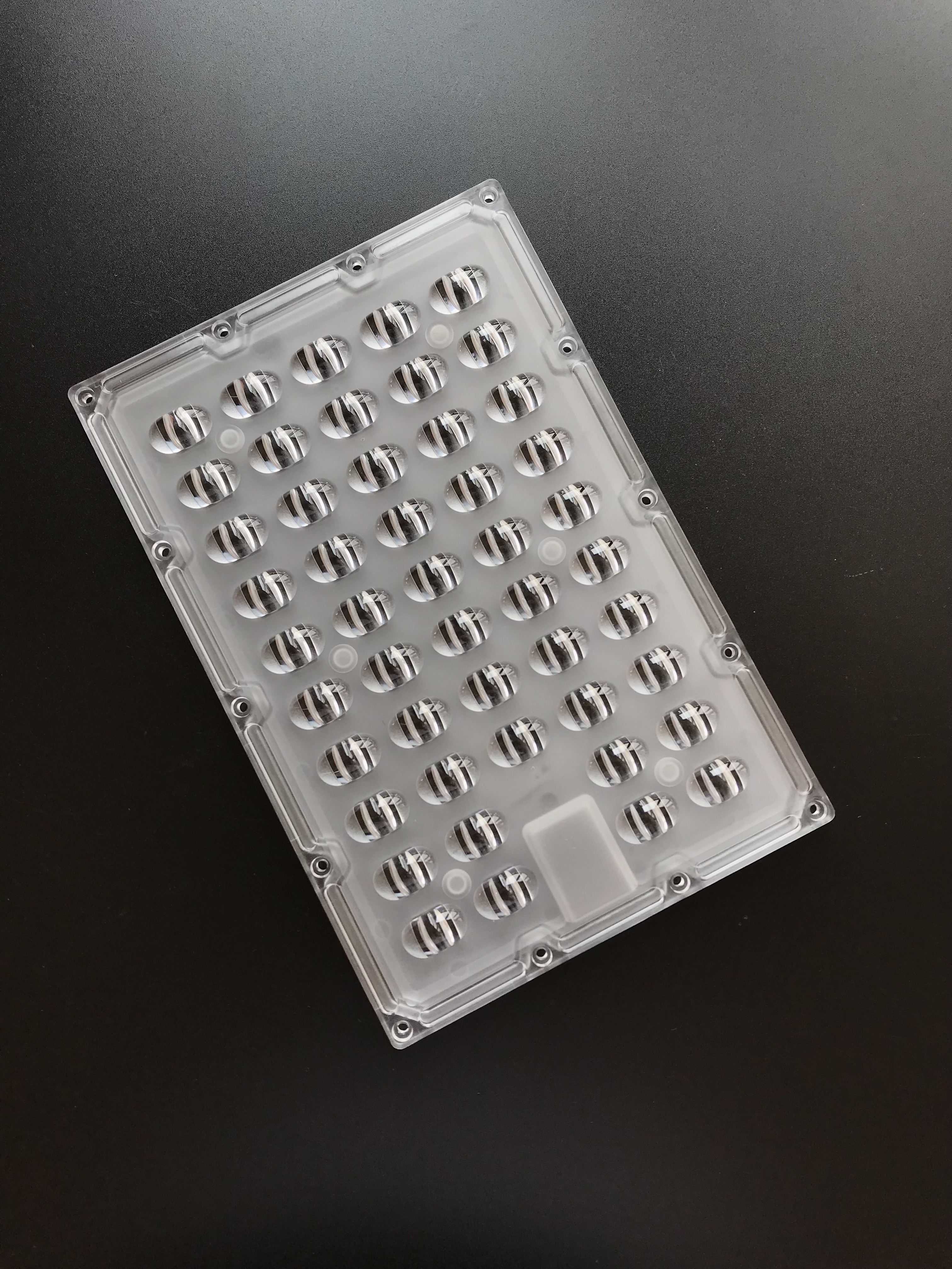

150W 3030 SMD LED Street Light Components Optics Array Lens For Road Lamp

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	Sunshineopto
Certification:	SGS,ROHS
Model Number:	SUN-LD240X160-48X4-T3-M

Minimum Order Quantity:	1
Packaging Details:	Cartons
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram
Supply Ability:	5000pcs/months

Get Best Price Contact Now

Detail Information

Product Name:	150W SMD Led Street Light Components	Model No.:	SUN-LD240X160-48X4-T3-M
Angle:	T3 Degree	Lens Dimension:	240x160x8.9mm
Lens Material:	Optical Grade PC	LED CHIP:	3030 SMD LED, 150-160lm/w 150mA,6v
Tranmittance:	91%	Application:	High Bay Light/Street Light
Accessory:	Gasket And Lens+PCB+ 3030SMD LED+Heat Sink	PCB Size:	216x136x1.5mm
PCB Circuit:	8 Series 24 Parallel
Highlight:	150W LED Street Light Components , 3030 SMD LED Street Light Components , Road Lamp retrofit lighting kits

Product Description

150W SMD Led Street Light Components Optics Array Lens For Road Lamp

Product Feature:

1. This led street light module has a small size can match a variety of lamp housing .

2. Whole led light module use Ph3030 leds ,High quality leds guarantee long life .

3. We can according your require to design new Lens & Board.
4. This SKD 48 LED Array lens with PCB Module is best design power lamps like 150W for per module.

Specifications:

1, Product Name	150W SMD Led Street Light Components Optics Array Lens For Road Lamp
2, Model No	SUN-LD240X160-48X4-T3-M
3, Main parts	Array lens , silicon gasket+PCB+LED+HEAT SINK
4, Lens Material	PC
5, Lens size	240x160x8.9MM
6, Transmittance	91%
7,LEDS	3030 SMD LED, 140-150lm 150mA,6v
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, Angle	T3
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Other Silimar Led Module

Model No.	Power(W)	Angle(Degree)	Lens size(mm)	PCB size(mm)	Circuit
SUN-LD3x12-3030-90x90	30	90x90	250x74	228x53x1.5	6S6P
SUN-LD3x12-3030-60x140	30	60x140	120x110	89x89x1.5	6S6P
SUN-LD4X12-3030-60X60	40	60x60	250x74	228x53x1.5	6S8P
SUN-SL56W-3030-30/60/90	50	30/60/90	256.6x78.6	233x55x1.5	7S8P
SUN-SL64W-3030-30/60/90	50	30/60/90	236x70	219.1x53.54x1.5	8S8P
SUN-SL72-3030-60/90	50	60/90	250x74	226x57.9x1.5	8S9P

LENS Dimensions :

150W 3030 SMD LED Street Light Components Optics Array Lens For Road Lamp 0

150W 3030 SMD LED Street Light Components Optics Array Lens For Road Lamp 1

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
