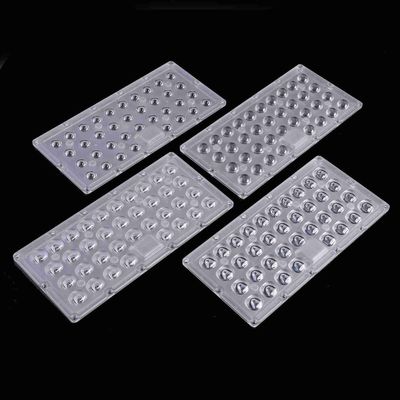

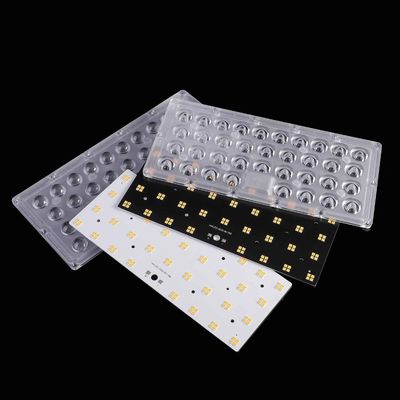

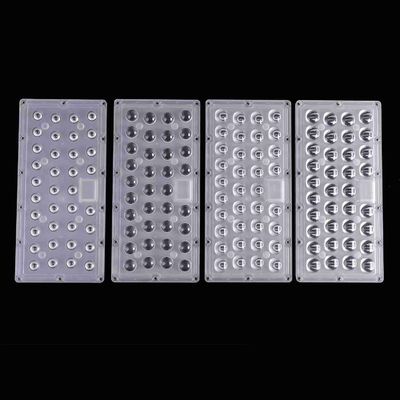

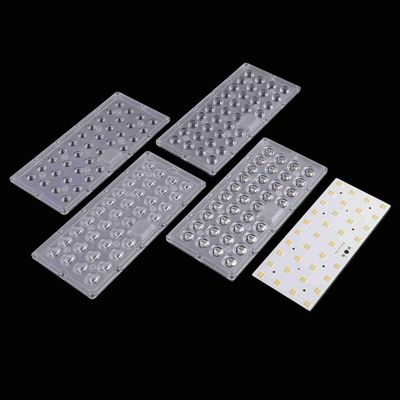

60 Degree Beam Angle 36 LED Array Lens With 3030 SMD LED PCB Board for Light Module Exporter

Brand Name: Sunshineopto
Model Number: SUN-LD253X120-36-60
MOQ: 100
Price: Negotiate
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 10000pcs/months
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS,RoHS,CE
Lens Size:
253x120x10.6mm
PCB Size:
223x93x1.5mm
Circuit For PCB Board:
8 Series 18 Parallel
Beam Angle:
60 Degree
LED Chip:
3030 SMD LED,6V 150mA
Main Components:
36 Array Lens, Silicon Gasket, PCB, 3030 SMD LED
Material:
PC
Applications:
High Bay Light/Street Light/Square Lighting/Projection Lam And So On
Packaging Details:
carton
Supply Ability:
10000pcs/months
Highlight:

60 Degree LED Array Lens With PCB

,

36 LED Array Lens With PCB

,

3030 SMD LED PCB Board

Product Description
60 Degree Beam Angle 36 LED Array Lens With 3030 SMD LED PCB Board for Light Module Exporter

High-performance 36 LED array projection lamp lens with PCB module featuring multiple beam angle options including 60°, 90°, and 150° configurations

Product Overview
Introducing the 60-Degree Beam Angle 36-LED Array Lens with 3030 SMD LED PCB Board, a premium LED optical solution designed to optimize light output, efficiency, and uniformity for 50W LED light modules. The 36-LED array lens provides a precise 60-degree beam angle, ensuring optimized light distribution and reducing hotspots, while the SMD 3030 LED PCB board guarantees consistent luminous performance and long-lasting operation. Constructed from high-quality optical-grade materials, the lens offers high light transmission, UV resistance, and durability, making it ideal for export markets and large-scale outdoor installations.Designed for customers, this lens and PCB board combination ensures efficient integration into light modules, making it a preferred choice for wholesale LED module suppliers and lighting system manufacturers aiming to deliver high-quality, energy-efficient, and reliable LED solutions.
Key Features
  • The high light transmission and precise beam control of the 36-LED array lens ensure that the LED light module delivers maximum brightness with minimal energy consumption. By focusing light efficiently and reducing wastage, this product helps reduce operational costs
  • Cost-effective replacement for Metal Halide or HPS bulbs with existing housing compatibility
  • Advanced thermal management technology for optimal performance
  • Wide operating temperature range: -35°C to +70°C
  • Environmentally friendly - contains no mercury or lead
  • The lens is engineered to withstand harsh environmental conditions, including rain, high humidity, and direct sunlight, thanks to its UV-resistant material. The impact-resistant lens design ensures that the product maintains optical clarity and light transmission over a long service life
  • Directional lighting design reduces light pollution and ensures dark sky compliance
  • Multiple optic lens options available for various beam angle requirements
  • Made from optical-grade polycarbonate (PC), the 36-LED array lens offers superior light transmission, high impact resistance, and UV protection. The lens ensures minimal light loss and preserves its clarity even in harsh outdoor environments, such as streets, highways, and industrial facilities.

Technical Specifications

Product Name60 Degree Beam Angle 36 LED Array Lens With 3030 SMD LED PCB Board for Light Module Exporter
Model NumberSUN-LD253X120-36-60
Main Components36 Array Lens, Silicon Gasket, PCB, 3030 SMD LED
Lens MaterialPolycarbonate (PC)
Lens Dimensions253 × 120 mm
PCB Size223x93x1.5mm
Circuit for PCB Board8 series 18 parallel
Transmittance91%
LED Specifications3030 SMD, 6V, 150mA
Beam Angle60 degree
Working Hours50000+
Warranty2 years
Quality GuaranteeIf you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund
Primary MarketsEurope, South America, North America, Asia
Product Dimensions Drawing
60 Degree Beam Angle 36 LED Array Lens With 3030 SMD LED PCB Board for Light Module Exporter 0























Beam Pattern Drawing
60 Degree Beam Angle 36 LED Array Lens With 3030 SMD LED PCB Board for Light Module Exporter 1
























Applications
  • Street lighting
  • Tunnel lighting
  • Industrial lighting systems
  • Parking facility lighting
  • Stadium and sports field lighting
  • High bay lighting
  • Warehouse lighting solutions
Shipping & Delivery Informations
DHL/UPS/TNT/FEDEX4-5 working days
EMS10-15 working days
HK Post Air Mail Register15-18 working days
Trade TermsFOB, EXW, CIF, CFR
Standard Sample Delivery3-4 working days
