100W 28pcs 7070 SMD LED PCB Board Module For Street Lights

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	Sunshineopto
Certification:	SGS,ROHS
Model Number:	SUN-236X70-158X103-TPII-M-28H1-7070

Minimum Order Quantity:	1
Packaging Details:	Cartons
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram
Supply Ability:	5000pcs/months

Get Best Price Contact Now

Detail Information

Lens Angle:	158x103 Degree	Led Lens Size:	236x70mm
Lens Material:	PC	PCB Circuit:	4 Series 7 Parallel For 7070 Leds
PCB Size:	220x54mm	Match LED:	28pcs 7070 Leds
Kits:	Led Lens + Silicon Gasket+pcb Welding Leds+heat Sink	Application:	Street Light , Garden Light
Highlight:	100W SMD LED PCB Board , SMD7070 LED Street Light Module , Heat Sink LED Street Light Module

Product Description

100W LED Street Light Module , 7070 SMD LED PCB Board for Street Light

Product Feature:

1. This led street light module has a small size can match a variety of lamp housing .

2. Whole led light module use PH7070 leds ,High quality leds guarantee long life .

3. We can according your require to design new Lens & Board.
4. This SKD 28 LED Array lens with PCB Module is best design power lamps like 100W for per module.

Specifications:

Product Name	100W LED Street Light Module , 7070 SMD LED PCB Board for Street Light
Main parts	Array lens , LED PCB, heat sink
Lens Material	PC
Lens size	236x70mm
Transmittance	91%
LEDS	7070 SMD LED 12V
Sample	3-4 work day
Delivery	5-7 work days for 10000 sets
Angle	158x103 Degree
Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main market	Europe, South America,North America, Asia

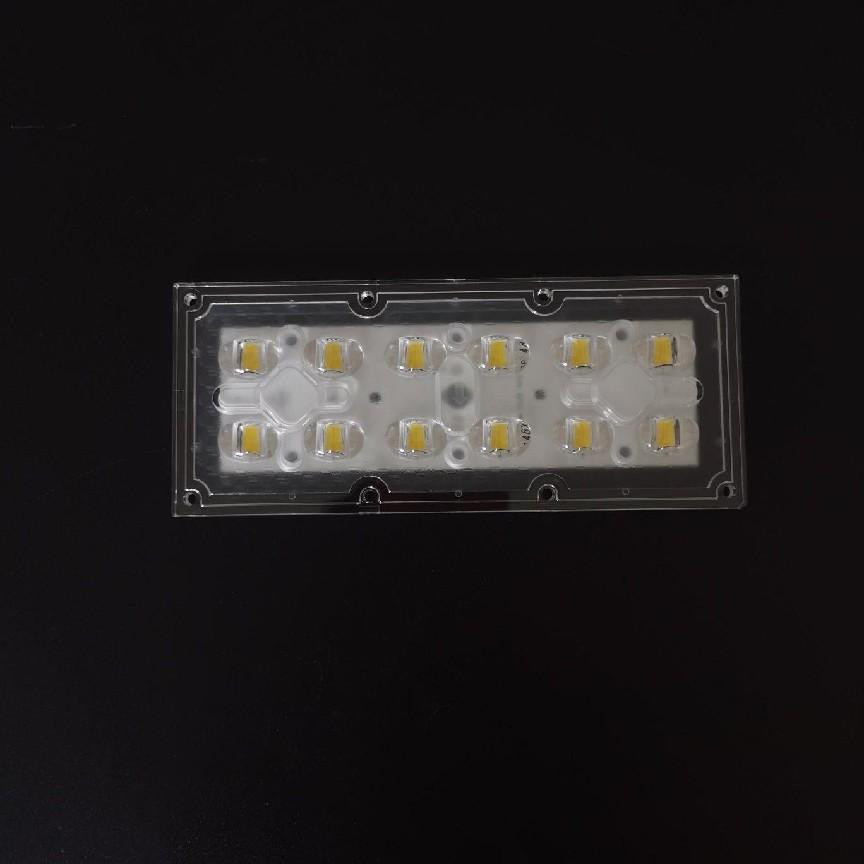

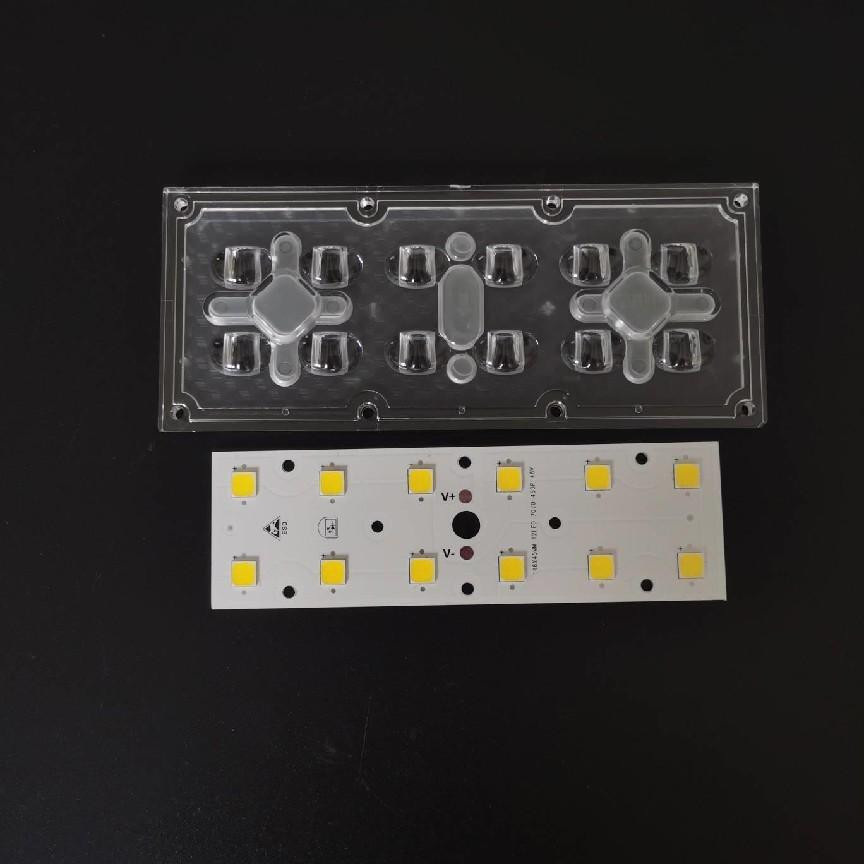

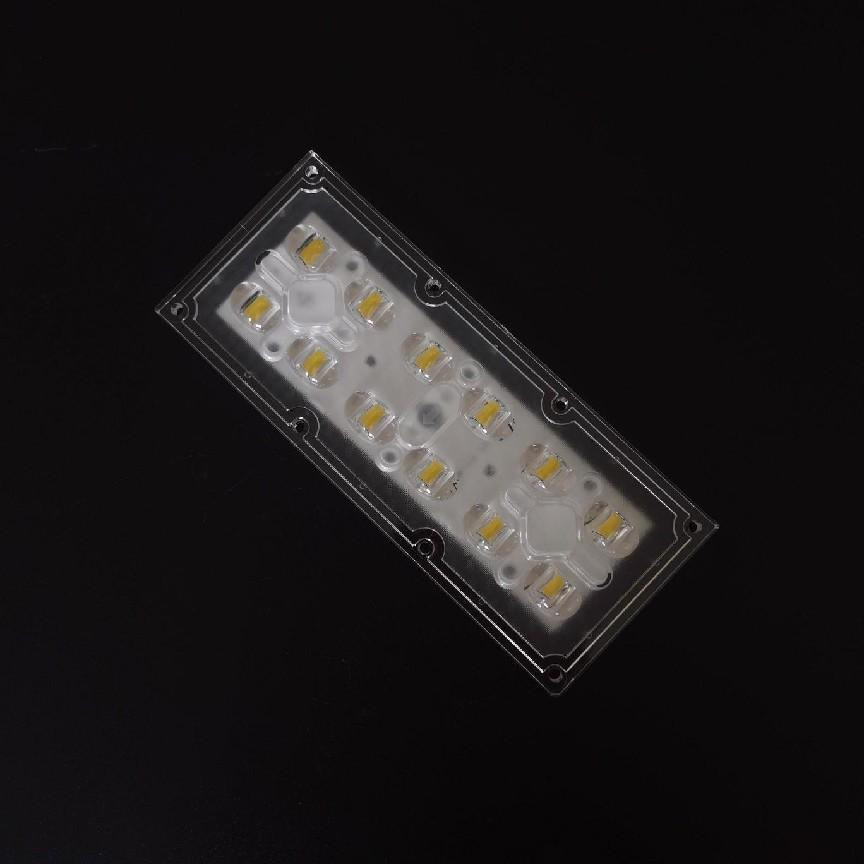

100W 28pcs 7070 SMD LED PCB Board Module For Street Lights 0

LED Lens and PCB Board Drawing :

100W 28pcs 7070 SMD LED PCB Board Module For Street Lights 2

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
