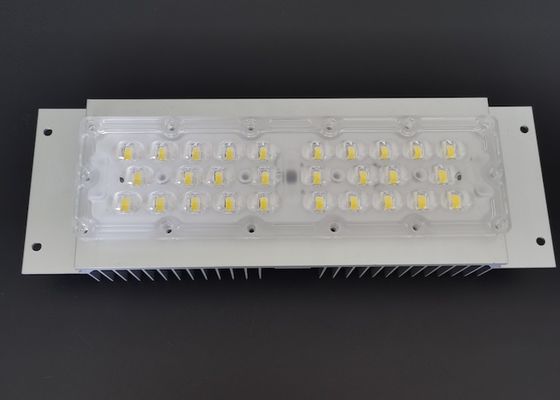

7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting

  • 7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
  • 7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
  • 7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
  • 7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting
Place of Origin Shenzhen,China
Brand Name Sunshineopto
Certification SGS,ROHS
Model Number SUN-LD236X70-28-7070-158X103
Minimum Order Quantity 1
Packaging Details 1pc/bag 1kg
Delivery Time 3-4 working days
Payment Terms T/T,PAYPAL,Western Union,Money Gram
Supply Ability 5000pcs/months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 7070 SMD Sidewalk Module PC Lens Module 50W-120W Street Light With 158x103 Degree TYPE2-M Model No. SUN-LD236X70-28-7070-158X103
Beam Angle 158x103 Degree TYPE II-M PCB Size 220x54X1.5mm
Circuit 2 SERIES 14 PARALLEL LED CHIP 5050SMD LED, 48V OUTPUT
Highlight

7070 SMD Sidewalk Module

,

PC Lens Street Light Module
Leave a Message
Product Description
7070 SMD Sidewalk Module PC Lens Street Light Module 50W-120W With 158x103 Degree TYPE2-M
Quick Detail
Model No. SUN-LD236X70-28-7070-158X103
Power (watt) 50-100w
Angle viewing 158x103 degree
Lens size 236x70mm
PCB size 220x54X1.5mm
Circuit for 5050smd led 2 series 14 parallel
LED CHIP PH 5050, White color 3000-6500k 1-5w/pc
Output voltage 48v
Lumen value 130-160lm/w for pcb board
Lense array of 12 leds Small footprint, high light output

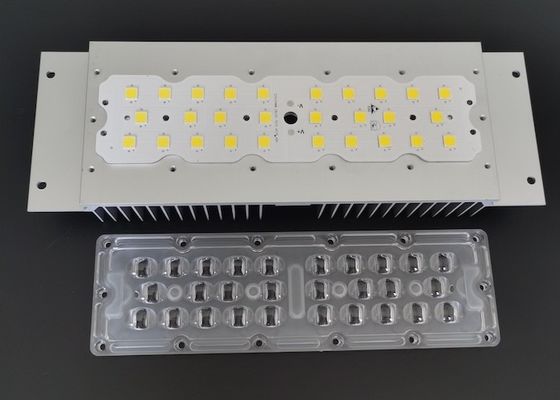

7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting 0
Key Features
  • Ideal for retrofitting old lamps or designing power lamps with SKD 28 LED Array lens and PCB Module
  • Lowest total cost solution to replace Metal Halide or HPS bulbs while reusing existing housings
  • Industry-leading thermal management technology
  • Operating temperature range: -35°C to 70°C
  • Contains no mercury or lead
  • Does not produce harmful UV rays
  • Directional light design ensures dark sky compliance and eliminates light pollution
Applications
Street lighting, highway LED lamps, tunnel lamps, square lamps, road lamps, city lighting, parking spot lamps, track lighting fixtures, scenic areas, retail lighting, and other applications requiring high luminous flux.
Technical Specifications
Product Name 7070 SMD Sidewalk Module PC Lens Module 50W-120W Street Light with 158x103 Degree TYPE2-M
Model No SUN-LD236X70-28-7070-158X103

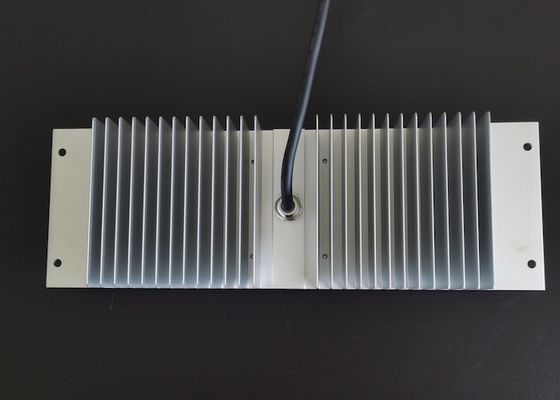

Main parts 28 Array lens, silicon gasket, PCB board with LED, heatsink
Lens Material PC
Lens size 236x70mm
Transmittance 93%
LEDS 5050SMD 1-5W LED
Sample 3-4 work days
Delivery 5-7 work days for 300 sets
Angle 158x103 degree TYPE2-M
Other angle 60 DEGREE / 90 DEGREE
Quality guarantee Defective items replaced or refunded upon providing photographic evidence
Main market Europe, South America, North America, Asia
Shipping and Delivery
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB|EXW|CIF|CFR
Sample availability YES
Delivery time 3-4 working days
Lens Dimensions and Beam Pattern
7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting 1 7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting 2 7070 SMD LED Street Light Module with 158x103 Degree Beam Angle and 5050SMD LED Chip for 50W-120W Sidewalk Lighting 3
