56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

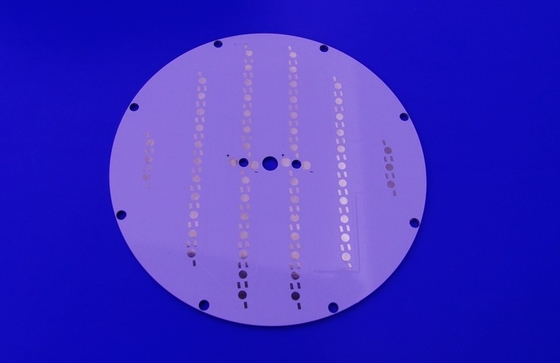

Large Image :  56W SMD LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: ROHS,LM-80
Model Number: L56W
Payment & Shipping Terms:
Minimum Order Quantity: 30PCS
Price: Need to negotiate
Delivery Time: 7-10 work days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 100pcs for one week
Detailed Product Description

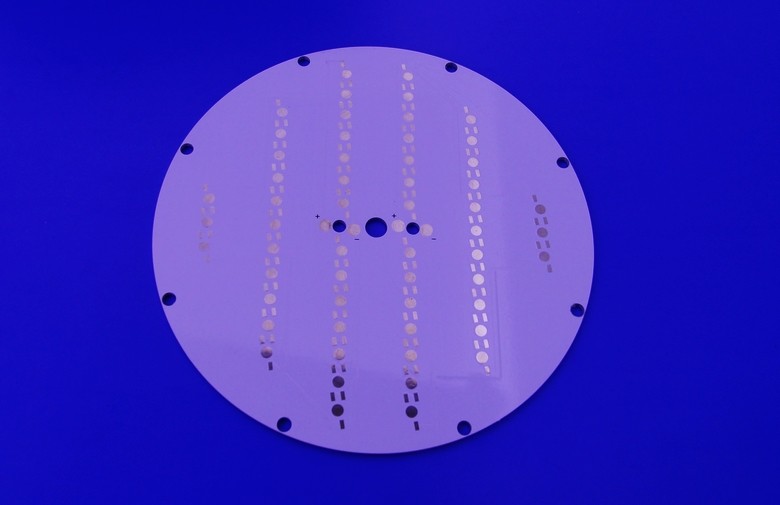

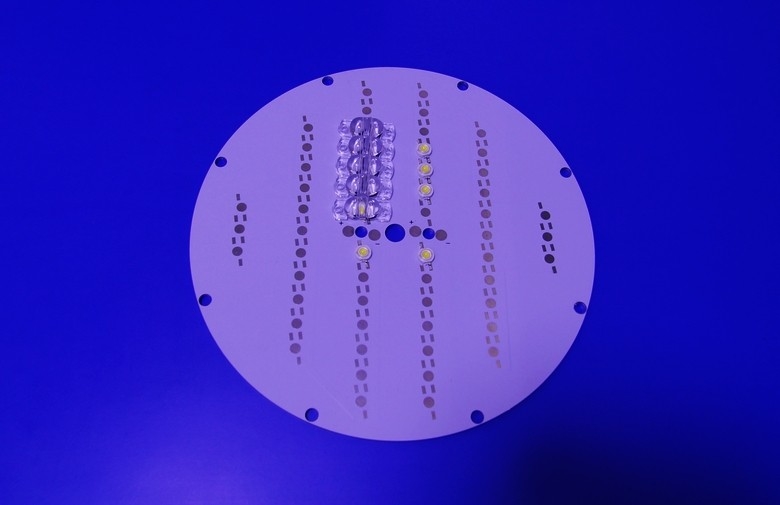

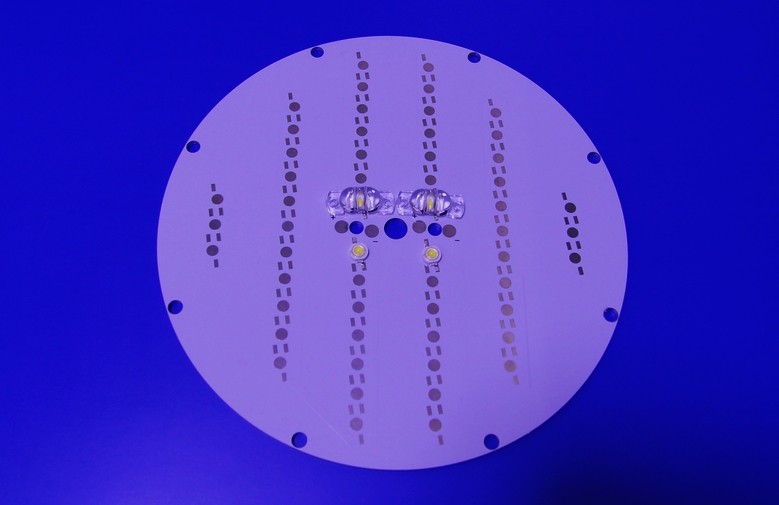

Product Name: 56W LED PCB Board Mounting Bridgelux Chips Leds DIY Customerize PCB Size: Diameter 203.2mm Thickness 3.0mm
Forward Voltage For Single LED: 3.0-3.6v Forward Current For Single LED: 350ma
Lens Size: 29.9*10.8*9.48mm Lens Beam Angle: 120x45degrss
Lens Material: PMMA Led Chip: Bridge Lux Chip Or Epistar Chip 45mil
High Light:

led light pcb


cree led pcb

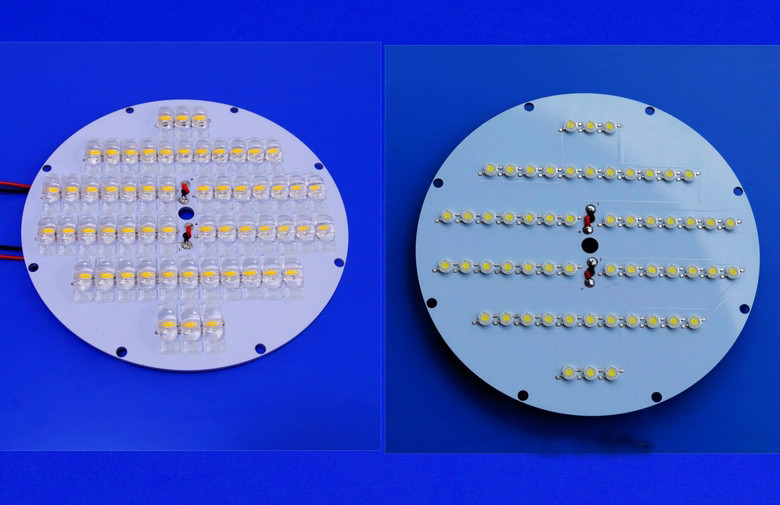

56W LED PCB Board mounting Bridgelux chips leds DIY Customerize


Quick Detail:


1. Model : L56W

2. Diameter of PCB : 203.2mm

3. Thickness : 3.0mm

4. LED chip : 45mil Bridgelux chip ,120-130lm/watt

5. CCT : 2900-3200,4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-6500K,7000-9000k.

6. Forward voltage for single LED : 3.0-3.6v.

7. Forward current for single LED : 350ma.

8. View angle for LED : 120degree

9. View angle for LENS : 120*45 degree.

10. Dimension for LENS : 29.9*10.8*9.48mm .





  1. Best raw materials used in our LED production : 1)Chip: Bridge lux chip or Epistar 45MIL chip; 2) Silicon glue: USA Dow corning (good glue has less lighting decreasing); 3) Powder: USA Intermatix (good powder has better performance in lumens);4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;5) Led base:red/ black cooper base (for better thermal conductive/ disspation) .
  2. Super high Flux output and  high Luminance  ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
  3. We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow .etc.
  4. Accept the small order and 2 years warranty .





General Illumination

- Outdoor & Indoor architectural lighting

- Decorative lighting

- Flood lighting,cast light lamps

- Street lamp,Tunnel lamp





Product Name

56W LED PCB Board mounting Bridgelux chips leds DIY Customerize

Model No



Reflow soldering


Bridge lux chip or Epistar chip 45mil




Diameter of 203.2mm,thickness of 3.0mm .




3-5 work days


7-10 work days



Quality guarantee

2 years warranty

 Main market

Europe, America,Asia



Shipping and delivery time:



4-5 work days


4-5 work days


7-15 work days

Fed Ex/TNT

3-5 work days

HK Post Air Mail Register

10-18 work ing days

Delivery time

7-10 working days



Competitive Advantage:


1.One Stop Service for LED Solutions , 6 years specializing in High Power LED industry;

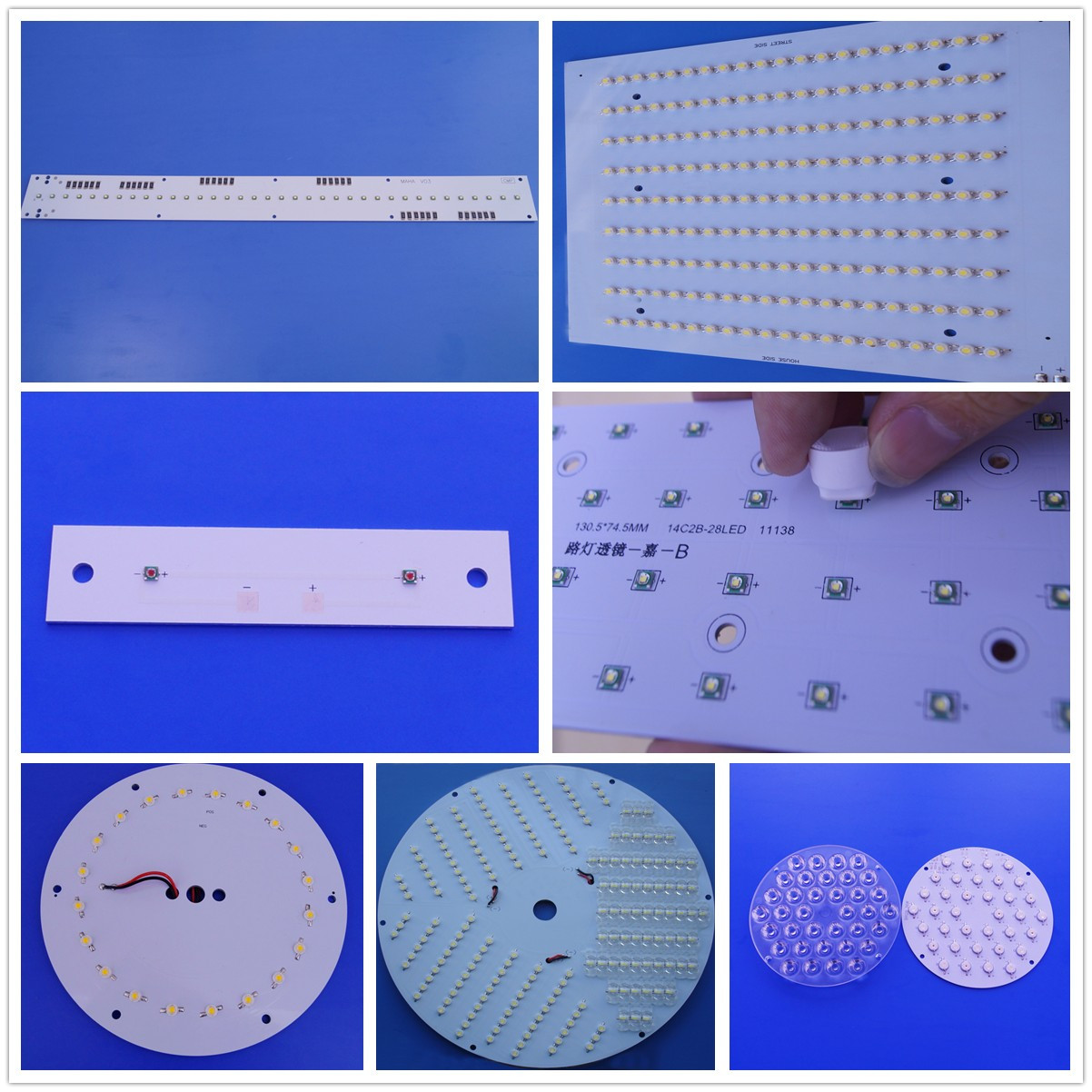

2.Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;

3.Strict process and quality control;

4.Good raw materials used in production.

5. Strong design with OEM service and production capability
