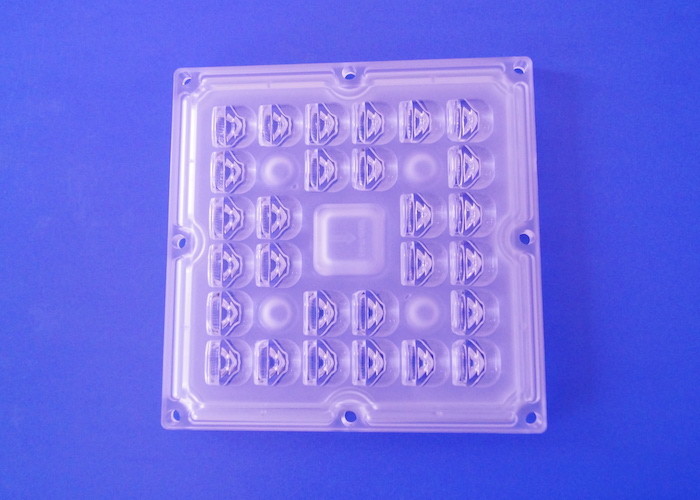

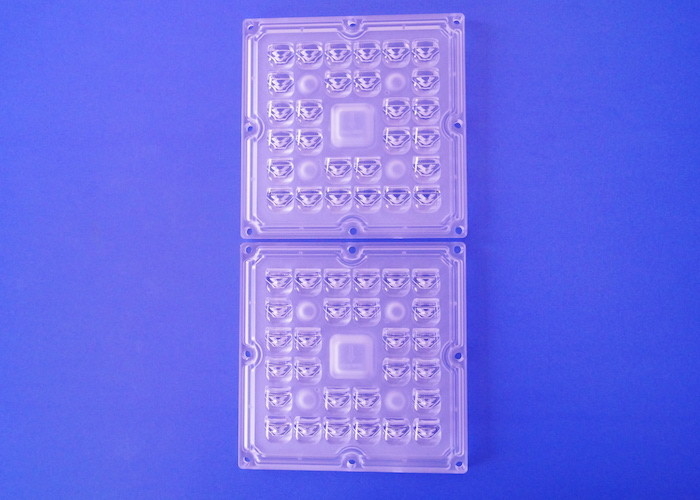

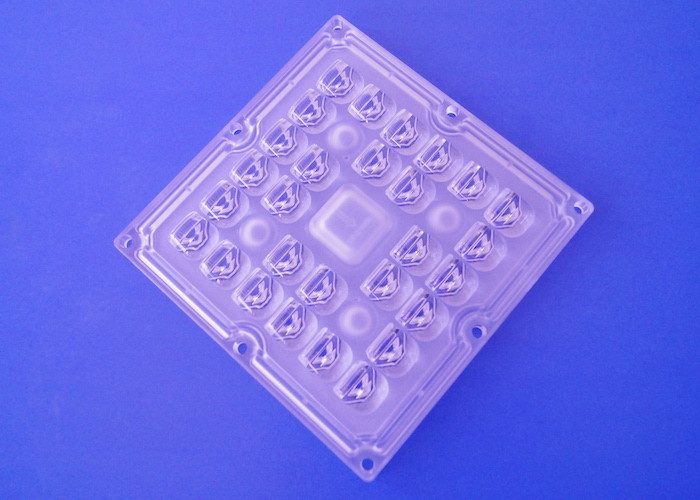

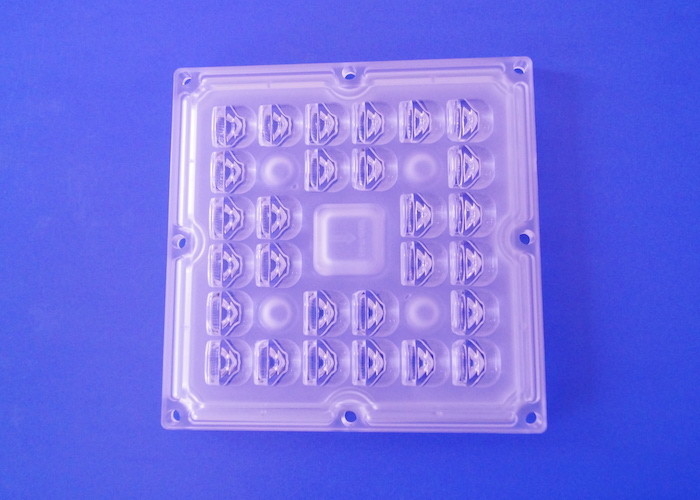

3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material

Brand Name: Sunshineopto
Model Number: SUN-D100-28H1-100X60-TPIV-S
MOQ: 1
Packaging Details: Cartons
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS,ROHS,CE
Product Name:
3535 SMD Array LED Lens 28 In 1 Square Module Lens For 30w - 50w
Model No.:
SUN-D100-28H1-100X60-TPIV-S
Beam Angle:
100X60 Degree
LENS Size:
100x100x8.5mm
Material:
Optical Grade PC
LED CHIP:
XTE2 XPG3 3535 SMD LED
Tranmittance:
91%
Application:
High Bay Light/Street Light/Square Lighting/Projection Lam And So On
PCB Size:
76x76x1.5mm
Circuit For PCB Board:
14 Series 2 Parallel
Supply Ability:
5000pcs/months
Highlight:

multi lens array

,

led light array

Product Description
3535 SMD LED Lens Array 28 In 1 Square Module
High-Performance LED Module for 30W-50W Applications

This 3535 SMD Array LED lens 28 in 1 square module provides an efficient retrofit solution for existing lighting systems, delivering superior performance with minimal installation costs.

Quick Details
Model No SUN-D100-28H1-100X60-TPIV-S
Material PC
Beam Angle 100×60 degree / TYPE IV -S
Lens Size 100×100×8.5mm
PCB Size 76×76×1.5mm
Circuit 14 series 2 parallel
Compatible LED 3535 SMD LED / 3030 SMD LED
Key Features
  • Ideal retrofit solution for replacing 100W traditional lamps with 28-50W LED efficiency
  • Cost-effective alternative to complete fixture replacement - reuse existing housings
  • Advanced thermal management technology for optimal performance
  • Wide operating temperature range: -35°C to +70°C
  • Mercury-free and lead-free construction
  • No harmful UV radiation emission
  • Directional lighting design minimizes light pollution and ensures dark sky compliance
  • Multiple beam angle options available: 60°, 90°, 150°, 117×52°, 100×140°, 181×51°
Applications
Street lighting, highway lamps, tunnel lighting, square illumination, road lighting, urban lighting systems, parking spot lighting, track lighting fixtures, landscape lighting, retail lighting, and other applications requiring high luminous flux.
Technical Specifications
Product Name 3535 SMD Array LED Lens 28 in 1 Square Module for 30W-50W
Model No SUN-D100-28H1-100X60-TPIV-S
Main Components 28 Array lens, silicon gasket, PCB, XTE/XPG 3535 SMD LED
Lens Material PC
Lens Size 100×100×8.5mm
Transmittance 91%
LED Specifications 3535 SMD LED 3V, 1-5W
Sample Availability 3-4 working days
Production Delivery 5-7 working days for 10,000 sets
Beam Angle 100×60 degree
Quality Guarantee Defective item replacement or refund with photo documentation
Primary Markets Europe, South America, North America, Asia
Shipping & Delivery
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CIF | CFR
Sample Availability Yes
Delivery Time 3-4 working days
Product Dimensions & Specifications
3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 0
Beam Pattern Analysis
3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 1
3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 2
Lens Performance Ratings
3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 3
3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 4
Application Examples
3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 5
3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 6
