120 Degree 3030SMD 64 LED Modules and Optical Lenses High bay lights

120 Degree 3030SMD 64 LED Modules and Optical Lenses High bay lights

led light replacements

street light led retrofit

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-J64-3030-120

Contact Us

Request A Quote
Product Details
Product Name:
90 Degree 3030SMD 64 LED Modules And Optical Lenses High Bay Lights
Model No.:
SUN-J64-3030-120
Beam Angle:
120 Degree
LENS Size:
110mm Diameter, 6.8mm Of Height
Material:
Optical Grade PC
LED CHIP:
3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance:
91%
Application:
High Bay Light/Street Light
PCB Size:
92.8mm Diameter, 1.5mm Thickness
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description


120 Degree 3030SMD 64 LED Modules and Optical Lenses High bay lights

Quick Detail:

Model No:SUN-J64-3030-120
Material: PC
Beam Angle : 120 degree
Lens size:110mm diameter
PCB size:92.8mm diameter
Match LED: 3030SMD LED
Small footprint, high light output


Features :

  1. This SKD 64 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 55W,110W  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 90/120 degree.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

120 Degree 3030SMD 64 LED Modules and Optical Lenses High bay lights

2, Model No

SUN-J64-3030-120

3, Main parts

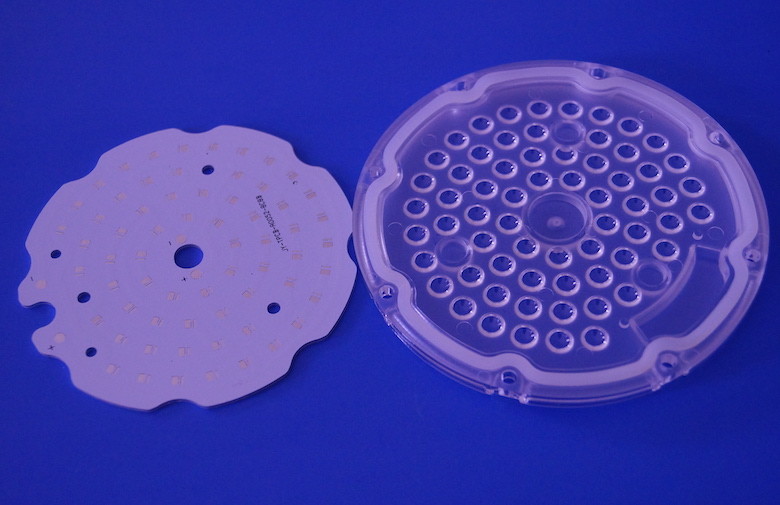

 Array lens , silicon gasket and PCB board

4, Lens Material

PC

5, Lens size

110mm diameter, 6.8mm height

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

120 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



LENS Dimensions :
 120 Degree 3030SMD 64 LED Modules and Optical Lenses High bay lights 0
Dimensions for silicon gasket:
120 Degree 3030SMD 64 LED Modules and Optical Lenses High bay lights 1
Beam pattern:
 120 Degree 3030SMD 64 LED Modules and Optical Lenses High bay lights 2

PCB board size:
 120 Degree 3030SMD 64 LED Modules and Optical Lenses High bay lights 3
