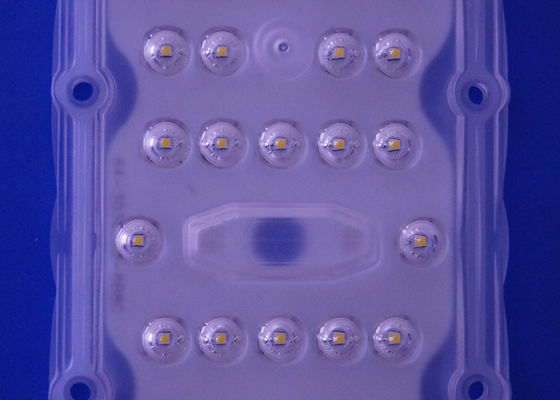

130 Degree Angle 50W LED Street Light Module Parking Lot Lights Retrofit Kits
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | SunshineOpto |
| Certification | SGS/ROHS |
| Model Number | SUN-L64W-130 |
| Minimum Order Quantity | 20 |
| Price | need to negotiation |
| Packaging Details | 20 sets/Carton . |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T, Western Union, MoneyGram,PayPal |
| Supply Ability | 5000 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Kits | Led Lens With Silicon Gasket ,pcb Welding 3030 Leds | Lens Size | 236*70mm |
|---|---|---|---|
| Lens Angle | 130 Degree | PCB Size | 217.7x43.5x1.5mm |
| PCB Circuit | 8 Series 8 Parallel | Match Leds | 3030 Led |
| Highlight | led light replacements,led lighting module |
||
Product Description
130 Degree 50W Led Parking Lot Lights Retrofit Kits
1, The module uses high-quality 3030 leds and we provide 2 years warranty .
2, The whole module can support 40watt-50watt ,The luminous efficiency can reach 130-140lm/watt ,
3, The size of this module is 236*70mm ,It's more common and can be used to replace old products .
4, 130 degree large angle can support the requirements of parking lot light .
Quick Details :
| Model No.: | SUN-L64W-130 |
| Angle: | 130 degree |
| Lens Size: | 236x70mm |
| PCB Size: | 217.7x43.5x1.5mm |
| Lens Material: | Optical grade PC |
| Circuit: | 8 series 8 parallel |
| LED: | 64 pcs 3030 SMD LED |
Technical Parameters :
| Model No. | SUN-L64W-130 | ||
| Power(W) | 40 | 50 | |
| Voltage(Vf/V) | 47.65 | 48.72 | |
| Current(If/mA) | 898.2 | 1098.1 | |
| Color Temp Tc(K) | 4000 | 4000 | |
| Efficiency (lm/W) | Without lens | 160.78 | 153.79 |
| with lens | 143.27 | 135.78 | |
| Luminous Flux (φv/lm) | without lens | 6881 | 8228 |
| with lens | 6125 | 7322 | |
| Color Index(Ra) | ＞70 | ＞70 | |
| Lens beam angle | 130 degree | ||
| Wick | 64 pcs 3030 leds | ||
| Protection level | IP66 | ||
| Working temperature(℃) | -30-50 | ||
| storage temperature(℃) | -30-65 | ||
| Server Life(H) | 50000 | ||

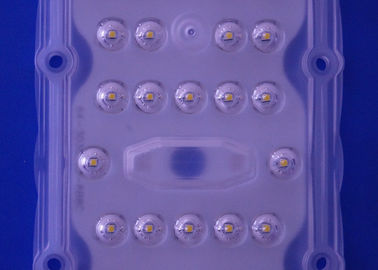

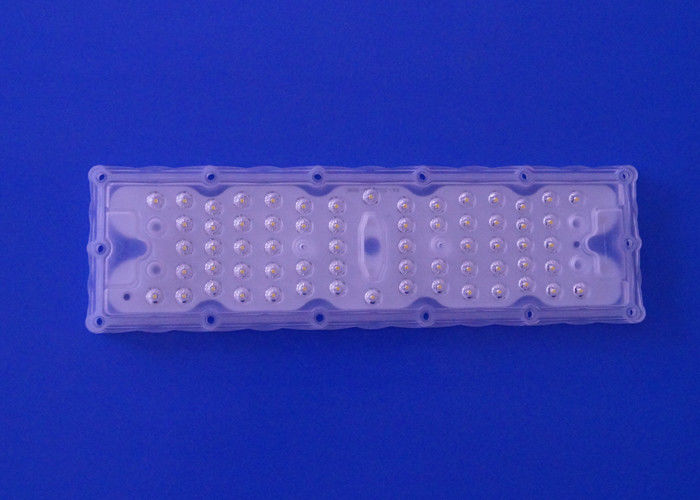

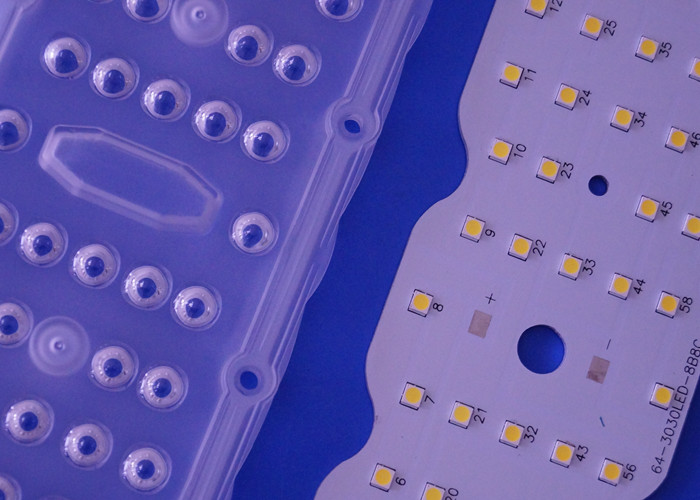

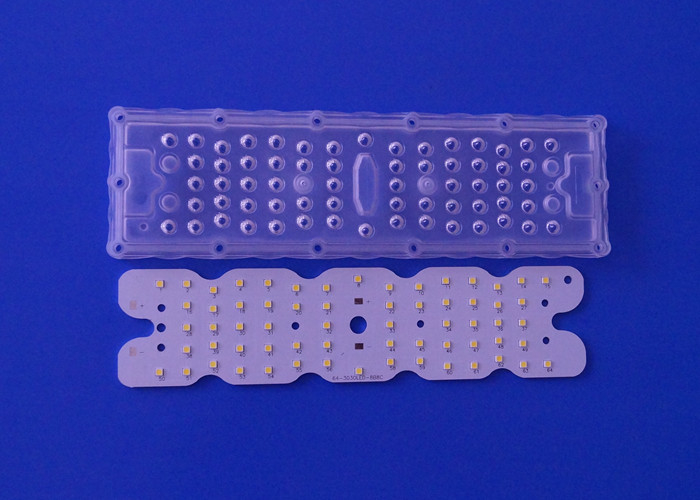

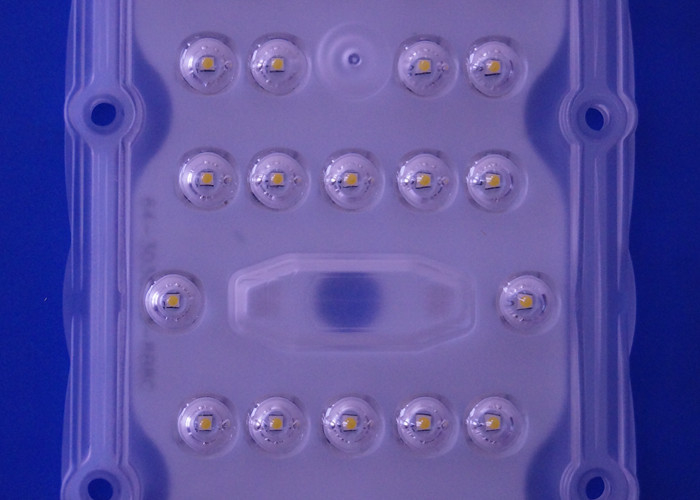

Product Picture :
We provide led street light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .
Light Distribution :
Package :
20sets/carton ,14kg ,55*33*21cm .
Application :
Parking lot light ,Highway lamp ,street light ,etc .
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
