Created with Pixso. 150w 3030 SMD LED Street Light Module 60/90/120 Degree For UFO High Bay Light
150w 3030 SMD LED Street Light Module 60/90/120 Degree For UFO High Bay Light
  • name
  • name
  • name

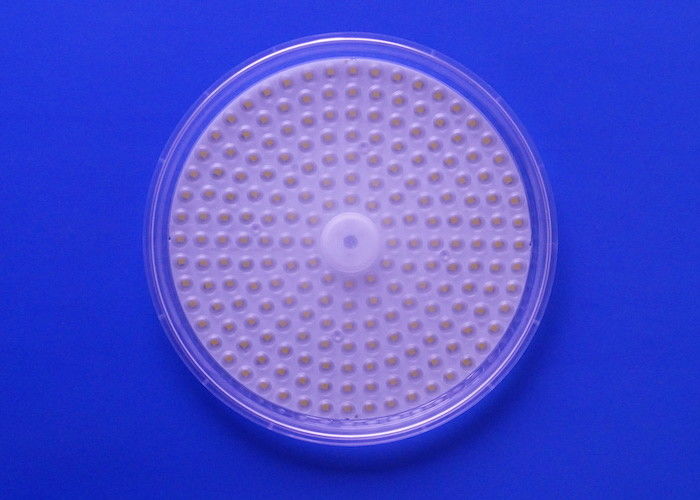

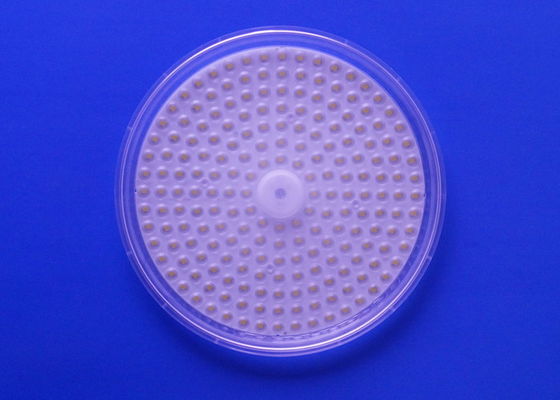

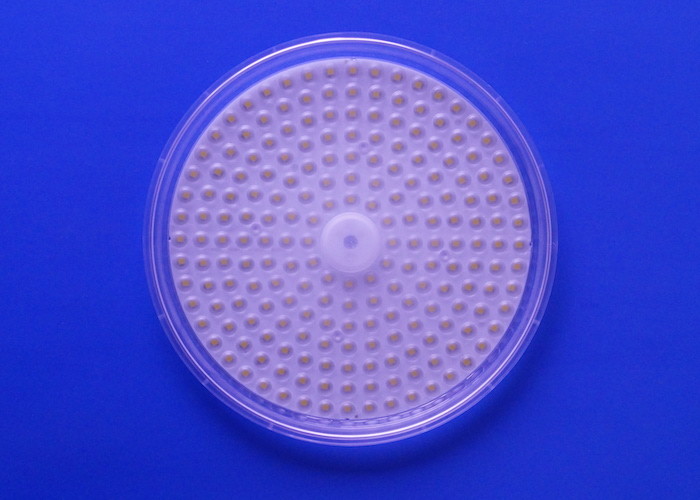

150w 3030 SMD LED Street Light Module 60/90/120 Degree For UFO High Bay Light

Brand Name: Sunshineopto
Model Number: HH-49-204-60-3030
MOQ: 1
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS,ROHS
Product Name:
Hot Sale 150w 3030 SMD LED UFO High Bay Light Module 60/90/120 Degree
Model No.:
HH-49-204-90-3030
Beam Angle:
60,90, 120 Degree
LENS Size:
Dia 200mm Height 7.48mm
Material:
Optical Grade PC
LED CHIP:
3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance:
91%
Application:
High Bay Light/Street Light
PCB Size:
195mm Diameter, 1.5mm Thickness
Circuit:
6 Series 34 Parallel
Packaging Details:
Cartons
Supply Ability:
5000pcs/months
Highlight:

street light led retrofit

,

led light replacements

Product Description

Hot sale 150w 3030 SMD LED UFO High Bay light module 60/90/120 degree



Quick Detail:

Model No: HH-49-204-60-3030
Material: PC
Beam Angle : 60/90/120 degree
Lens size: Dia 200mm Height 7.48mm
PCB size: 195mm diameter, 1.5mm thickness
Match LED: 3030SMD LED
Small footprint, high light output


Features :

  1. This SKD 204 LED Array lens with PCB Module is best choice for High bay light 150w.
  2. Industry-leading thermal management utilizing technology
  3. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  4. The LED retrofit kits contain no any mercury or lead.
  5. Does not produce UV rays that harm people’s eyes.
  6. Directional light means no light pollution, dark sky compliance.
  7. Optic lenses are available for projects that need smaller beam angles, like 90/120 degree.


Specifications:


1, Product Name

Hot sale 150w 3030 SMD LED UFO High Bay light module 60/90/120 degree

2, Model No

HH-49-204-90-3030

3, Main parts

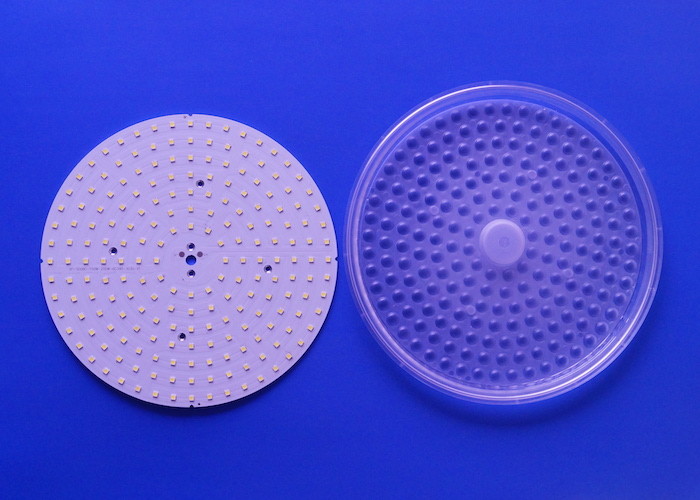

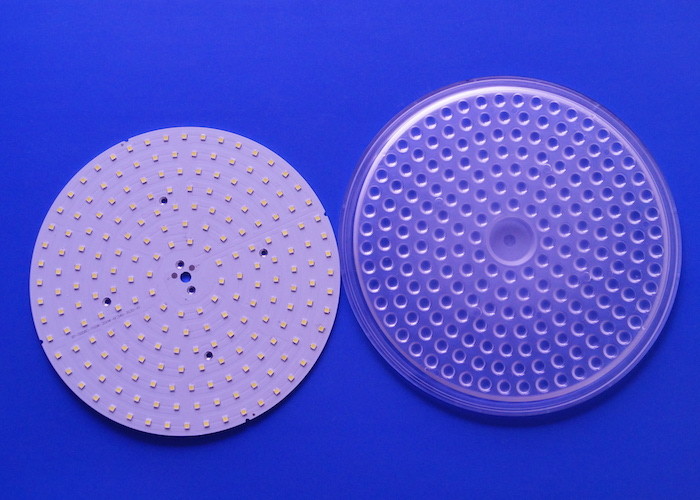

 Round lens and  PCB board with lens

4, Lens Material

PC

5, Lens size

Dia 200mm Height 7.48mm

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

7-10  work days for 10000 sets

10, Angle

60 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



LENS Dimensions :
150w 3030 SMD LED Street Light Module 60/90/120 Degree For UFO High Bay Light 0

Beam pattern:

 150w 3030 SMD LED Street Light Module 60/90/120 Degree For UFO High Bay Light 1
Heat sink size:
 150w 3030 SMD LED Street Light Module 60/90/120 Degree For UFO High Bay Light 2


Any request or question , please freely contact me by :

Yuan Hu

EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56
Whatsapp:+86-18665803783

Mobile: +86-18665803783
QQ:1831466204

Wechat:Helen1404
