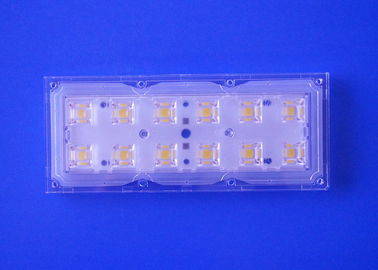

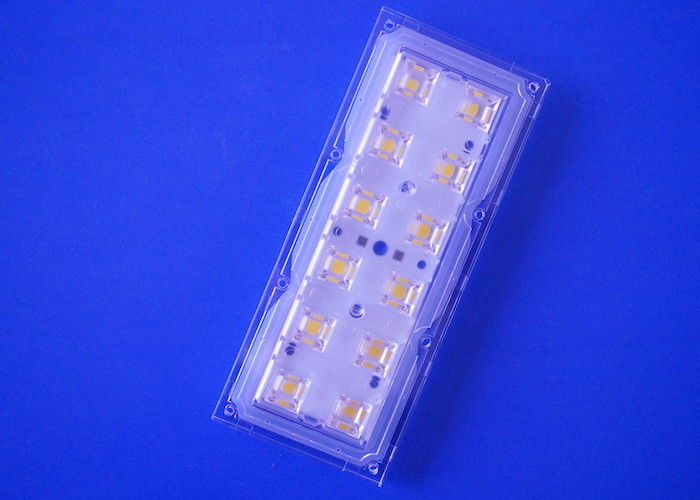

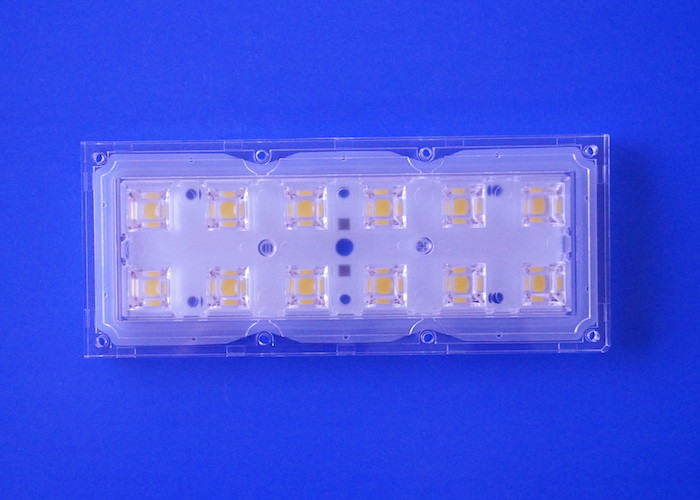

12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp

China 12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp supplier
12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp supplier 12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp supplier 12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp supplier

Large Image :  12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-LD2X6CR60X60

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: 1pc/bag 1kg
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Contact Now
Detailed Product Description
Product Name: 12W 30W 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp Model No.: SUN-LD2X6CR60X60
Beam Angle: 60x60 Degree LENS Size: 173X71.4X11.5MM
PCB Size: 145X47X1.5mm Circuit: 2 SERIES 6 PARALLEL
LED CHIP: 5050SMD LED 24V 160mA Material: Optical Grade PC
CRI: 70/80 Type: Round Pattern

12W 30W 2X6 LED High bay module 5050SMD CHIP 5000LM replace older lamp





Quick Detail:



Model No:SUN-LD2X6CR60X60

Material: PC

Beam Angle : 60X60degree

Lens size:173X71.4X11.5mm

Circuit: 2 series 6 parallel

Led chips:5050SMD LED 24V

Lense array of 12 LEDs

Small footprint, high light output





Features :



  1. This SKD 12 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 30W,60W,90W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like

    129X55degree ,60X60 degree ,12 degree ,30X90 degree ,30degree ,90 degree etc.

.



Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





Specifications:



1, Product Name

12W 30W 2X6 LED High bay module 5050SMD CHIP 5000LM replace older lamp

2, Model No

SUN-LD2X6CR60X60

3, Main parts

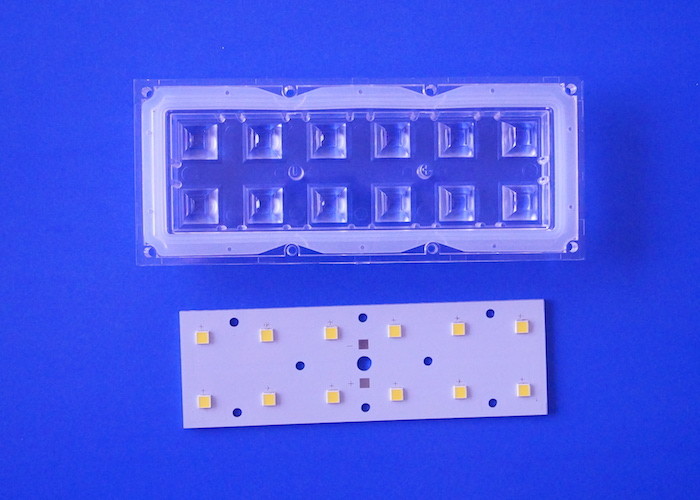

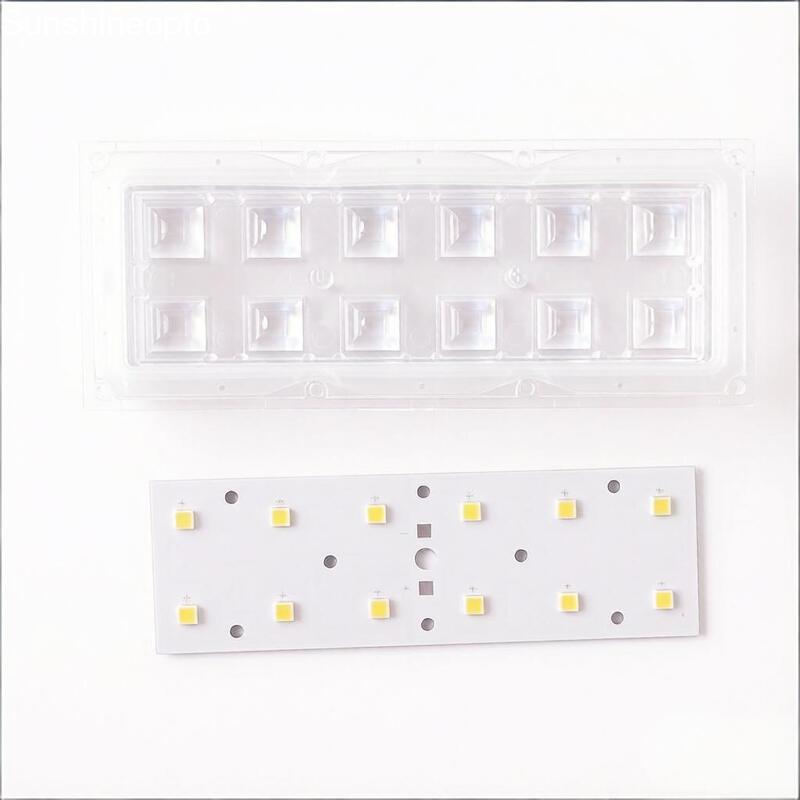

12 Array lens , silicon gasket + PCB board with LED

4, Lens Material

PC

5, Lens size

173X71.4X11.5mm

6, Transmittance

93%

7,LEDS

5050SMD 1-5W 24V LED

8, Sample

3-4 work day

9, Delivery

5-7 work days for 300 sets

10, Angle

60X60 DEGREE

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia





Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp





2x6 LENS Dimensions And Beam pattern:



12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp



12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp

LED module with heat sink:



12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp



12/30 Watt 2X6 LED High Bay Module 5050SMD CHIP 5000LM Replace Older Lamp
