80mm Bridgelux LED PCB Module Custom Aluminum PCB Board with 350mA Constant Current Design

Brand Name:	Sunshineopto
Model Number:	L9W
MOQ:	100 pcs
Price:	Need to negotiate
Packaging Details:	cartons
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,LM-80,CE,SGS

PCB Size:

Diameter 80mm Thickness 2.0mm

Lens Size:

100x16mm

Forward Voltage For Single LED:

3.0-3.6V

Forward Current For Single LED:

350mA

Beam Angle:

20 Degree

LED Chip:

Bridge Lux Chip Or Epistar 45MIL Chip

Supply Ability:

10000pcs for one month

Highlight:

cree led pcb

led light pcb

Product Description

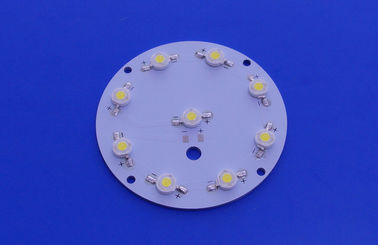

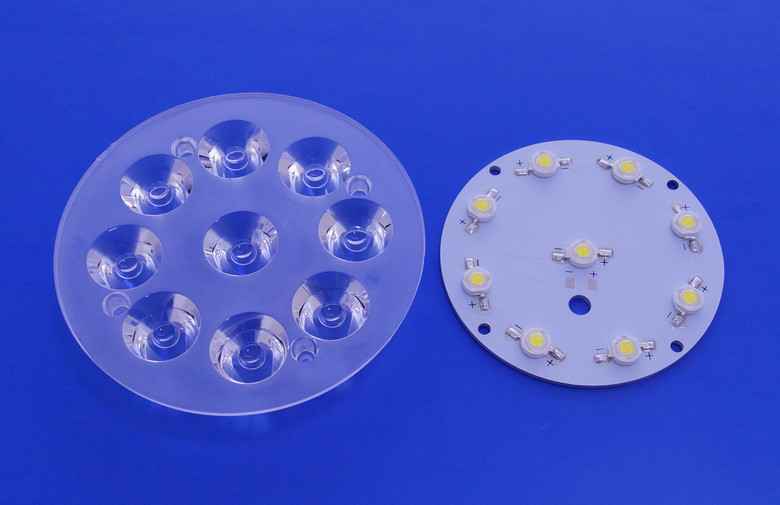

80mm Bridgelux LED PCB Module Custom Aluminum PCB Board with 350mA Constant Current Design

Product Description

The 80mm Bridgelux LED PCB Module is a customized aluminum-based MCPCB solution developed for professional LED lighting manufacturers and OEM lighting projects.Equipped with high-quality Bridgelux LED chips and designed around a stable 350mA constant-current operating platform, this module delivers excellent luminous efficacy, thermal management, and long-term reliability. The 80mm circular design provides optimal compatibility for compact lighting fixtures and modular lighting systems.Built using high thermal conductivity aluminum substrate technology, the module effectively dissipates heat generated during operation, ensuring stable light output and extended LED lifespan.This LED PCB module is widely used in downlights, spotlights, commercial lighting, architectural lighting, retail lighting, industrial luminaires, and customized LED lighting systems.

Key Features

Provides stable luminous performance, high efficacy, and consistent color quality.
Ideal for compact luminaires and integrated lighting modules
Supports customized LED layouts, circuit designs, and assembly services.
Suitable for demanding commercial and industrial applications.
Long lifespan reduces maintenance and replacement costs.

Technical Specifications

Model No.	L9W
Finishing	Reflow soldering
Material	Bridge lux chip or Epistar chip 45mil
Diameter of PCB	80mm
Thickness	2.0mm

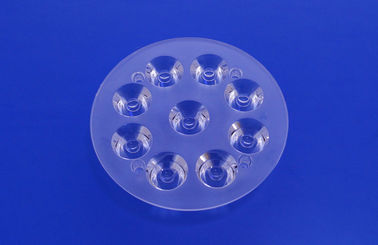

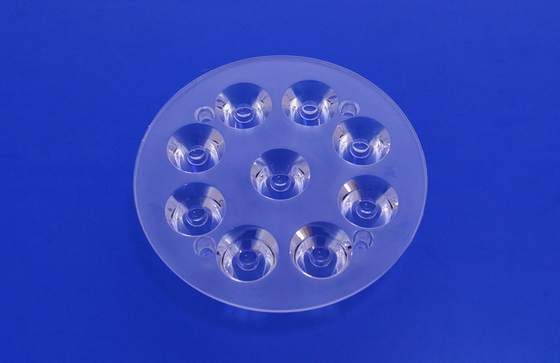

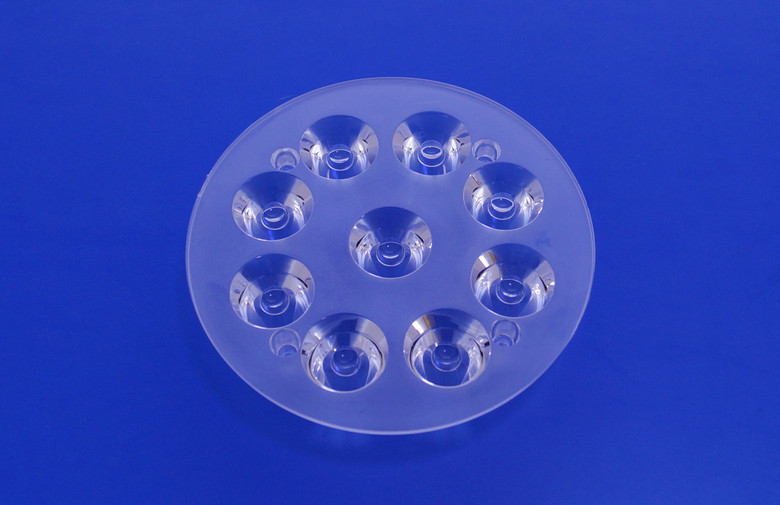

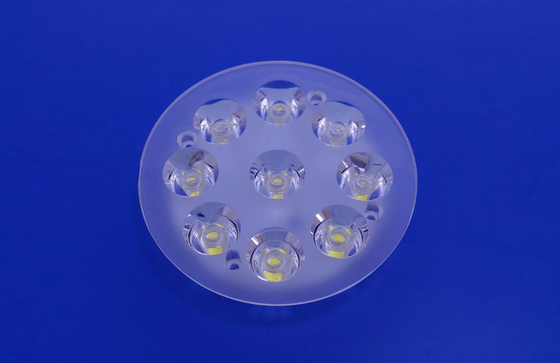

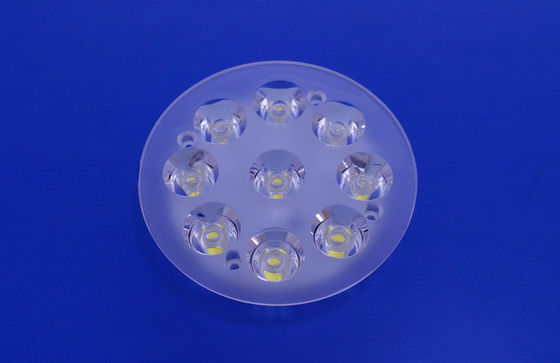

Dimension for LENS	100x16mm
Package	0.38kg/pc
View angle for LED	120 degree
View angle for LENS	20 degree
LED chip	45mil Bridgelux chip, 120-130lm/watt
CCT	2900-3200, 4000-4500k, 4500-5000k, 5000-5500k, 5500-6000k, 6000-6500K, 7000-9000k
Forward voltage for single LED	3.0-3.6V
Forward current for single LED	350mA
Quality guarantee	2 years warranty

GET A FREE QUOTE NOW.

Competitive Advantages

One Stop Service for LED Solutions with 6 years specializing in High Power LED industry
Complete supplying system with full range of products including high power LEDs, LED optical lenses, LED constant drivers, MCPCB modules and various LED light components
Strict process and quality control
Premium raw materials used in production
Strong design capabilities with comprehensive OEM service and production capacity

Applications

General Illumination
Outdoor & Indoor architectural lighting
Decorative lighting
Flood lighting, cast light lamps
Street lamp, Tunnel lamp

Shipping & Delivery Time

Shipping Method	Delivery Time
DHL	4-5 work days
UPS	4-5 work days
EMS	7-15 work days
Fed Ex/TNT	3-5 work days
HK Post Air Mail Register	10-18 working days
Production Delivery Time	7-10 working days

Buyer Information

1. Please confirm receipt of products upon delivery. If items are damaged, contact us immediately with photos for assessment and resolution.

2. We guarantee timely dispatch but cannot control express delivery times. Our sales team will provide tracking numbers on the next business day. You may also contact local branches of the shipping company for updates.

Frequently Asked Questions

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample orders for quality testing. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples require 3-5 days, mass production takes 1-2 weeks for orders exceeding minimum quantity.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ available - 1pc for sample checking.

Q4. How do you ship the goods and how long does it take to arrive?

A: We typically ship via DHL, UPS, FedEx or TNT (3-5 days delivery). Airline and sea shipping options also available.

Q5. How to proceed an order for led light?

A: Process: 1) Share your requirements/application; 2) We provide quotation; 3) Customer confirms samples and places deposit; 4) We arrange production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us before production and confirm design based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-year warranty on our products.

Q8: How to deal with the faulty?

A: Our strict quality control maintains defective rate below 0.2%. During warranty, we replace small quantities with new orders. For defective batches, we repair and resend or discuss appropriate solutions including recalls.

For customization requirements, please contact us
