12V 24V Customized Solar Led Light PCB Board XTE / XPG3 LED Plate Aluminium Material
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 24V Customized Solar LED Light Circuit Boards XTE / XPG3 LED Plate | Model No. | SUN-LD145X75CR830B |
|---|---|---|---|
| Thermal Conductivity | 1w/m.k | Layer | 1 |
| Material | Aluminium | Match LED | 3535 SMD LED |
| Board Thickness | 1.5mm Or 2.0mm | Solder Mask | White Color |
| PCB Size | 128.4x73.4x2.0mm | Circuit For PCB Board | 3 Series 8 Parallel/ 8 Series 3 Parallel |
| Highlight | led light pcb,cree led pcb |
||
Product Description

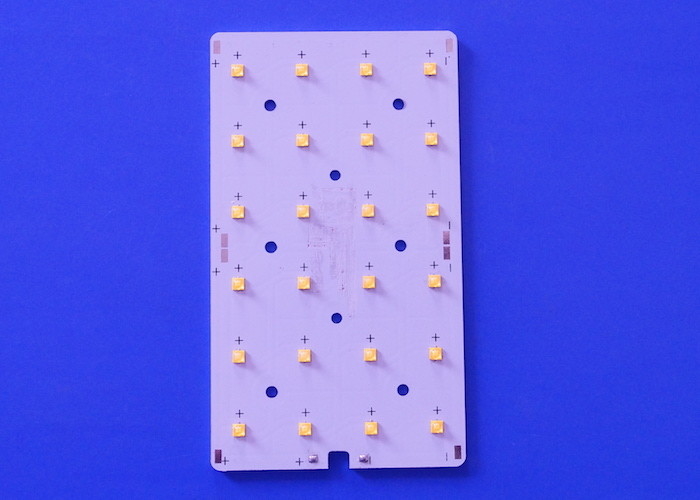

12V 24V Customized Solar LED Light Circuit Boards XTE / XPG3 LED Plate
Product Feature:
1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use CR3535 leds ,High quality leds guarantee long life .
3. We have a competitive price for CR3535 leds .
4. We can according your requirements to desion new Lens and Board.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
|
1, Product Name |
12V 24V Customized Solar LED Light Circuit Boards XTE / XPG3 LED Plate |
|
2, Model No |
SUN-LD145X75CR830B |
|
3, Main parts |
24 Array lens , silicon gasket+PCB+ 3535 SMD LED |
|
4, Material |
PC for lens, Aluminium for PCB board |
|
5, Lens size |
162x107mm |
|
6, Transmittance |
91% |
|
7,LEDS |
XTE 150-160LM/W |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 10000 sets |
|
10, PCB SIZE |
128.4x73.4x2.0mm |
| 11,Surface finish | HASL-LEAD FREE |
|
12, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| 13,Test way | 100% TEST |
|
15, Main market |
Europe, South America,North America, Asia |
Related products:
|
Model No. |
Power(W) |
Angle( degree) | Lens size(mm) | PCB size(mm) | Circuit |
|
SUN-LD236x70-5050-30/60/90 |
50-100W |
30/60/90 | 236X70 |
217.7x43.5x1.5 |
2S14P |
|
SUN-LD236X70-5050-90X120 |
50-100W | 90X120 | 236X70 |
217.7x43.5x1.5 |
2S14P |
|
SUN-LD236X70-5050-80X150 |
50-100W | 80X150 | 236X70 |
217.7x43.5x1.5 |
2S14P |
|
SUN-LD270x75-5050-TYPE3-M |
50-100W |
TYPE3 | 270X75 |
250x56x1.5 |
2S14P |
|
SUN-LD270X75-5050-TYPE4-S
|
50-100W |
TYPE4 | 270X75 | 250x56x1.5 | 2S14P |
|
SUN-LD270x75-5050-90 |
50-100W | 90 | 270X75 | 250x56x1.5 | 2S14P |
|
SUN-J5050-6H1-60/90 |
6-20W |
60/90 |
50x50x6.26 |
65.83x45x1.6 |
|
|
SUN-J5050-6H1-TYPE3 |
6-20W |
TYPE3 |
50x50x6.26 |
65.83x45x1.6 |
Beam pattern:
Lens size:
Why choosing us - SUNSHINEOPTO ?
1. About 8 years specializing in High Power LED.
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components.
3. Strict process and quality control.
4. Good raw materials used in production.
5. Strong design and production capability.
