Street Lighting LED Collimator Lens , 30W PC Led Road Lamp Street Lens

Street Lighting LED Collimator Lens , 30W PC Led Road Lamp Street Lens

high power LED Lens

Led light lens

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name::
Street Lighting LED Collimator Lens , 30W PC Led Road Lamp Street Lens
Beam Angle ::
65X120 Degree
Lens Size::
10 Series 3 Parallel
Led Chips::
Luexon ,Edison K2 ,P4
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
1pc/bag 1kg
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
Product Description

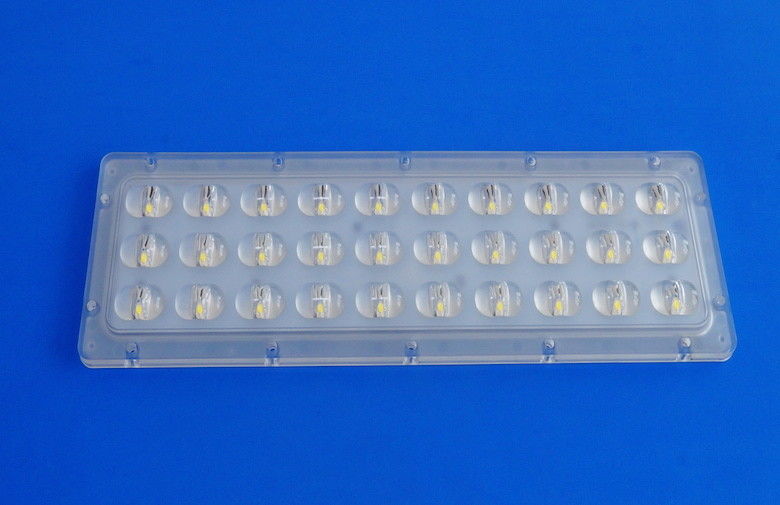

Street Lighting Led Collimator Lens , 30W PC Led Road Lamp Street Lens


Quick Detail:


Model No:SUN-LD250X74ED

Material: PC

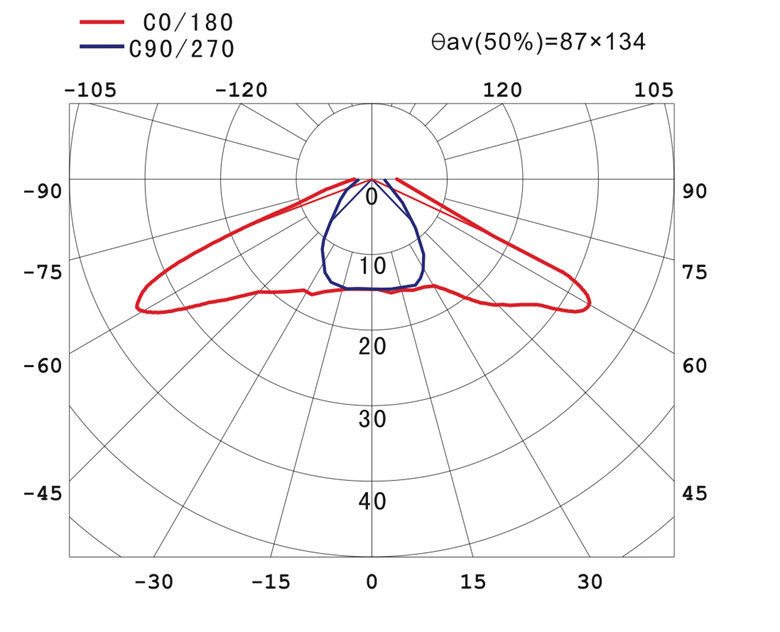

Beam Angle :65X120 degree

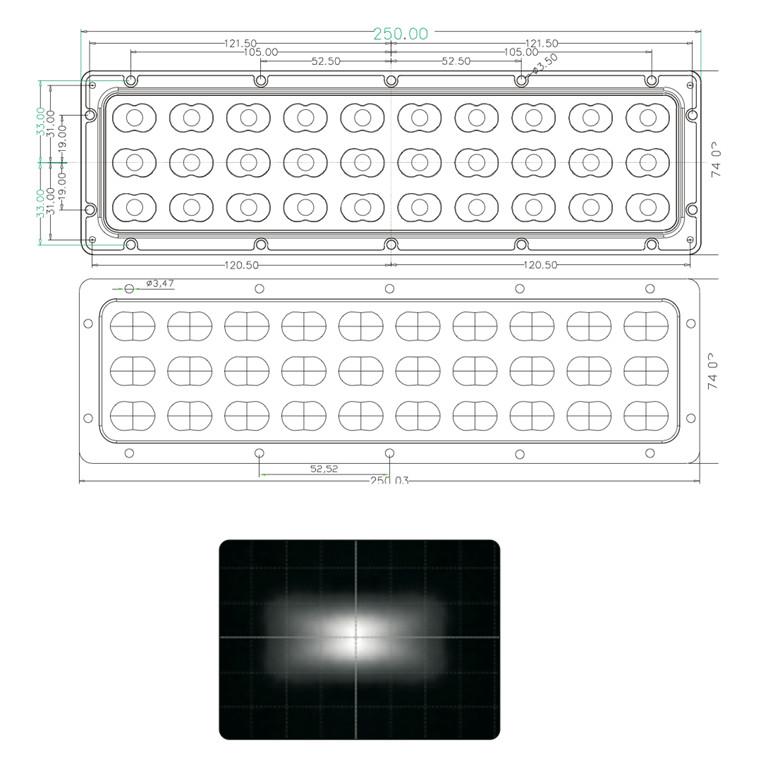

Lens size:250X74mm

Circuit: 10 series 3 parallel

Led chips:Luexon ,Edison K2 ,P4

Lense array of 30 LEDs

Small footprint, high light output



Features :

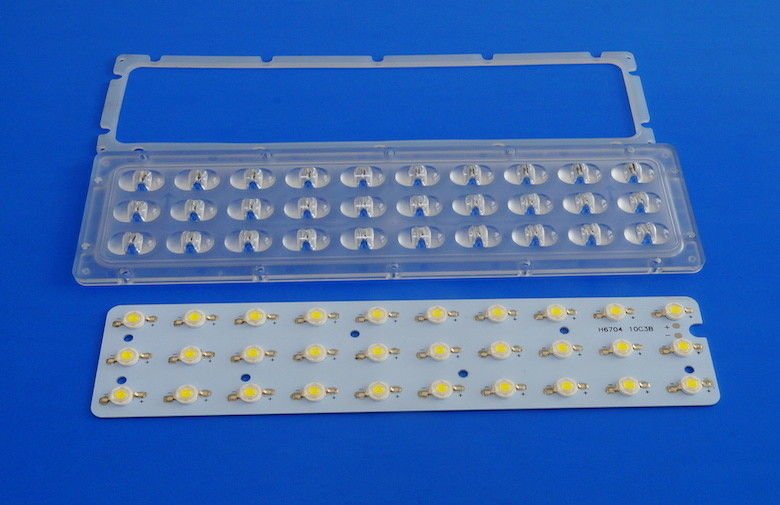

  1. This SKD 3x10 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 30W,60W,90W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 70x126°, 140x70°,120x60°, 90x126°,60x60° etc.





It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





1, Product Name

Street Lighting Led Collimator Lens , 30W PC Led Road Lamp Street Lens

2, Model No


3, Main parts

30W Array lens , silicon gasket

4, Lens Material


5, Lens size


6, Transmittance




8, Sample

3-4 work day

9, Delivery

7-10 work days for 100 sets

10, Angle

65x120 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:



4-5 working days


10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms


Sample availability


Delivery time

3-4 working days



Competitive Advantage:


1). Using high quality for Edison,P4

2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.
