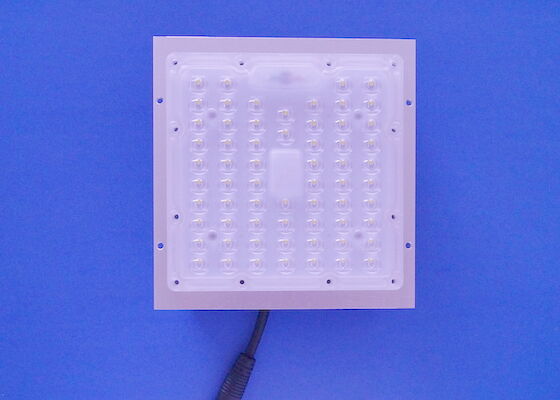

64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W

64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W
64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W

Large Image :  64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-SL130X130-64-3030-80X150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Cartons
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Detailed Product Description
Product Name: 50W 64 LED Street Light Module , PC Array Lens 80x150 Degree Square Module With 3030 SMD LED 130-140LM/W Model No.: SUN-SL130X130-64-3030-80X150
Beam Angle: 80x150 Degree LENS Size: 130x130x6.9mm
Material: Optical Grade PC LED CHIP: 3030 SMD LED, 2200-6500k, 6v 1w
Tranmittance: 91% Application: Street Lamps, Projecting Lights, Tunnel Lights, Square Lighting, Road Light, High Bay Light
PCB Size: 115.59x115.59x1.5mm Circuit For PCB Board: 8 Series 8 Parallel
High Light:

50W PC Array Lens Module

,

64LEDs PC Array Lens Module

,

80x150 Degree Square Module



50W 64 LED Street light module , PC array lens 80x150 degree Square module with 3030 SMD LED 130-140LM/W



Quick Detail:



Model No.

SUN-SL130X130-64-3030-80X150
Beam angle 80x150 degree
Lens size 130x130mm
PCB board size 115.59x115.59x1.5mm
Material for lens PC with ANTI-UV
LED chip PH 3030smd 1w 6v white color
Circuit for board 8 series 8 parallel, 48v for output voltage
Series lens 60 degree, 90 degree
Heatsink size 50w 150x146x45mm




64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 0

Features :

  1. This SKD 64 LED Array lens with PCB Module is best design power lamps like 50w and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 60x60 degree,90x90degree, 80x150 degree, 60x140 degree and so on.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

50W 64 LED Street light module , PC array lens 80x150 degree Square module with 3030 SMD LED 130-140LM/W

2, Model No

SUN-SL130X130-64-3030-80X150

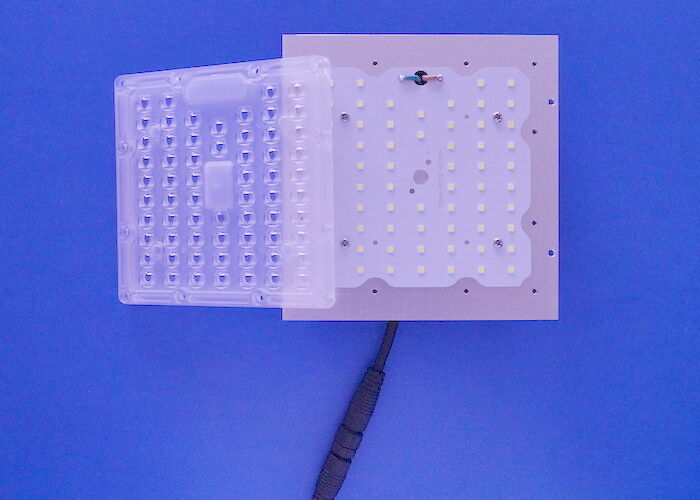

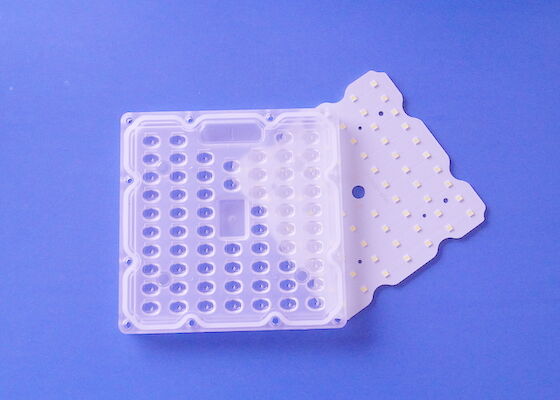

3, Main parts

64  Array lens , silicon gasket+PCB+LED+heat sink

4, Lens Material

PC

5, Lens size

130x130mm

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

80x150 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



LENS Dimensions :
 64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 1
 Dimensions for silicon gasket:
64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 2
Beam pattern:


80x150 Degree:



64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 3




PCB board size:

64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 4



Heatsink:

64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 5

64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 6






64LEDs 50W PC Array Lens Module 80x150 Degree 130-140LM/W 7
