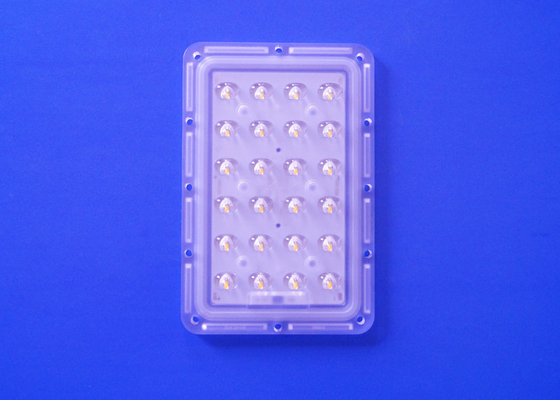

Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB
| Place of Origin | Shenzhen ,China |
|---|---|
| Brand Name | SunshineOpto |
| Certification | SGS/ROHS |
| Model Number | SUN-LD145X75-CR830B |
| Minimum Order Quantity | 1 |
| Price | need to negotiation |
| Packaging Details | Cartons |
| Delivery Time | 3-15 working days |
| Payment Terms | T/T,Western Union,MoneyGram，Paypal |
| Supply Ability | 5000 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

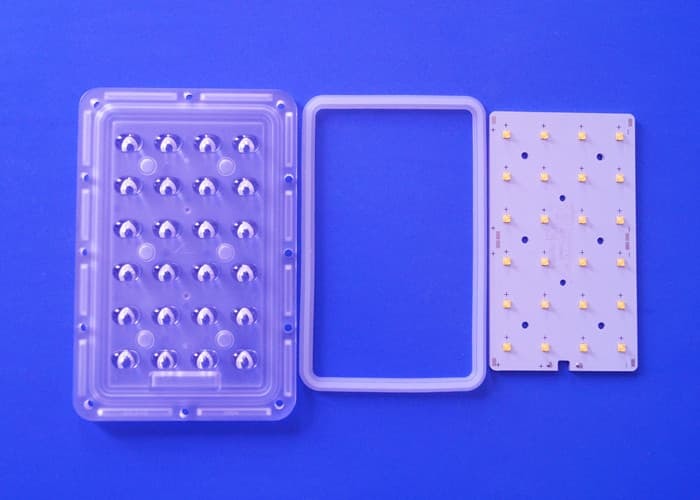

| Product Kits | Led Lens With Silicon Gasket+pcb Welding 24pcs 3535 Leds | Lens Size | 162*107*8mm |
|---|---|---|---|
| Lens Angle | 145*75 Degree Asymmetric | PCB Size | 128.4*73.4*2.0 Mm |
| PCB Circuit | 8 Series 3 Parallel | Match Led | CR 3535 Leds |
| Recommended Power | 30watt -60watt | Warrenty | 2 Years |
| Highlight | led light replacements,led lighting module |
||
Product Description
Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB
Product Feature:
1 ,This led street light module has a small size can match a variety of lamp housing .
2 ,Whole led light module use CR 3535 leds ,High quality leds guarantee long life .
3 ,We have a competitive price for CR 3535 leds .
| DATASHEET | ||||||
| Features | 1. High Quality Original CR 3535 leds . | |||||
| 2. Competitive price for whole led light module | ||||||
| 3. Luminous efficacy can up to 130lm/w-170lm/w. | ||||||
| Application | Street ,Garden , pathway, road, sidewalk, etc. | |||||
|
General information |
Name | LED Street Light | ||||
| Model No. | SUN-LD2X6CR |
SUN-LD145x75 CR830B |
SUN-3X10- CR120 |
SUN-LD6X6- 3535 |
SUN-LD4x12- 3535 |
|
| Picture |  |
|
|
|
|
|
| Light source | SMD | |||||
| Chip | CR 3535 | |||||
| Warranty | 2 years | |||||
| Power(W) | 12-24W | 24-48W | 30-60W | 36-70W | 48-90W | |
|
Optical Information |
Luminous flux(lm) |
1800-3200lm | 3700-6400lm | 4700-8000lm | 5600-9300lm | 7500-12000lm |
|
Luminous efficacy(lm/w) |
130-170lm/W | 130-170lm/W | 130-170lm/W | 130-170lm/W | 130-170lm/W | |
| CRI | >70 | |||||
|
Color temperature |
2700K-6500K | |||||
|
LED quantity (PCS) |
12 | 24 | 30 | 36 | 48 | |
| Beam angle |
135*55° 141*78° 145*83° 145*95° 157*57° |
145*75° |
78*132° 120° |
60*140° |
60*60° 90*90° 62*144° |
|
|
Lens material |
PC | |||||
|
Mechanical Information |
Ambient temperature |
-40℃~50℃ | ||||
|
Working temperature |
<60° | |||||
|
Storage temperature |
-40℃~50℃ | |||||
| IP Rating | IP65 | |||||

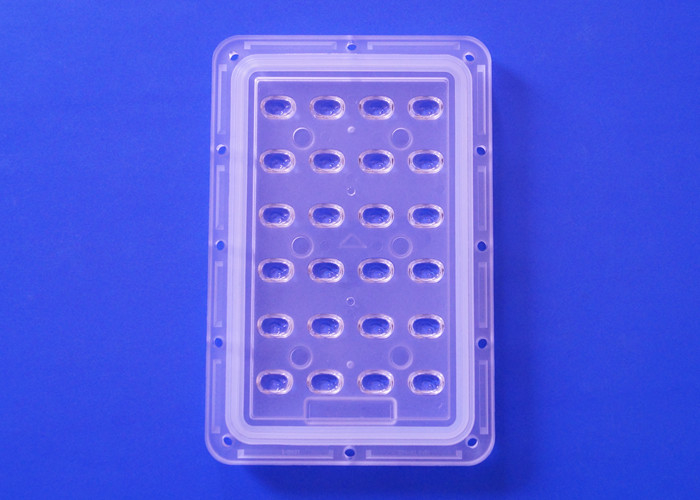

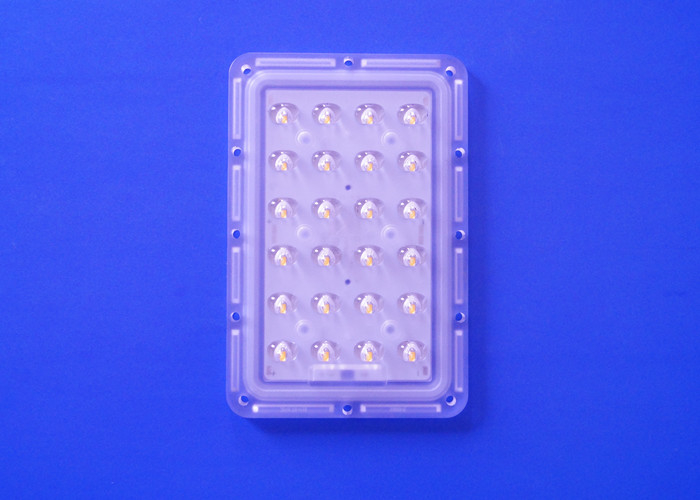

Product Picture :
Our Main Seivice :
We Provide Custom Service ,Please feel free to contact us ~~~
Application : led street light ,high way lamp ,etc .
