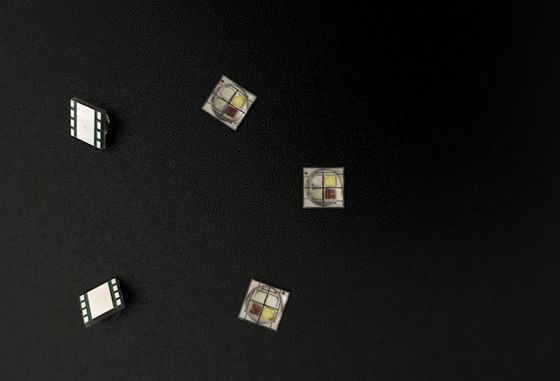

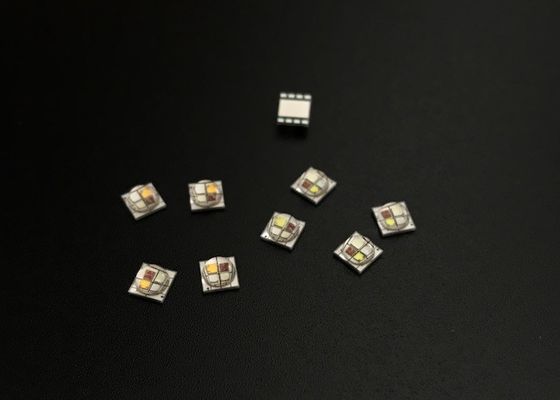

15W 6000-10000K RGBW LED Chip 5050 SMD LED with 615-635NM High Power LED
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 15W RGBW LED 5050 SMD CHIP R:615-635NM G:515-535NM B:450-470NM W:6000-10000K | Model No. | SP4X3W-5050 RGBW |
|---|---|---|---|
| Light Color | RGBW | Luminous | R:95-130/G:220-270/B:39-57/W:240-305LM |
| Forward Current | 1A | Forward Voltage | R:1.8-2.6V G:2.8-3.6V B:2.8-3.6V W:2.8-3.6V |
| Wavelength | R:615-635NM G:515-535NM B:450-470NM W:6000-10000K | Viewing Angle | 120 Degree |
| Package | 5050SMD LED | Manual Solding Temperature | 350 Degree +_10 Degree For 3-5 Seconds |
| Highlight | RGBW 5050 SMD LED Chip,10000K SMD LED Chip,635NM High Power Rgb Led |
||
Product Description

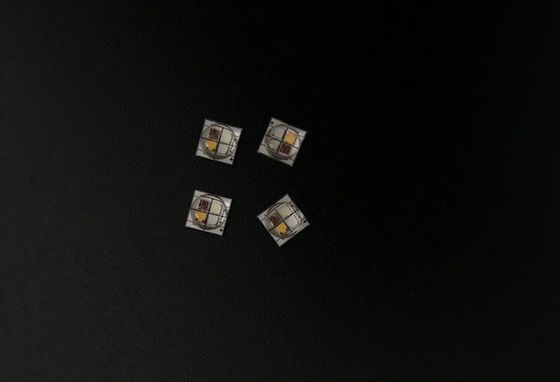

15W RGBW 5050 SMD LED Chip - High Power RGB LED
High-performance 15W RGBW LED 5050 SMD chip featuring precise wavelength control for stage lighting and wall washer applications. This professional-grade LED delivers exceptional color accuracy and luminous output.
Technical Specifications
| Model Number | SP4X3W-5050 RGBW |
| Wavelength | R:615-635NM G:515-535NM B:450-470NM W:6000-10000K |
| Luminous Flux | R:95-130/G:220-270/B:39-57/W:240-305LM |
| Voltage | R:1.8-2.6V G:2.8-3.6V B:2.8-3.6V W:2.8-3.6V |
| Current | 1A |
| ESD Sensitivity | 2000v HBM |
| LED Junction Temperature | 125°C |
| Power | 15W |
| First Lens | Water clear silicone molding |
| Base Material | High thermal conductivity ceramics with color control circuit |
Product Dimensions
Applications
Related LED Products
RGBA LED Series
RGBWUV LED Series
Product Handling Instructions
- Storage: Maintain in dry cabinets at 25℃±3℃ with humidity between 40-60%
- Post-Unpacking: Components exposed to air must be used within 72 hours
- Temperature Control: Use hand welding as lens cannot withstand high temperatures
- Cooling Process: Avoid mechanical pressure and strong shaking during cooling
- Prohibited: Fast cooling, welding on deformed PCB, contact with water, oil, or organic solvents
- Current Requirements: Consider maximum temperature when operating at full current
- ESD Protection: Use wrist straps or anti-static gloves with grounded equipment
- Power Supply: Must use constant current drivers only
Shipping & Delivery Information
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB | EXW | CIF | CFR |
| Sample Availability | YES |
| Delivery Time | 3-4 working days |
Why Choose SUNSHINEOPTO
- 11 years of specialization in High Power LED technology
- Complete supply system with full product range including LEDs, optical lenses, drivers, and MCPCB modules
- Strict quality control processes and procedures
- Premium raw materials used in manufacturing
- Strong design and production capabilities
Contact Information
Contact: Yuan Hu
Email: marketing@sunshineopto.com
Skype: yuanhelen56
WhatsApp: +86-18665803783
Mobile: +86-18665803783
QQ: 1831466204
WeChat: Helen1404
