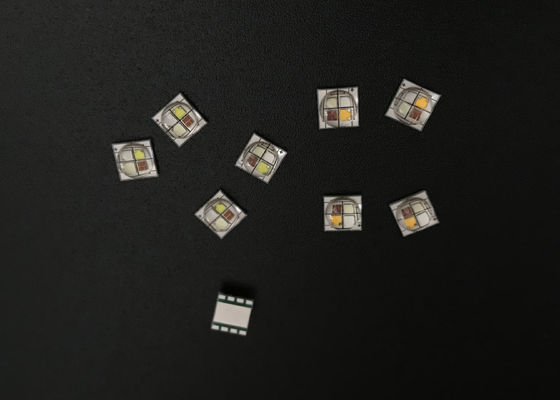

10W Silicone 5050 700mA Ceramic LED Diodes 605nm Amber RGB Led Diodes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Dissipation | 10W | Continuous Forward Current | 700mA |
|---|---|---|---|
| Lens | Water Clear,Silicone,Molding | Product Description | High Thermal Conductivity Ceramics |
| Input & Output | Color Controlled By Circuit | Name | Ceramic LED Diodes |
| Highlight | 10W Silicone Ceramic LED Diodes,700mA Ceramic LED Diodes,605nm Amber RGB Led Diodes |
||
Product Description
10W 5050 4IN1 Ceramic-LED High Power RGB Amber Led Diodes
Product Description
Electrical/Optical Characteristics (At Ta=25°C)
| RGBA LED | Standard Values | |||
| COLOR |
Dominant Wavelength /nm |
If(mA) |
Forward Voltage /V |
Luminous Flux /lm |
| Red | 615-635nm | 700 | 1.8-2.8 | 95-122 |
| Green | 515-535nm | 700 | 2.8-3.8 | 210-260 |
| Blue | 450-465nm | 700 | 2.8-3.8 | 35-51.7 |
| Amber | 585-605nm | 700 | 1.8-2.8 | 50-67.2 |
Current-Voltage Curves (At Ta=25°C)
Spectrum Distribution (At Ta=25°C)

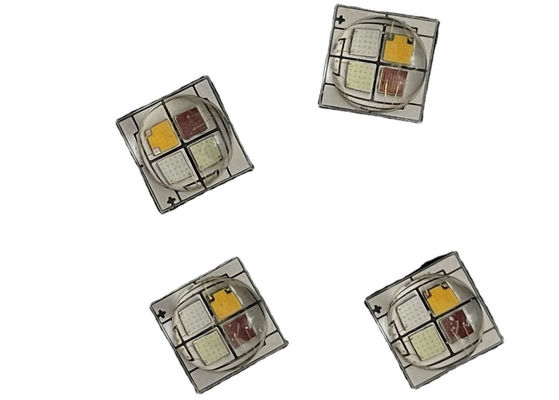

Package Dimensions & Product Picture

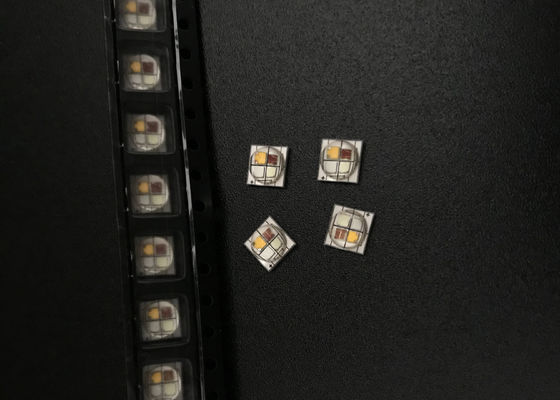

Packaging & Shipping
Instruction
1. Reserve:
It should be reserved in dry cabinets in case of moisture. The temperature for reserve
is 25℃±3℃, and the humidity is >40% but <60%.
2. How to handle after removing the tubes:
When sticking the tin, the pasted components separated from the surface of lens may
affect lighting efficiency to cause illuminating degradation. Therefore, it must be
complied as below:
A. The time which products are bare in the air after the packing bags cannot exceed
72 hours.
B. The temperature of reserve for products which are not used out is 25℃±3℃, and
the humidity is >40% but <60%.
C. It is advised to use hand weld since lens are not endurable with high temperature.
3. Products should avoid machinery pressure and strong shake during cooling after tin is
welded.
4. Fast cooling is not allowed.
5. Weld on anamorphic pcb is not allowed.
6. Don’t touch water, il and organic liquor.
7. Current should be considered when products which are used in max. temperature.
8. The appearance and size of products can be revised without any notice.
9. Requirements for electrostatic prevention:
Wear wrist strap or static-proof glove when use products, and all the equipment,
fixtures and worktable must put to earth.
10. Must use driver with constant current.
