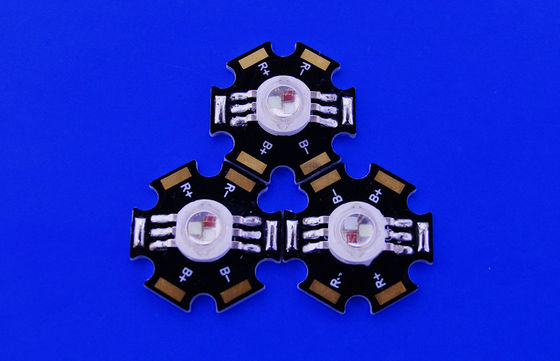

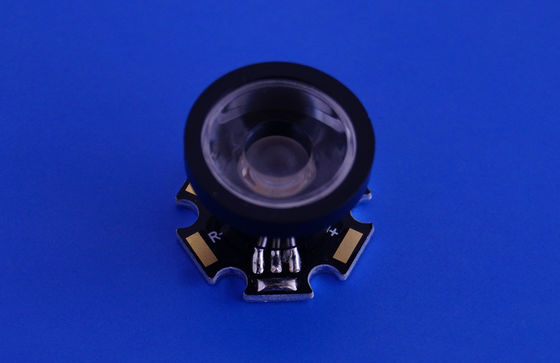

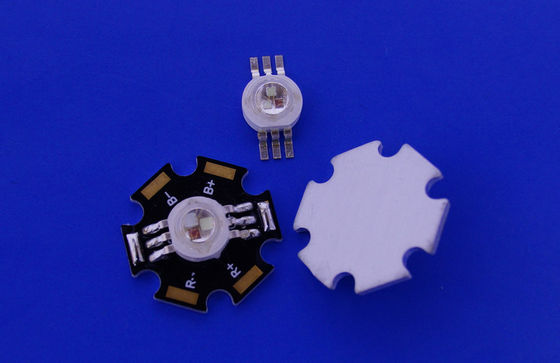

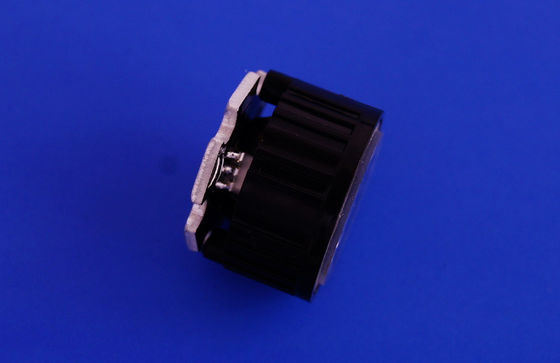

3W RGB High Power LED Light Emitting Diode with 120 Degree Angle and Star PCB Design
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3w RGB High Power LED Light Emitting Diode With Star PCB With Led Optical Lens | Led Diode | 14.68x5.2mm |
|---|---|---|---|
| PCB Size | Diameter Of 20mm | LED Angle | 120 Degree |
| Voltage | R 2.2-2.8V /G 3.0-3.6V/B 3.0-3.6V | Current | R 400mA/G 350mA/B 350mA |
| RGB Led Lens | 15 Degree | ||
| Highlight | epistar led chip,high power rgb led |
||
Product Description
3W RGB High Power LED Light Emitting Diode
Professional-grade RGB LED featuring star PCB design and integrated optical lens for superior lighting performance.
Quick Specifications
- Model: SP3WRGB
- LED Diode Size: 14.68×5.2mm
- PCB Size: 20mm diameter
- Beam Angle: 120°
- Voltage: R 2.2-2.8V / G 3.0-3.6V / B 3.0-3.6V
- Current: R 400mA / G 350mA / B 350mA
Premium Materials & Construction
- Chip: Taiwan 45MIL high-performance chip
- Silicon Glue: USA Dow Corning (minimizes lumen depreciation)
- Phosphor Powder: USA Intematix (enhanced lumen output)
- Gold Wire: Germany Heraeus 1.0mil (superior current handling)
- LED Base: Red/black copper base for optimal thermal management
Key Features: Super high flux output, high luminance, designed for high current operation, low thermal resistance, SMT solder technology, lead-free construction, ROHS compliant
Technical Specifications
| Product Name | 3W Colorful RGB High Power LED With Star PCB |
|---|---|
| Model No | SP3WRGB |
| Finishing | Reflow soldering |
| Material | 42MIL chip |
| MOQ | 100pcs |
| Size | 14.68×5.2mm |
| Package | 100pcs/box |
| Sample Lead Time | 1-3 working days |
| Delivery Time | 3-4 working days |
| Certification | ROHS |
| Warranty | 2 years |
| Wavelength | R 620-630nm / G 520-530nm / B 460-470nm |
| Luminous Flux | R 40-50LM / G 50-60LM / B 15-25LM |
Shipping & Delivery Options
| DHL/UPS/TNT/FEDEX | 4-5 working days |
|---|---|
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Sample Availability | YES |
| Trade Terms | FOB | EXW | CIF | CFR |
Applications
- General Illumination
- Outdoor & Indoor Architectural Lighting
- Decorative Lighting
- Torch Lighting
- Portable Lighting
- Reading Lighting
- Traffic Signaling
Competitive Advantages
- 15 years specializing in High Power LED manufacturing
- Complete supply system with full product range
- Strict process and quality control standards
- Premium materials including USA BridgeLux chips
- Strong OEM design and production capabilities
- Free samples available
- 2-year comprehensive warranty
