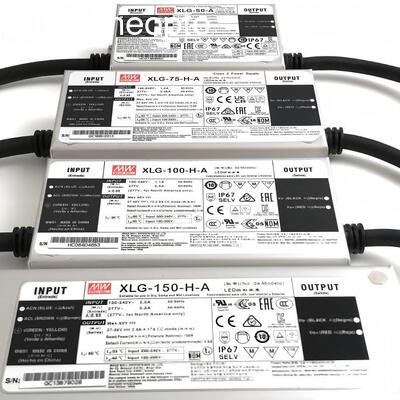

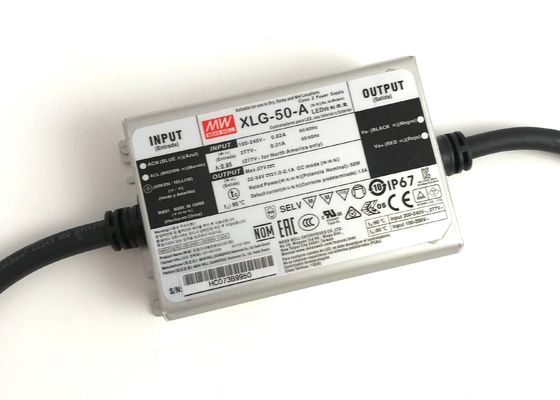

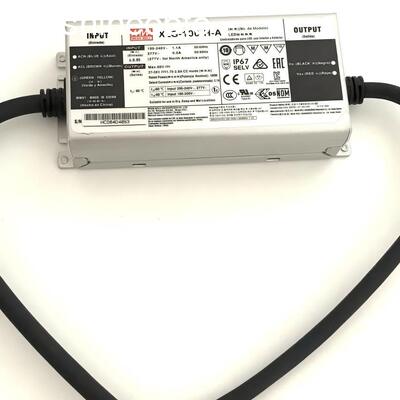

IP67 Waterproof 50-240W Adjustable PWM/Analog Dimming Constant Power LED Driver for Street Lights

MODEL

XLG-20-L-A

XLG-20-M-A

XLG-20-H-A

RATED CURRENT  (Default)

350mA

500mA

700mA

CONSTANT CURRENT REGION

32.4 ~ 54V

25.2 ~ 42V

18 ~ 30V

OUTPUT

RATED POWER

18.9W

21W

21W

OPEN CIRCUIT VOLTAGE (max.)

60V

50V

40V

CURRENT TOLERANCE

±8.0%

OUTPUT CURRENT RIPPLE Note.13

< 20%

SETUP, RISE TIME         Note.2

500ms, 150ms/115VAC, 230VAC

LINE REGULATION

< ±3%

VOLTAGE RANGE          Note.3

90 ~ 305VAC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF≥0.97/115VAC, PF≥0.95/230VAC, PF≥0.91/277VAC@full load

(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)

TOTAL HARMONIC DISTORTION

THD< 20%(@load≥50%/115VC,230VAC; @load≥75%/277VAC)

(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)

INPUT

EFFICIENCY (Typ.)

89%

88.5%

88%

AC CURRENT

0.3A / 115VAC      0.2A / 230VAC      0.2A/277VAC

INRUSH CURRENT(Typ.)

COLD START 5A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER

42 units (circuit breaker of type B) / 42 units  (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

NO LOAD

POWER CONSUMPTION

No load power consumption <0.5W

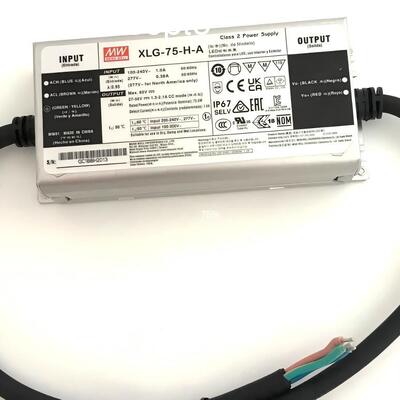

MODEL

XLG -75 -12-A

XLG -75 -24-A

DC VOLTAGE

12V

24V

CONSTANT CURRENT REGION Note.2

8.4~ 12V

16.8~ 24V

RATED CURRENT   (Default)

5A

3.1A

RATED POWER

60W

74.4W

RIPPLE & NOISE (max.)  Note.3

150mVp-p

240mVp-p

CURRENT ADJ RANGE

2.5A~5A

1.55A~3.1A

OUTPUT

VOLTAGE TOLERANCE  Note.4

±3.0%

±2.0%

LINE REGULATION

±0.5%

±0.5%

LOAD REGULATION

±2%

±1%

SETUP, RISE TIME    Note.6

500ms, 100ms/230VAC,   1200ms, 100ms/115VAC

HOLD UP TIME (Typ.)

10ms/ 230VAC  10ms/ 115VAC

VOLTAGE RANGE          Note.5

100 ~ 305VAC          142 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF≥0.97/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC@full load

TOTAL HARMONIC DISTORTION

THD< 10%(@load≥50%/115VC,230VAC; @load≥75%/277VAC)

INPUT

EFFICIENCY (Typ.)

89%

90%

AC CURRENT

1.0A / 115VAC      0.45A / 230VAC      0.38A/277VAC

INRUSH CURRENT(Typ.)

COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER

9 units (circuit breaker of type B) / 14 units  (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

NO LOAD

POWER CONSUMPTION

No load power consumption <0.5W(for standard version)

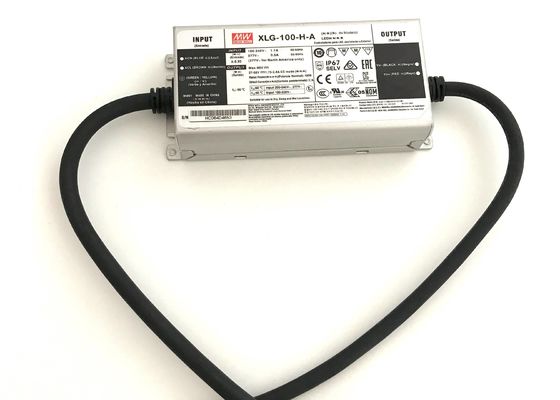

MODEL

XLG-100-12-A

XLG-100-24-A

DC VOLTAGE

12V

24V

CONSTANT CURRENT REGION Note.2

8.4~ 12V

16.8~ 24V

RATED CURRENT  (Default)

8A

4A

RATED POWER

96W

96W

RIPPLE & NOISE (max.)  Note.3

150mVp-p

240mVp-p

CURRENT ADJ RANGE

Adjustable for A-Type only (via the built-in potentiometer)

4 ~ 8A

2~4A

OUTPUT

VOLTAGE TOLERANCE  Note.4

±3 .0%

±2 .0%

LINE REGULATION

±0 .5%

±0 .5%

LOAD REGULATION

±2%

±1%

SETUP, RISE TIME    Note.6

500ms , 100ms/230VAC ,   1200ms , 100ms/115VAC

HOLD UP TIME (Typ.)

12ms/ 230VAC  12ms/ 115VAC

VOLTAGE RANGE          Note.5

100 ~ 305VAC          142 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF≥0 .97/115VAC , PF≥0 .95/230VAC , PF≥0 .92/277VAC@full load

TOTAL HARMONIC DISTORTION

THD< 10%(@load≥50%/115VAC ,230VAC; @load≥75%/277VAC)

INPUT

EFFICIENCY (Typ.)

92%

92%

AC CURRENT

1. 1A / 115VAC      0.5A / 230VAC      0.42A/277VAC

INRUSH CURRENT(Typ.)

COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER

8units (circuit breaker of type B) / 14 units  (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0 .75mA / 277VAC

NO LOAD

POWER CONSUMPTION

No load power consumption <0 .5W(for standard version)

MODEL

XLG-320-L-

XLG-320-M-

XLG-320-H-

XLG-320-V-

RATED CURRENT (Default)

1400mA

2800mA

5600mA

13A/24V

RATED POWER             Note.11

315W

310.8W

312W

24V/312W, 12V/216W

CONSTANT CURRENT REGION

150~300V

74 ~ 148V

30 ~ 56V

NC

OUTPUT VOLTAGE ADJ. RANGE

NC

NC

NC

24V or 12V

FULL POWER CURRENT RANGE

1050~1400mA

2100~2800mA

5570~7420mA

13~18A(24V/13A,12V/18A)

OPEN CIRCUIT VOLTAGE (max.)

340V

180V

60V

NC

CURRENT ADJ. RANGE

500~1400mA

1050~2800mA

2800~7420mA

NC

CURRENT RIPPLE

5.0% max. @rated current

5.0 max. @rated current

5.0% max. @rated current

NC

OUTPUT

CURRENT TOLERANCE

±5%

±5%

±5%

NC

RIPPLE & NOISE(max.)

NC

NC

NC

240mV p-p

VOLTAGE TOLERANCE

NC

NC

NC

±3%

LINE REGULATION

NC

NC

NC

±0.5%

LOAD REGULATION

NC

NC

NC

±2%

SET UP TIME                   Note.9

500ms/230VAC, 1200ms/115VAC

RISE TIME,HOLD UP TIME (Typ.)

160ms,10ms/230VAC/115VAC(only for V-type)

VOLTAGE RANGE          Note.2

100 ~ 305VAC           142VDC ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF≥0.98 / 115VAC , PF≥0.95 / 230VAC , PF≥0.92 / 277VAC at full load

(Please refer to "Power Factor Characteristic" section)

TOTAL HARMONIC DISTORTION

THD< 10% @ load≥50% at 115VAC/230VAC, THD<15%@Load>75% at 277VAC;

Please refer to “TOTAL HARMONIC DISTORTION (THD)” section

INPUT

EFFICIENCY (Typ.)

94.5%

93.5%

92.5%

93%

AC CURRENT (Typ.)

3A / 120VAC          1.6A / 230VAC           1.3A / 277VAC

INRUSH CURRENT(Typ.)

COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. NO. of PSUs on 16A CIRCUIT BREAKER

2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

STANDBY  POWER

CONSUMPTION              Note.5

Standby power consumption <0.5W for  AB-Type(Dimming OFF)
