48V 36V 52V Tunable LED Driver 240W Short Circuit Protections For Street Light

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	MEANWELL
Certification:	SGS,ROHS
Model Number:	XLG-240

Minimum Order Quantity:	1
Packaging Details:	Cartons
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram
Supply Ability:	5000pcs/months

Get Best Price Contact Now

Detail Information

Output Power:

240W

Output Frequency:

47-63Hz

Input Voltage:

90-305VAC

Output Current:

2400-6660mA

Highlight:

52V Tunable Led Driver

240W Tunable Led Driver

Dimming Street Light Led Driver

Product Description

Meanwell XLG-100-H-A IP67 100 Watts Ac Dc Constant Current 100W Street Light Led Driver

Product Description

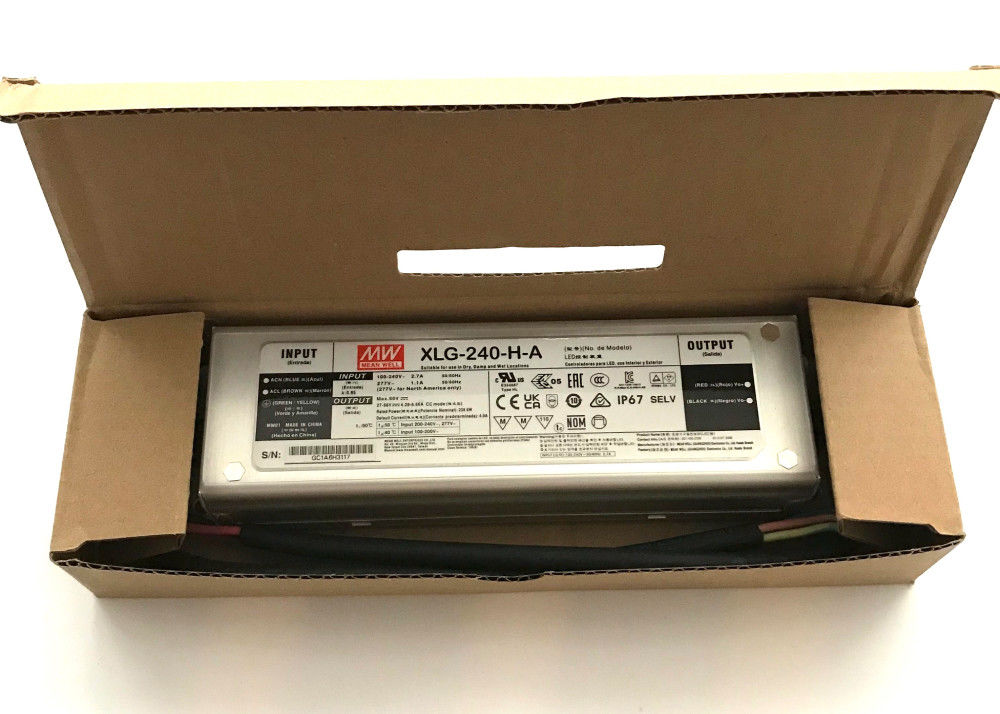

48V 36V 52V Tunable LED Driver 240W Short Circuit Protections For Street Light 0

Model No.	XLG-240-H-A
Rated Current	4.9A
Constant current region	27-56V
Rated Power	100VAC-305VAV/ 150W
Current ADJ. RANGE	2400-6660mA
Dimensions and weight	2196335.5MM, 1kg/set
Package	16PCS/CARTON, WEIGHT 16KG.

Features :

1, Wide input range 100~305VAC

2, Constant power mode with adjustable output current

3, Built-in active PFC function and Efficiency up to 90%

4, Dimming functions with 3 in 1

5, Protections: Short circuit/ Over voltage/ Over temperature

6, Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20

7, 5 years warranty

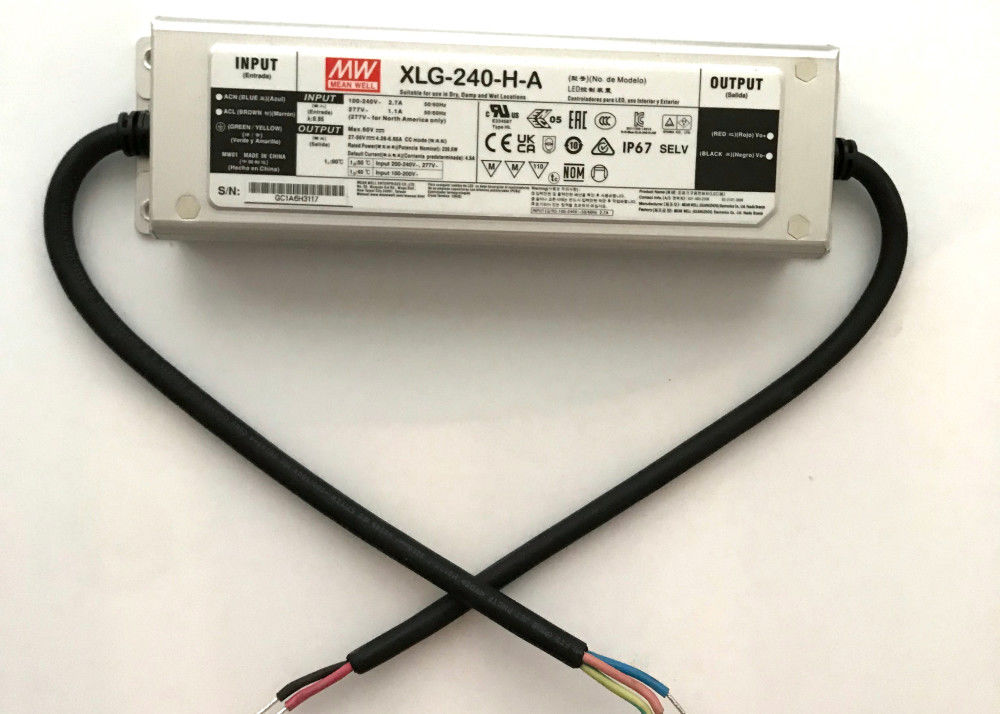

48V 36V 52V Tunable LED Driver 240W Short Circuit Protections For Street Light 2

48V 36V 52V Tunable LED Driver 240W Short Circuit Protections For Street Light 3

48V 36V 52V Tunable LED Driver 240W Short Circuit Protections For Street Light 4

Application

48V 36V 52V Tunable LED Driver 240W Short Circuit Protections For Street Light 5
