Place of Origin:
Shenzhen,China
Brand Name:
Sunshineopto
Certification:
SGS,ROHS
Model Number:

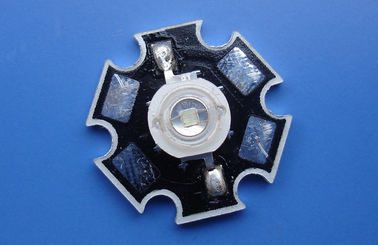

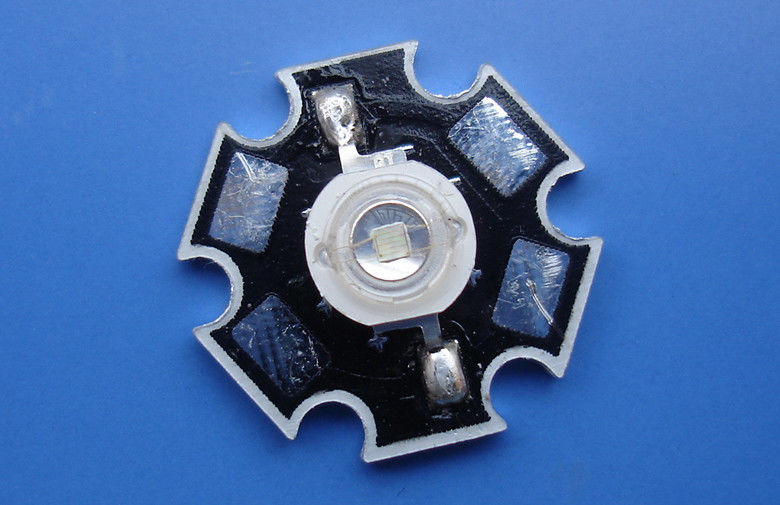

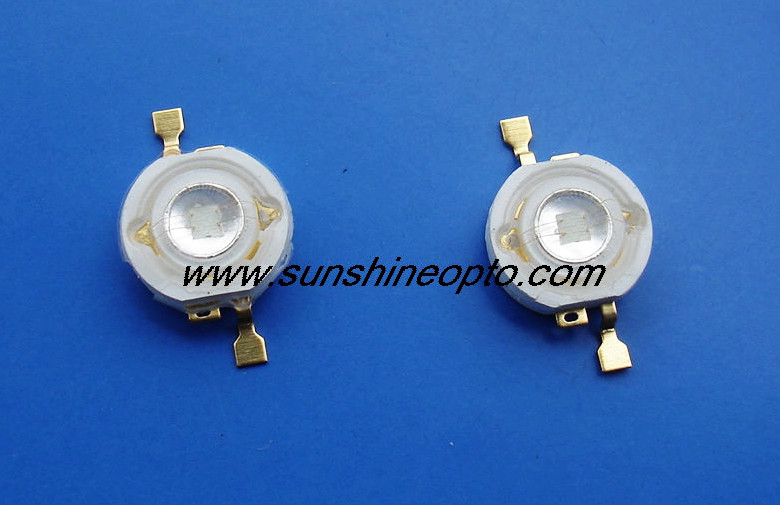

SUN-SP3WG
Contact Us
Video
| Parameters | ||||||
| Electrical-Optical Characteristics at IF=700mA,Ta=25℃ | ||||||
| Parameter | Symbol | Min | Typ | Max | Unit | |
| Luminous Flux | φv | 160 | ~ | 180 | lm | |
| Wavelength | λD | 520 | ~ | 530 | nm | |
| CRI | Ra | ~ | ~ | ~ | CRI | |
| Forward Voltage | VF | 3.2 | ~ | 3.8 | V | |
| Power Dissipation | PD | 2.24 | ~ | 2.66 | W | |
| View Angle | 2θ1/2 | ~ | 140 | ~ | deg. | |
| Thermal Resistance | Rθ J-B | ~ | 12 | ~ | ℃/W | |
| Absolute Maximum Ratings | ||||||
| Parameter | Symbol | Value | Unit | |||
| Forward Current | IF | 700 | mA | |||
| Junction Temperature | Tj | 115 | ℃ | |||
| Operating Temperature | Topr | -40~+60 | ℃ | |||
| Storage Temperature | Tstg | 0~+60 | ℃ | |||
| ESD Sensitivity | ~ | ±2,000V HBM | ~ | |||
| Temperature Coefficient of voltage | ~ | -5 | mV/℃ | |||
| DC Pulse Current(@ 1 KHz,10% duty cycle) | IFP | 1000 | mA | |||
| Reverse Voltage | VR | Not designed for reverse operation | ||||
| *Notes : | ||||||
| 1. Tolerance of Luminous Flux is ±3%. | ||||||
| 2. Tolerance of Forward Voltage is ±0.1V. | ||||||
Competitive Advantage of SUNSHINEOPTO :
1. About 7 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.
Applications:
General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight
