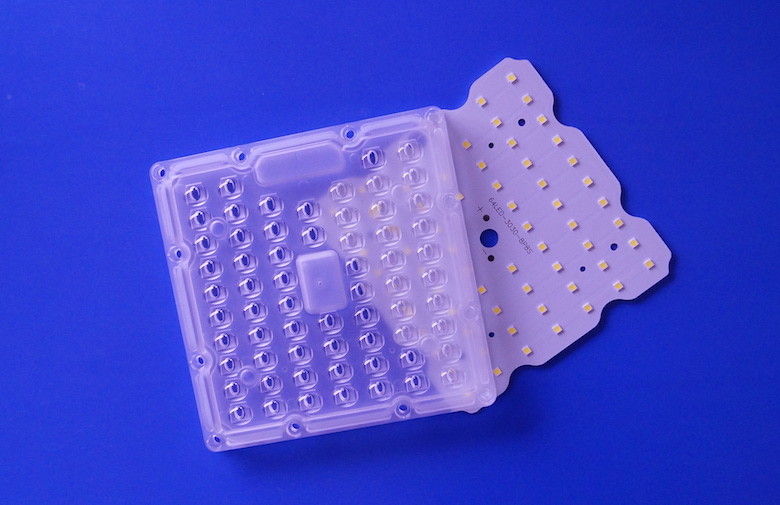

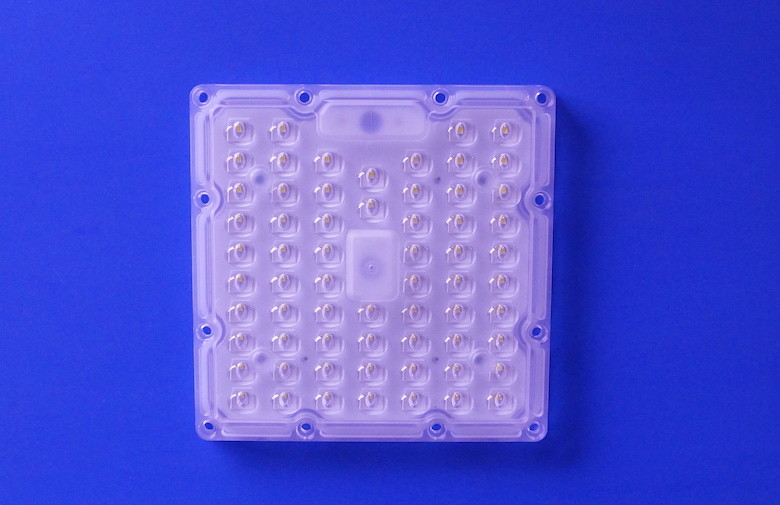

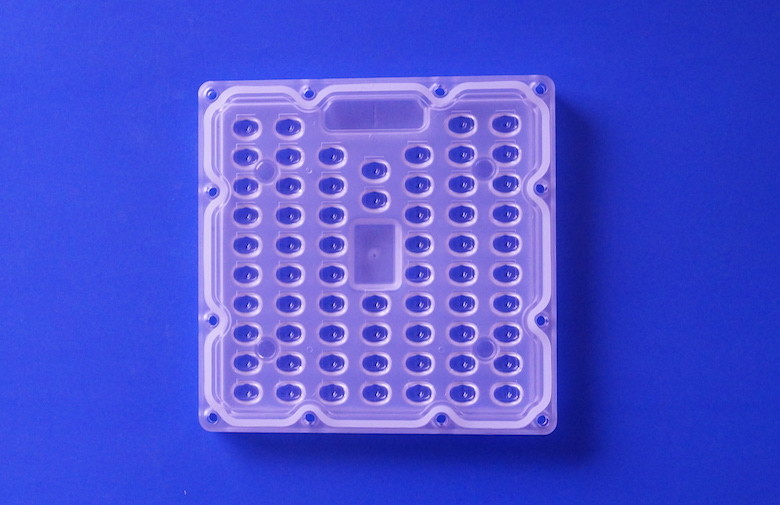

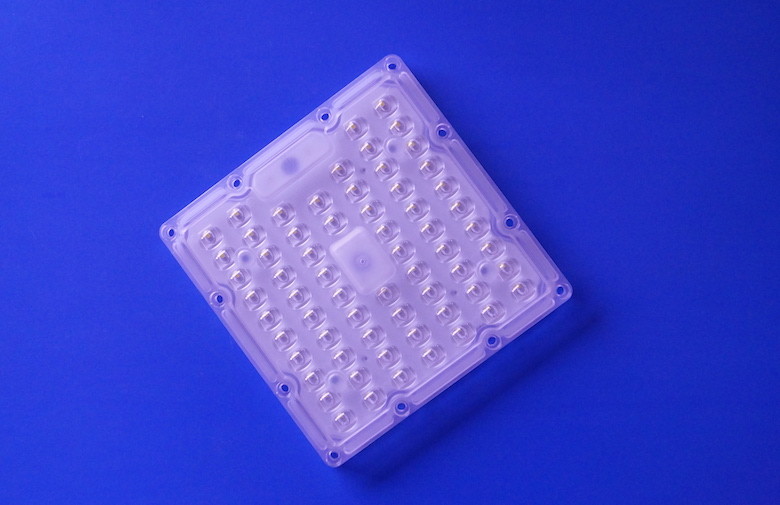

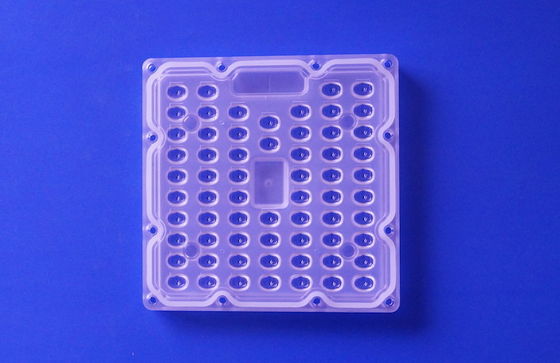

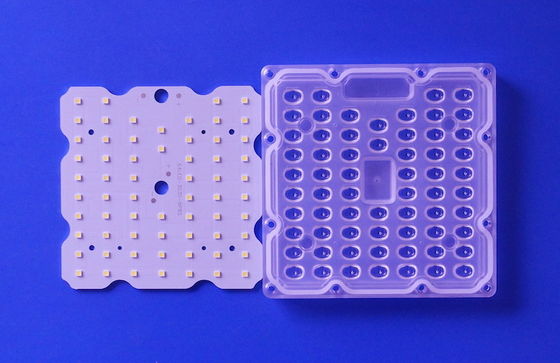

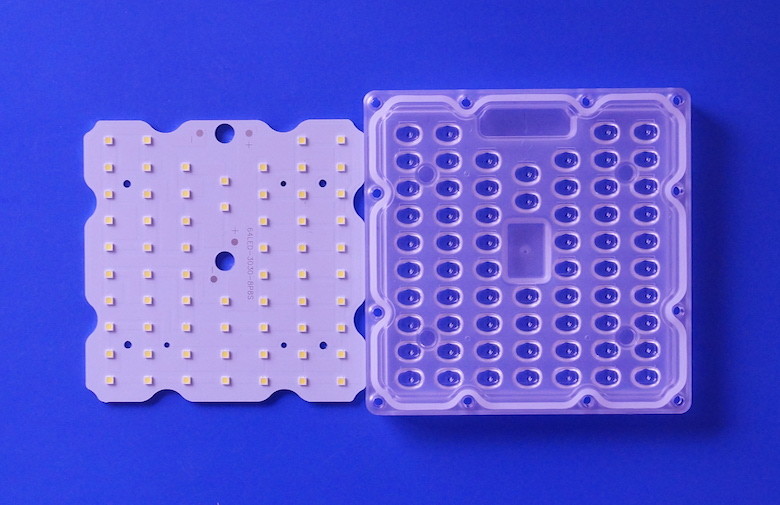

/ Osram 3030 64 LED IN One LED Optic Street light Lens LED Module

/ Osram 3030 64 LED IN One LED Optic Street light Lens LED Module

led light replacements

led lighting module

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-J64-3030-80x150

Contact Us

Request A Quote
Product Details
Product Name:
/ Osram 3030 64 LED IN One LED Optic Streetlight Lens LED Module Street Light 50W 80X150 Degree For Flexible LED
Model No.:
SUN-J64-3030-80x150
Beam Angle:
80x150 Degree
LENS Size:
130x130x6.9mm
Material:
Optical Grade PC
LED CHIP:
3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance:
91%
Application:
High Bay Light/Street Light
PCB Size:
115.59x115.59x1.5mm
Circuit For PCB Board:
8 Series 8 Parallel
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

/ Osram 3030 64 LED IN One LED Optic Streetlight Lens LED Module Street light 50W 80X150 Degree For Flexible LED


Quick Detail:

Model No:SUN-J64-3030-80x150
Material: PC
Beam Angle : 80x150 degree
Lens size:130x130mm
PCB size:115.59x115.59x1.5mm
Circuit: 8 series 8 parallel
Match LED: 3030SMD LED
Small footprint, high light output


Features :

  1. This SKD 64 LED Array lens with PCB Module is best design power lamps like 50-55w/100-110w  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 90 degree,120 degree  and TYPE4 .


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

/ Osram 3030 64 LED IN One LED Optic Streetlight Lens LED Module Street light 50W 80X150 Degree For Flexible LED

2, Model No

SUN-J64-3030-80x150

3, Main parts

64  Array lens , silicon gasket+PCB+LED

4, Lens Material

PC

5, Lens size

130x130mm

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

120 degree/ TYPE4

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



LENS Dimensions :
  / Osram 3030 64 LED IN One LED Optic Street light Lens LED Module 0
 Dimensions for silicon gasket:
 / Osram 3030 64 LED IN One LED Optic Street light Lens LED Module 1
Beam pattern:



80x150 Degree:
  / Osram 3030 64 LED IN One LED Optic Street light Lens LED Module 2


90 Degree:



 / Osram 3030 64 LED IN One LED Optic Street light Lens LED Module 3




PCB board size:

 / Osram 3030 64 LED IN One LED Optic Street light Lens LED Module 4
