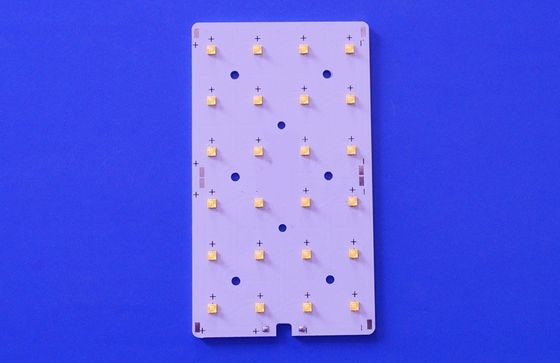

24-LED 145×75° Asymmetric 3535 LEDs Optical PC Lens with Aluminum PCB OEM Roadway Lighting Optics Manufacturer

Brand Name: SunshineOpto
Model Number: SUN-LD145X75-CR830B
MOQ: 100
Price: need to negotiation
Packaging Details: cartons
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS/RoHS/CE
Lens Size:
162x107x8mm
PCB Size:
128.4x73.4x2.0 Mm
Lens Angle:
145x75 Degree Asymmetric
PCB Circuit:
8 Series 3 Parallel
LED Chip:
24 Leds SMD 3535
Transmittance::
92%
Supply Ability:
5000 pcs per month
Highlight:

led light replacements

,

led lighting module

Product Description
24-LED 145×75° Asymmetric 3535 LEDs Optical PC Lens with Aluminum PCB OEM Roadway Lighting Optics Manufacturer
Product Overview

The 24-LED 145×75° Asymmetric LED Street Light Lens Module is a professional optical solution developed for high-performance LED roadway and street lighting systems. Featuring a precision-engineered 145×75° asymmetric beam distribution, this module maximizes roadway illumination while minimizing light spill and glare, making it ideal for municipal roads, highways, urban streets, parking lots, residential roads, and smart city lighting projects.Designed for 3535 SMD LEDs, the module integrates a 24-point optical PC lens array, high thermal conductivity aluminum MCPCB, and precision optical alignment to deliver excellent light uniformity and high optical efficiency. The optical-grade polycarbonate (PC) lens provides approximately 92% light transmittance, ensuring maximum lumen output and long-term outdoor durability with UV resistance and anti-yellowing performance.Suitable for both new LED luminaires and retrofit projects, the module supports OEM/ODM customization for beam patterns, PCB layouts, LED configurations, and complete lighting assemblies.

Features
  • Precision 145×75° asymmetric roadway optics
  • Designed for 24 pcs 3535 SMD LEDs
  • Optical-grade PC lens with approximately 92% light transmittance
  • Excellent roadway light uniformity with reduced glare
  • High thermal conductivity aluminum MCPCB
  • UV-resistant, anti-yellowing and impact-resistant PC material
  • Optimized for roadway lighting standards
  • Energy-efficient replacement for HID street lighting
  • Long service life exceeding 50,000 hours (depending on LED and driver)
  • Easy installation for new fixtures and retrofit projects
  • OEM & ODM customization available
Product Specifications
Model No. SUN-LD145x75CR830B

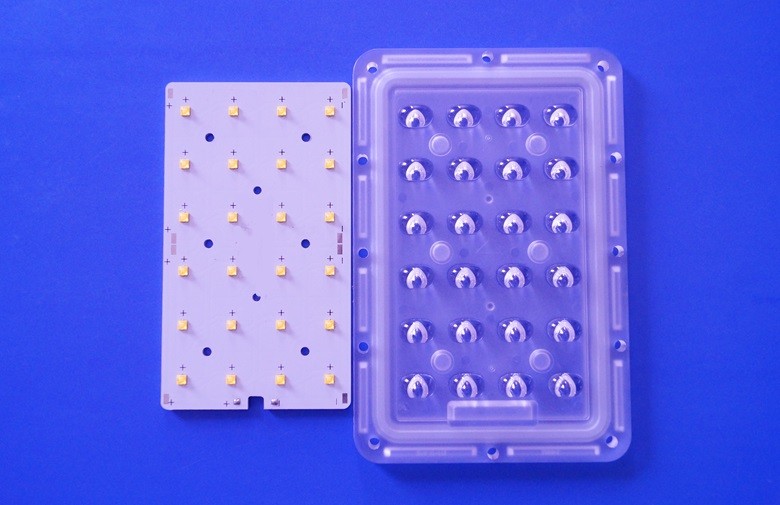

Kits LED Lens with Silicon Gasket + PCB Mounting 3535 LEDs

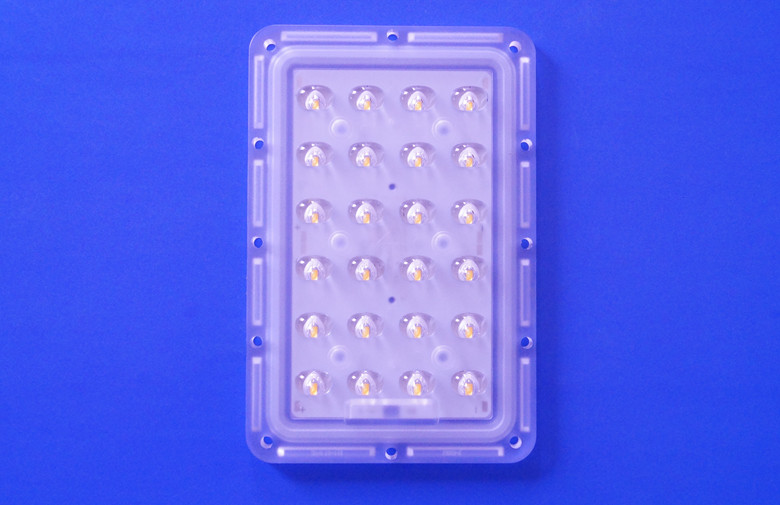

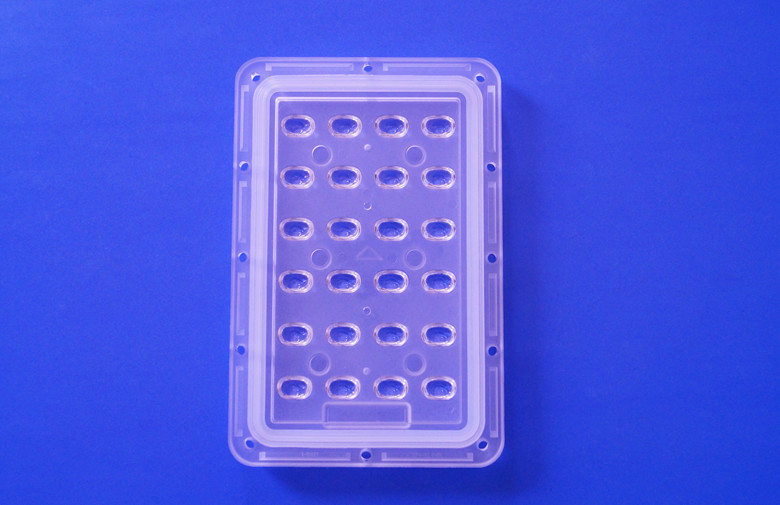

Lens Size 162x107x8mm
Lens Beam Angle 145x75 Degree Asymmetric

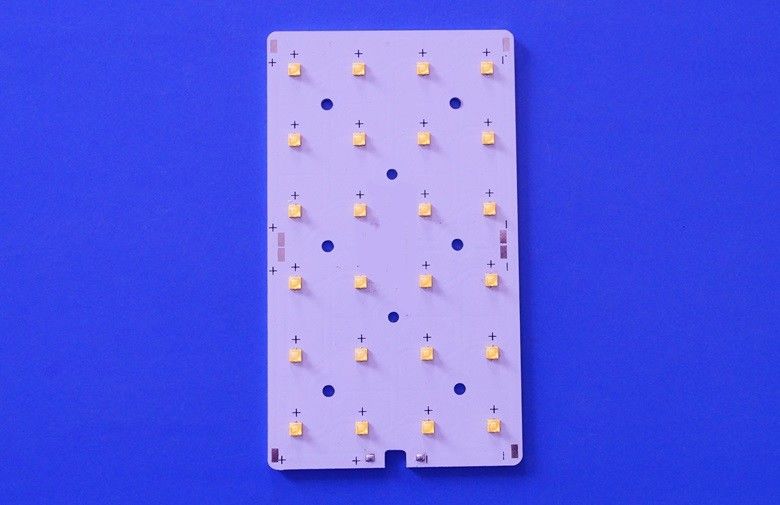

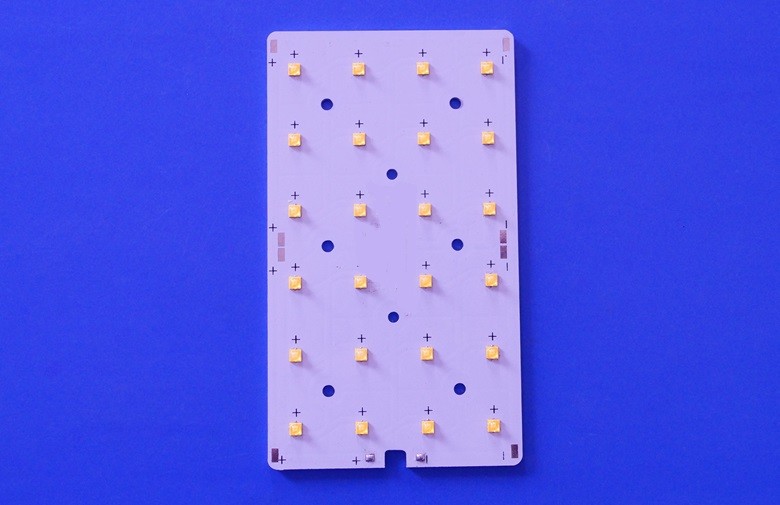

PCB Size 128.4x73.4x2.0 mm
PCB Circuit 8 Series 3 Parallel
GET A FREE QUOTE NOW.
Lens size and beam angle drawing
 LED Lens Size Diagram Light Distribution Pattern
Applications
  • Street Lighting
  • Highway Lighting
  • Expressway Lighting
  • Residential Roads
  • Urban Roads
  • Industrial Parks
  • Parking Lots Lights
Shipping & Delivery Informations
Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB, EXW, CIF, CFR
Sample Availability YES
Delivery Time 3-4 working days
Frequently Asked Questions
Q1. Why use a 145×75° asymmetric lens instead of a standard symmetrical lens?
A: The 145×75° asymmetric beam pattern directs more light onto the roadway while reducing light spill to sidewalks and surrounding areas. This improves lighting efficiency, visibility, and compliance with roadway lighting requirements.
Q2. Can you customize the beam angle and PCB layout?
A: Yes. We provide customized optical beam angles, PCB circuit layouts, LED arrangements, lens dimensions, and complete module solutions to meet different roadway lighting requirements.
Q3. Is the lens suitable for outdoor environments?
A:Yes. The optical-grade PC lens features UV resistance, impact resistance, and anti-yellowing properties, making it ideal for long-term outdoor applications when integrated into IP65/IP66 luminaires.
Q4. Is it OK to print my logo on LED light product?
A: Yes. Please inform us formally before production and confirm the design based on our sample.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty for our products.
