91% Tranmittance Pcb Module 160lm/w SMD 3030 LED Light Module 50W Street Lighting

91% Tranmittance Pcb Module 160lm/w SMD 3030 LED Light Module 50W Street Lighting

led light replacements

led lighting module

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-SL72-3030-80x150

Contact Us

Request A Quote
Product Details
Product Name:
Innovative Products 160lm/w SMD 3030 LED Light Module For 50W Street Lighting
Model No.:
SUN-SL72-3030-80x150
Angle:
80x150degree
Lens Dimension:
250x74x6.15mm
Lens Material:
Optical Grade PC
LED CHIP:
3030 SMD LED, 150-160lm/w 150mA,6v
Tranmittance:
91%
Accessory:
Gasket And Lens+PCB+ 3030SMD LED+Heat Sink
PCB Size:
226x57.9x1.5mm
PCB Circuit:
8 Series 9 Parallel
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

Innovative Products 160lm/w SMD 3030 LED Light Module For 50W Street Lighting

Product Feature:



1.This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use Ph3030 leds ,High quality leds guarantee long life .

3. We can according your require to design new Lens & Board.
4. This SKD 72 LED Array lens with PCB Module is best design power lamps like 50W for per module.

5. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:


1, Product Name

Innovative Products 160lm/w SMD 3030 LED Light Module For 50W Street Lighting

2, Model No

SUN-SL72-3030-80x150

3, Main parts

 Array lens , silicon gasket+PCB+LED+HEAT SINK

4, Lens Material

PC

5, Lens size

250X74MM

6, Transmittance

91%

7,LEDS

3030 SMD LED, 150-160lm 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

80x150 degree /60 degree/90 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Model No. Power(W) Angle(Degree) Lens size(mm) PCB size(mm) Circuit

SUN-LD3x12-3030-90x90

30 90x90 250x74



228x53x1.5



6S6P

SUN-LD3x12-3030-60x140

30 60x140 120x110

89x89x1.5

6S6P

SUN-LD4X12-3030-60X60

40 60x60 250x74



228x53x1.5



6S8P

SUN-SL56W-3030-30/60/90

50 30/60/90

256.6x78.6



233x55x1.5



7S8P

SUN-SL64W-3030-30/60/90

50 30/60/90 236x70

219.1x53.54x1.5

8S8P

SUN-SL72-3030-60/90



50 60/90 250x74

226x57.9x1.5

8S9P








LENS Dimensions :
91% Tranmittance Pcb Module 160lm/w SMD 3030 LED Light Module 50W Street Lighting 0

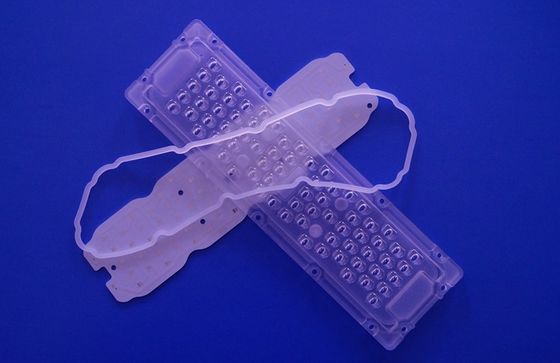

Gasket size:
91% Tranmittance Pcb Module 160lm/w SMD 3030 LED Light Module 50W Street Lighting 1
PCB size:

91% Tranmittance Pcb Module 160lm/w SMD 3030 LED Light Module 50W Street Lighting 2
