120 Degree High Bay Light Module 50w 64 Pieces Board 6 Series 6 Parallel 135-150lm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 120 Degree High Bay Light Module 50w 64 Pieces 3030SMD Board 6 Series 6 Parallel 135-150lm | Model No. | SUN-J64-3030-120 |
|---|---|---|---|
| Beam Angle | 120 Degree | LENS Size | 110mm Diameter, 6.8mm Of Height |
| Material | Optical Grade PC | LED CHIP | 3030 SMD LED, 140-150lm/w@ 150mA,6v |
| Tranmittance | 91% | Application | High Bay Light/Street Light |
| PCB Size | 92.8mm Diameter, 1.5mm Thickness | ||
| Highlight | street light led retrofit,led light replacements |
||
Product Description

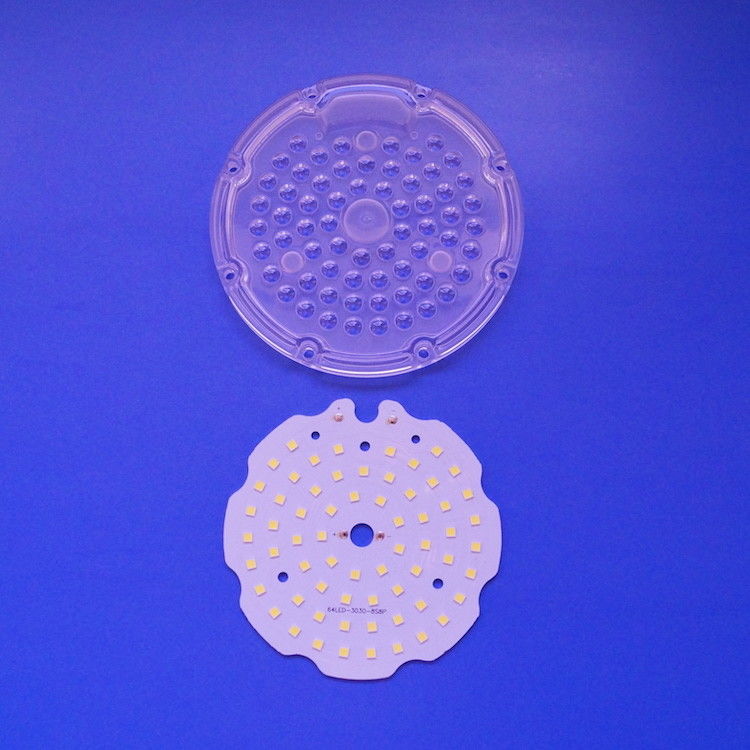

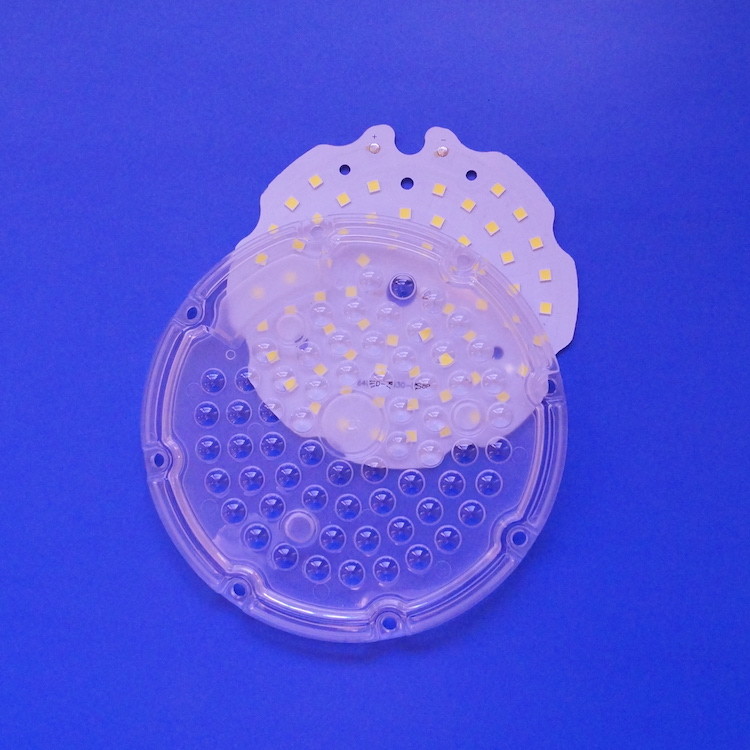

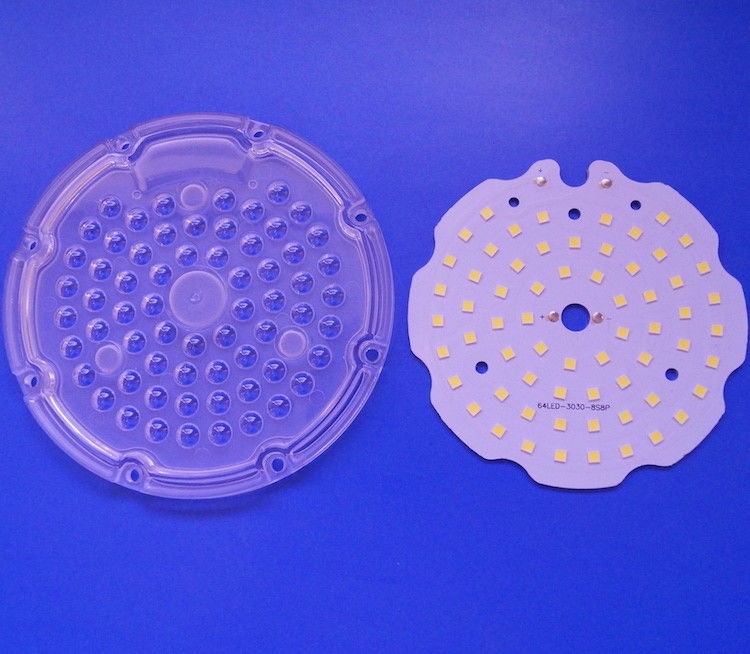

120 Degree High bay light module 50w 64 pieces 3030SMD Board 6 series 6 parallel 135-150lm
Quick Detail:
Model No:SUN-J64-3030-120
Material: PC
Beam Angle : 120 degree
Lens size:110mm diameter
PCB size:92.8mm diameter
Match LED: 3030SMD LED
Small footprint, high light output
Features :
- This SKD 64 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 55W,110W and so on .
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like 90/120 degree.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
1, Product Name | 120 Degree High bay light module 50w 64 pieces 3030SMD Board 6 series 6 parallel 135-150lm |
2, Model No | SUN-J64-3030-120 |
3, Main parts | Array lens , silicon gasket and PCB board with led |
4, Lens Material | PC |
5, Lens size | 110mm diameter, 6.8mm height |
6, Transmittance | 91% |
7,LEDS | 3030 SMD LED, 140-150lm@ 150mA,6v |
8, Sample | 3-4 work day |
9, Delivery | 5-7 work days for 10000 sets |
10, Angle | 120 degree |
11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
12, Main market | Europe, South America,North America, Asia |
Shipping and delivery time:
DHL/UPS/TNT/FEDEX | 4-5 working days |
EMS | 10-15 working days |
HK Post Air Mail Register | 15-18 working days |
Trade Terms | FOB|EXW|CIF|CFR |
Sample availability | YES |
Delivery time | 3-4 working days |
LENS Dimensions :
Dimensions for silicon gasket:
Beam pattern:
PCB board size:
