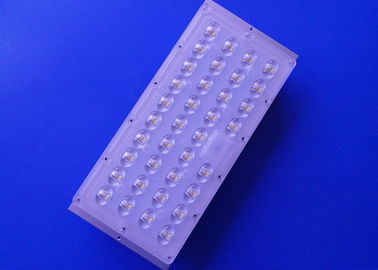

151x81 Degree LED Street Light Module PCB TYPE II-M SMD3030

name

151x81 Degree LED Street Light Module PCB TYPE II-M SMD3030

Brand Name:	Sunshineopto
Model Number:	SUN-LD253X120-36-151x81
MOQ:	1
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS,ROHS

Product Name:

151x81 Degree TYPE II-M 144 LED 4 Pcs X 3030 SMD LED Parking Light Module

Model No.:

SUN-LD253X120-36-151x81

Beam Angle:

151x81 Degree

LENS Size:

253X120X10.6MM

Material:

Optical Grade PC

LED CHIP:

3030 SMD LED,6V 150mA

Tranmittance:

91%

Application:

High Bay Light/Street Light/Square Lighting/Projection Lam And So On

PCB Size:

223X93X1.5MM

Circuit For PCB Board:

8 Series 18 Parallel

Packaging Details:

Cartons

Supply Ability:

5000pcs/months

Highlight:

151x81 Degree LED Street Light Module

,

SMD PCB LED Street Light Module

,

SMD3030 LED Parking Light Module

Product Description

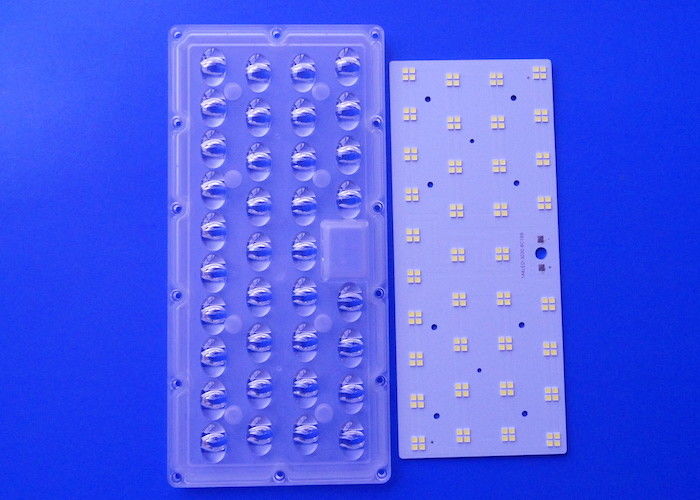

151x81 degree TYPE II-M 144 LED 4 pcs x 3030 SMD LED Parking light module

Quick Detail:

Model No:SUN-LD253X120-36-151x81
Material: PC
Beam Angle : 151x81 degree
Lens size:253X120X10.6mm
PCB size:223X93X1.5mm

Heat sink:273x120x42mm
Circuit: 8 series 18 parallel
Match LED: 3030 SMD LED
Small footprint, high light output

Features :

This SKD 36 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 100W,110W and so on .
It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance.
Optic lenses are available for projects that need smaller beam angles, like 60 degree, 90 degree, 150 degree, 117x52 degree, 100x1400 degree, 181x51 degree.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

1, Product Name	151x81 degree TYPE II-M 144 LED 4 pcs x 3030 SMD LED Parking light module
2, Model No	SUN-LD253X120-36-151x81

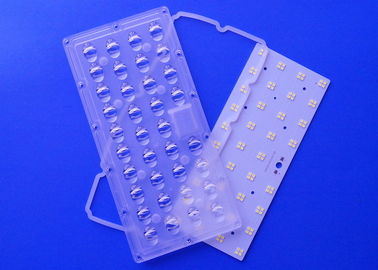

3, Main parts	36 Array lens , silicon gasket+PCB+ 3030SMD LED+heat sink
4, Lens Material	PC
5, Lens size	253X120MM
6, Transmittance	91%
7,LEDS	3030 SMD,6V, 150mA
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, Angle	117X52 degree
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample availability	YES
Delivery time	3-4 working days

LENS Dimensions :

151x81 Degree LED Street Light Module PCB TYPE II-M SMD3030 0

Beam pattern:

151x81 Degree LED Street Light Module PCB TYPE II-M SMD3030 1

Rerated of lens:

151x81 Degree LED Street Light Module PCB TYPE II-M SMD3030 2

151x81 Degree LED Street Light Module PCB TYPE II-M SMD3030 3

Application:

Any request or question , please freely contact me by :

Yuan Hu

EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56
Whatsapp:+86-18665803783

Mobile: +86-18665803783
QQ:1831466204

Wechat:Helen1404
