| Brand Name: | Sunshineopto |
| Model Number: | SUN-SL72-3030-80x150 |
| MOQ: | 1 |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T,PAYPAL,Western Union,Money Gram |
Product Feature:
3. We can according your require to design new Lens & Board.
4. This SKD 72 LED Array lens with PCB Module is best design power lamps like 50W for per module.
5. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Specifications:
|
1, Product Name |
12V 50W SMD 3030 LED Street Light Module 160lm/w for Solar Street Light |
|
2, Model No |
SUN-SL72-3030-80x150 |
|

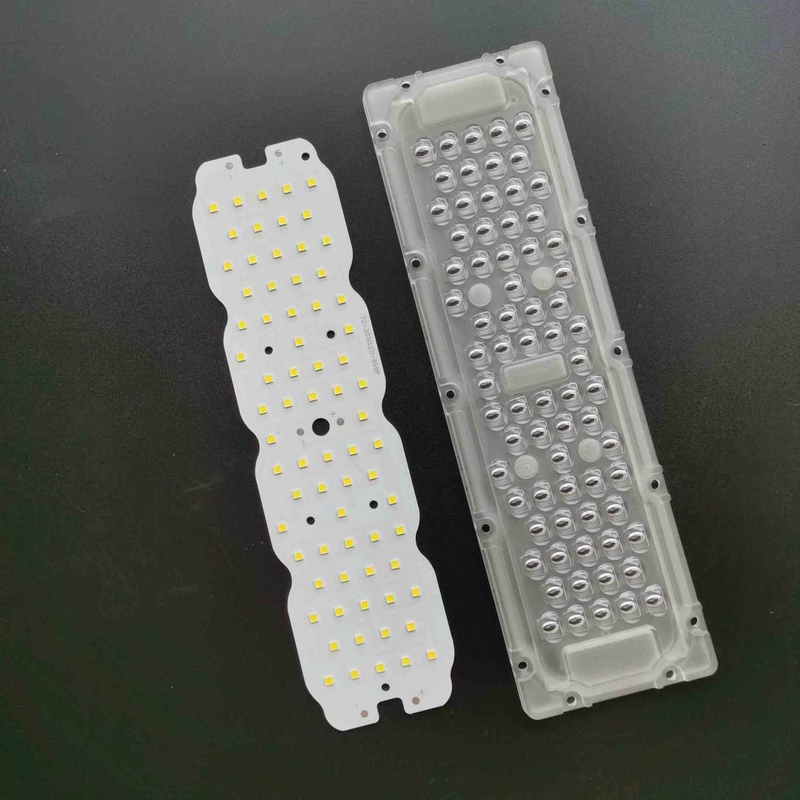

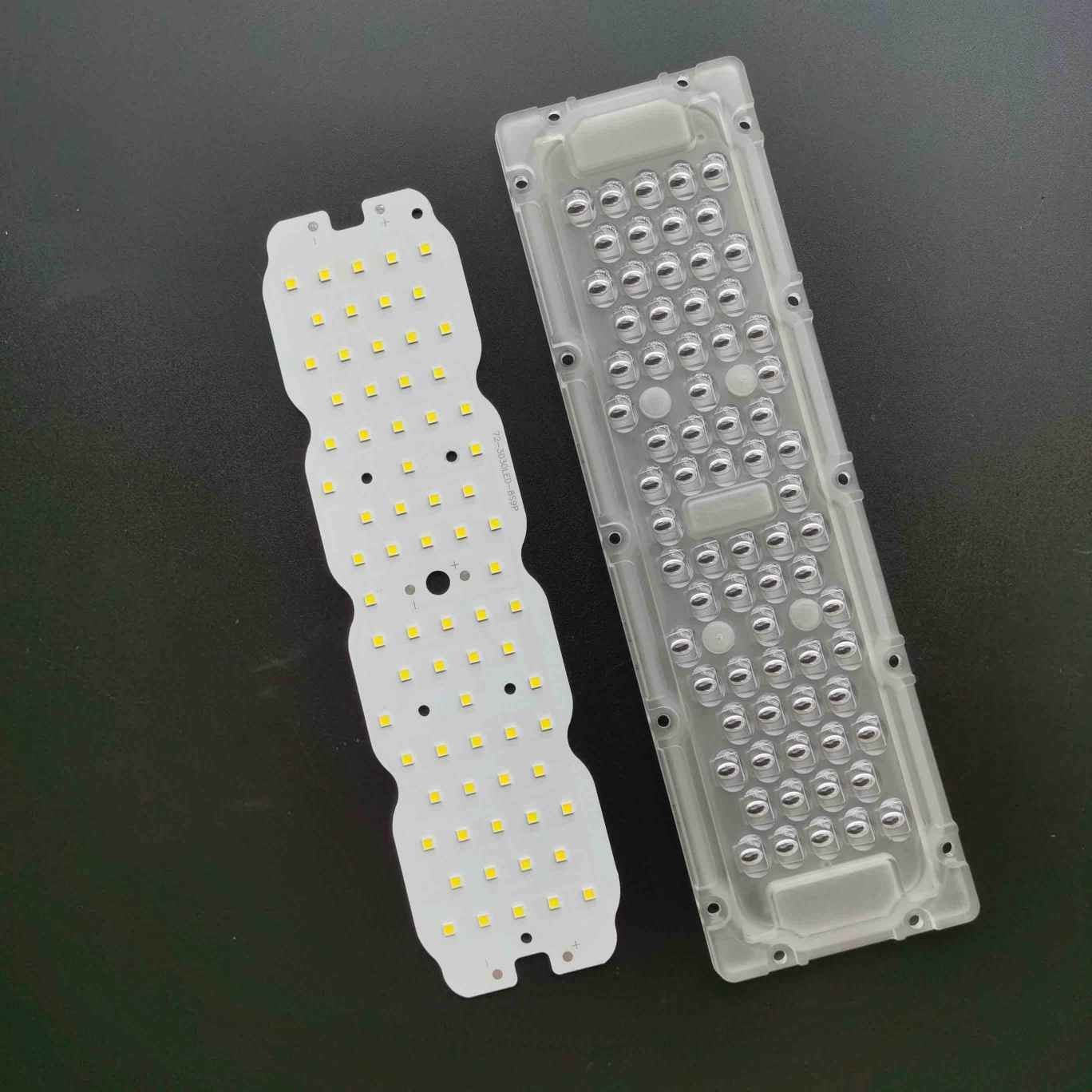

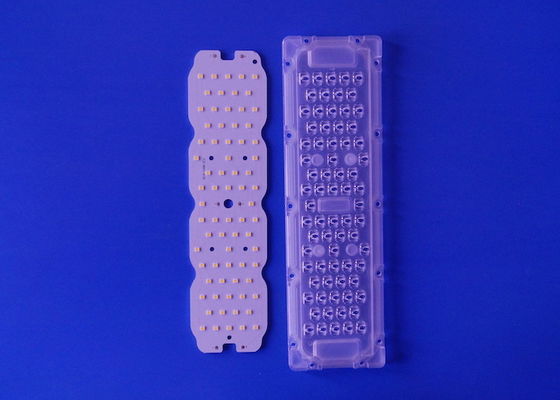

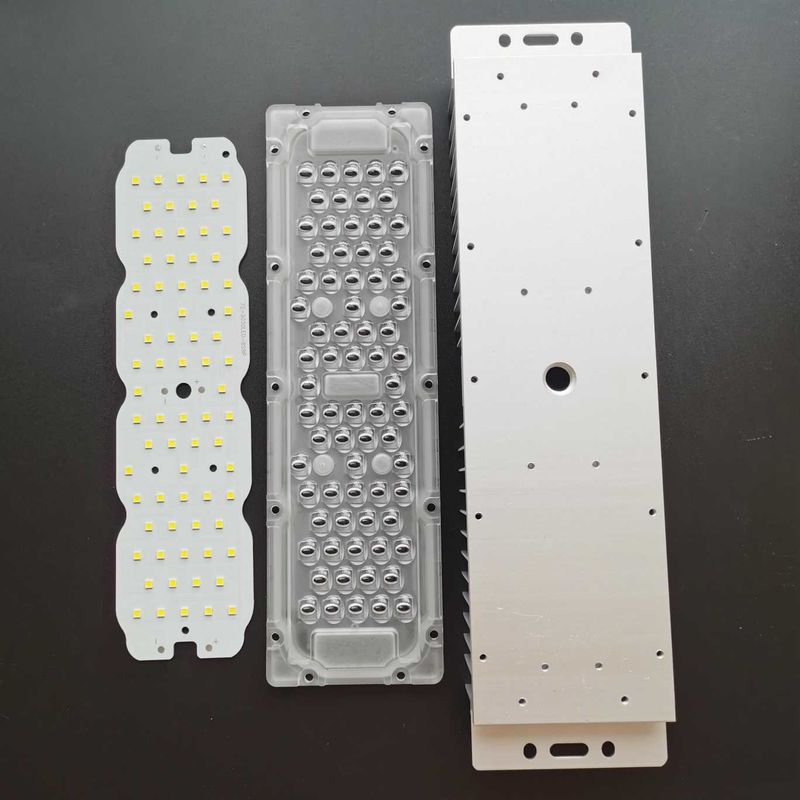

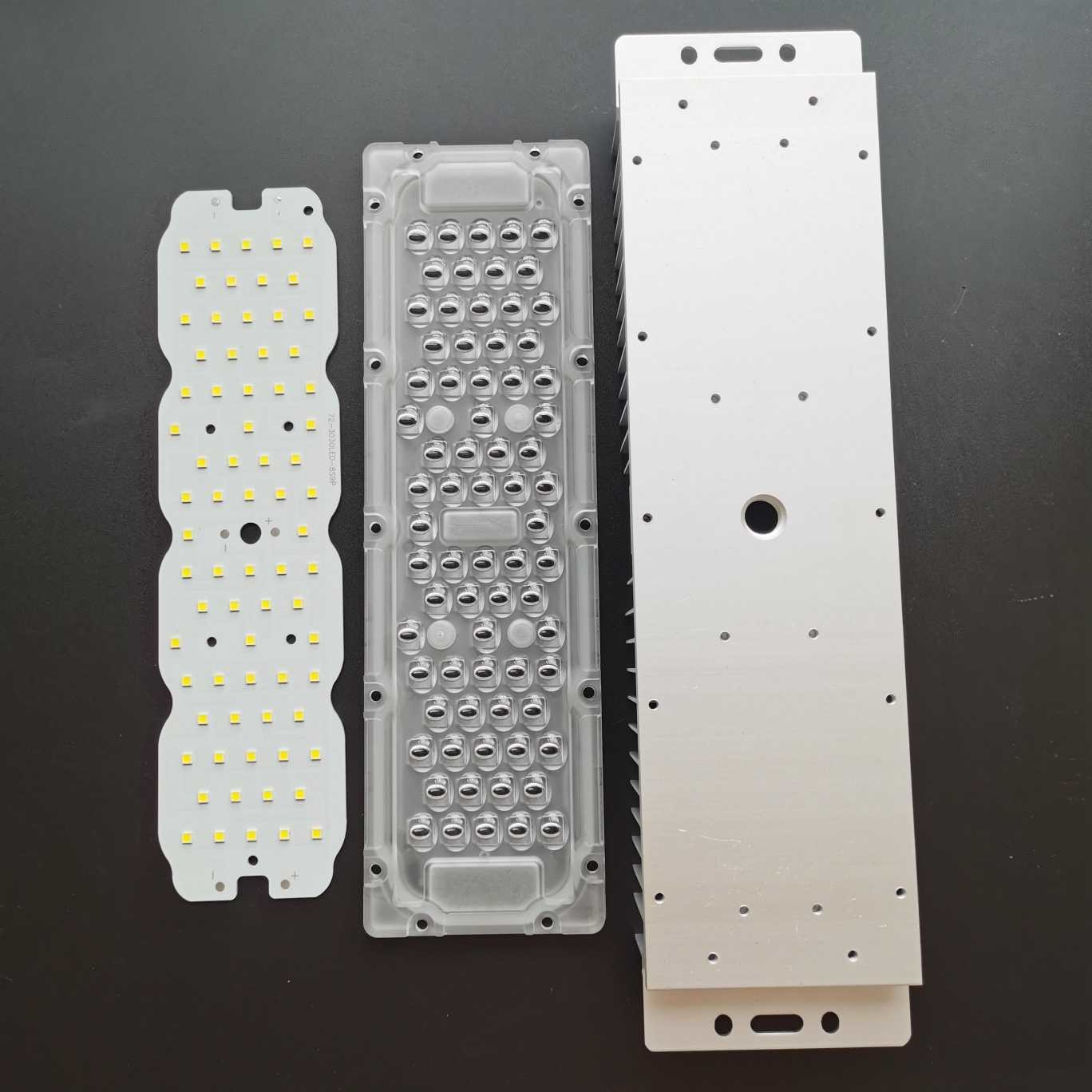

3, Main parts |
Array lens , silicon gasket+PCB+LED+HEAT SINK |
|

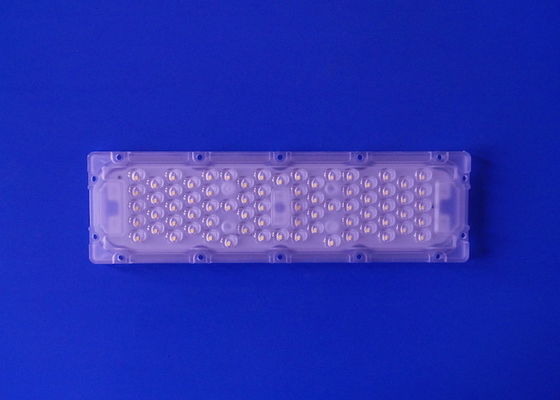

4, Lens Material |
PC |
|
5, Lens size |
250X74MM |
|
6, Transmittance |
91% |
|
7,LEDS |
3030 SMD LED, 140-150lm 150mA,6v |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 10000 sets |
|

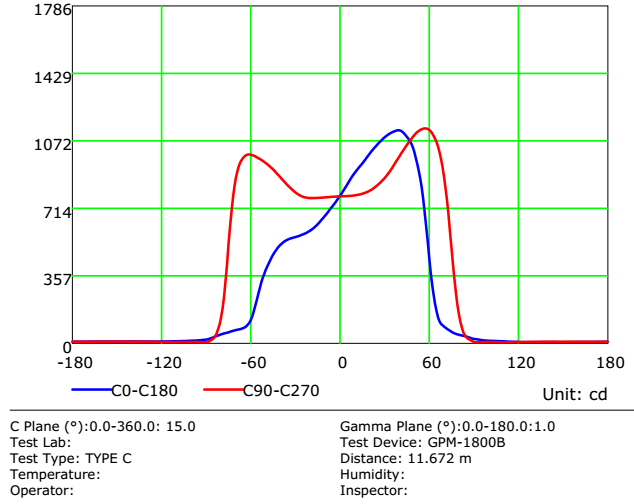

10, Angle |
80x150 degree /60 degree/90 degree |
|
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
12, Main market |
Europe, South America,North America, Asia |
Other SMD 3030 Led Module
| Model No. | Power(W) | Angle(Degree) | Lens size(mm) | PCB size(mm) | Circuit |
|
SUN-LD3x12-3030-90x90 |
30 | 90x90 | 250x74 |
228x53x1.5
|
6S6P |
|
SUN-LD3x12-3030-60x140 |
30 | 60x140 | 120x110 |
89x89x1.5 |
6S6P |
|
SUN-LD4X12-3030-60X60 |
40 | 60x60 | 250x74 |
228x53x1.5
|
6S8P |
|
SUN-SL56W-3030-30/60/90 |
50 | 30/60/90 |
256.6x78.6 |
233x55x1.5
|
7S8P |
|
SUN-SL64W-3030-30/60/90 |
50 | 30/60/90 | 236x70 |
219.1x53.54x1.5 |
8S8P |
|
SUN-SL72-3030-60/90
|
50 | 60/90 | 250x74 |
226x57.9x1.5 |
8S9P |
LENS Dimensions :
Gasket and PCB size:

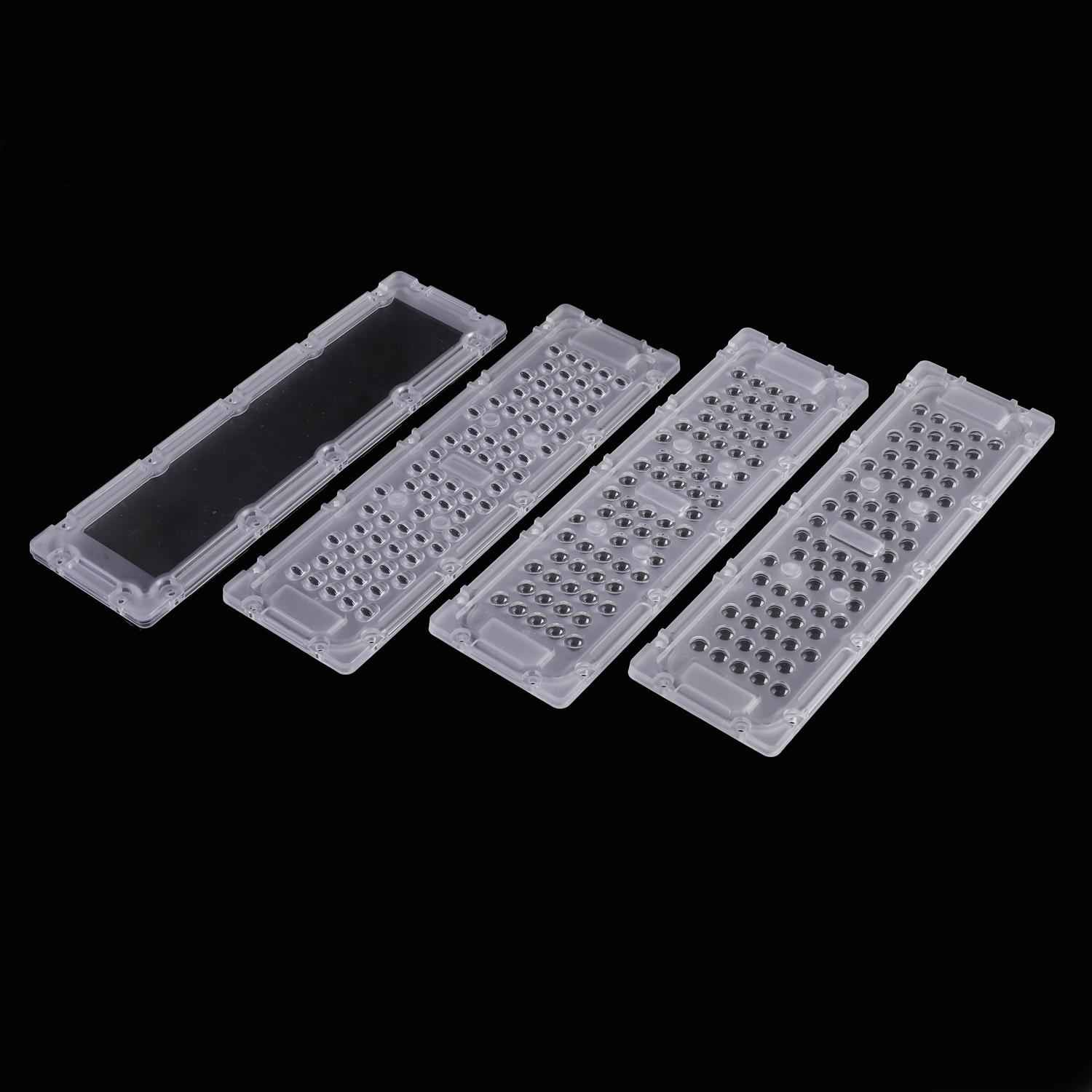

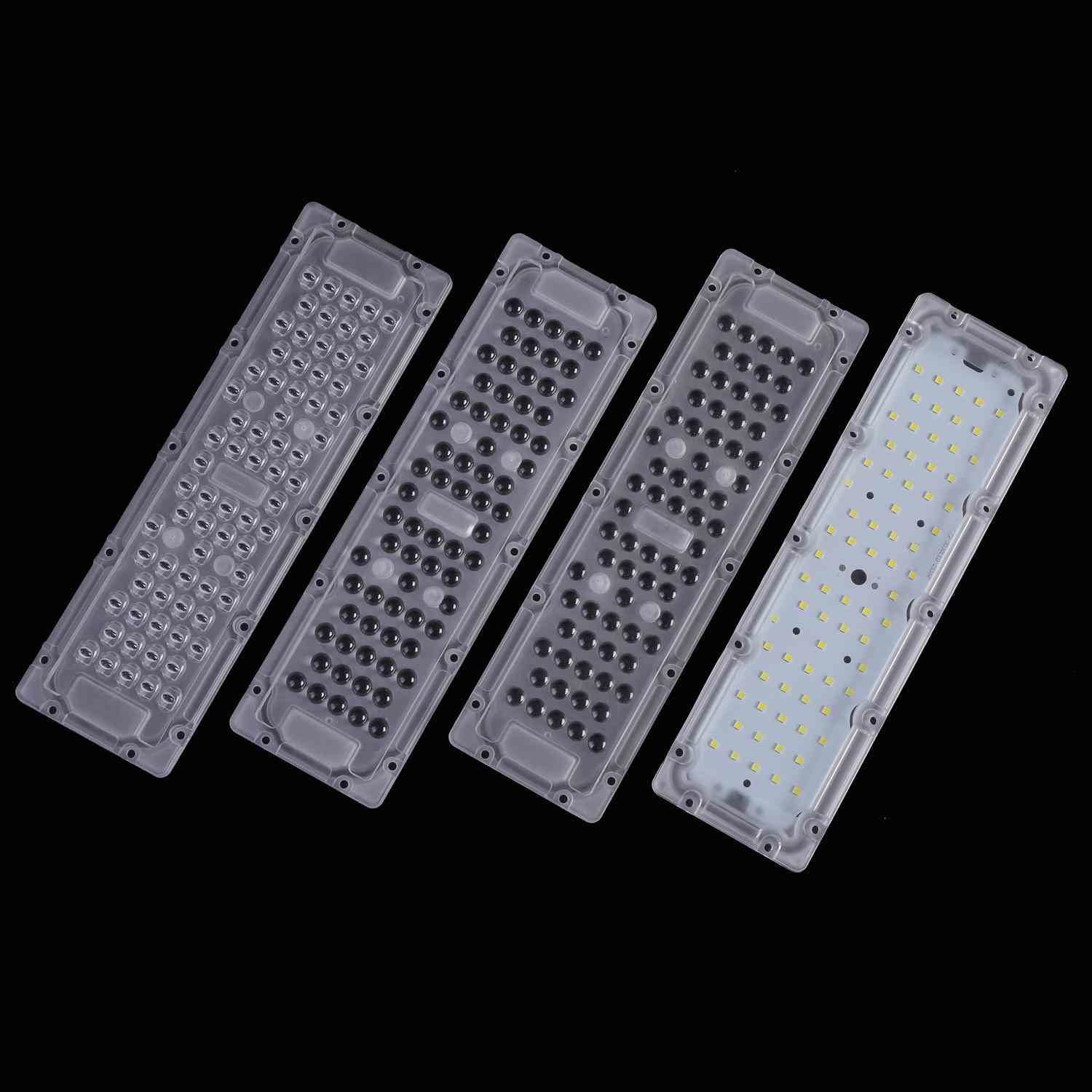

Array lens series:
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
