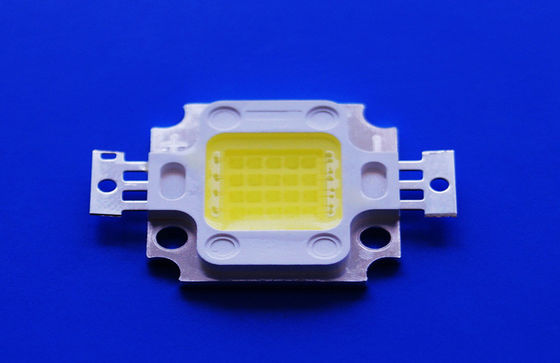

18V 20W 1800 - 2000 lumen COB high power white led with ROHS

18V 20W 1800 - 2000 lumen COB high power white led with ROHS
18V 20W 1800 - 2000 lumen COB high power white led with ROHS 18V 20W 1800 - 2000 lumen COB high power white led with ROHS 18V 20W 1800 - 2000 lumen COB high power white led with ROHS

Large Image :  18V 20W 1800 - 2000 lumen COB high power white led with ROHS

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: LM-80,ROHS
Model Number: SP20W
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Need to negotiate
Packaging Details: 50PCS/REEL
Delivery Time: 3-4 work days for 1000pcs.
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 10000 pcs for one week.
Trade terms: FOB ,CIF ,CFR ,EXW
Shipment: BY DHL/TNT/FEDEX/UPS/AIR/SEA
Sample availability: (Yes / No)YES
Sample time: 3 work days
Warranty Service: 2 years
Detailed Product Description
Led Holder Size :: 29x20mm Forward Voltage :: 15-18V
Test Forward Current :: 1400mA CT :: 2900-3200K, 4000-4500K,4500-5000K,5000-5500K,5500-6000K,6000-7000K ,7000-9000K
Luminous Flux :: 1800-2000lm Led Circuit: 5 Series 4 Parallel
High Light:

led chip high power

,

high power led module

18V 20W 1800 - 2000 lumen COB High Power White LEDs with LM-80 , ROHS

Quick Detail:


1.Model :SP20W
2.Led holder size :29x20mm
3.Forward Voltage :15-18V
4.Test Forward current : 1400mA
5.CT : 2900-3200K, 4000-4500K,4500-5000K,5000-5500K,5500-6000K,6000-7000K ,7000-9000K
6.Luminous Flux : 1800-2000lm
7.RA >65
8.Reverse Voltage >18 Reverse
9.current(uA) <30 ESD Sensitivity (V) 3000
10. 5 series 4 parallel

Usage: LED lighting , street light , flashlight , Floodlight etc.
Certificate: LM-80,ROHS


Description:



  1. Best raw materials used in our LED production :

    1)Chip: Bridgelux or Epistar  45MIL chip;
    2) Silicon glue: USA Dowcorning (good glue has less lighting decreasing);
    3) Powder: USA Intermatix (good powder has better performance in lumens);
    4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;
    5) Led base:red/ black cooper base .
    Super high Flux output and  high Luminance  ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
    We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow etc.
    6) Accept Smalll Order & 2 years warranty .


Specifications:


Product Name

18V 20W High Power COB LED White For Flood Light

Model No

SP20WCW

Finishing

COB Packing

Material

Epistar chip or Bridgelux chip 45mil

MOQ

100pcs

Size

29x20mm

Package

50pcs/reel ,100pcs /box

Sample

3-4 work days

Delivery

3-4 work days

Certificate

LM-80,ROHS

Quality gurantee

2 years warranty

Main market

Europe, America, Austria, Asia


Competitive Advantage of SUNSHINEOPTO :

1. About 6 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.

The demensions of High power LED 20W as below :

18V 20W 1800 - 2000 lumen COB high power white led with ROHS 0


Applications:

General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight
