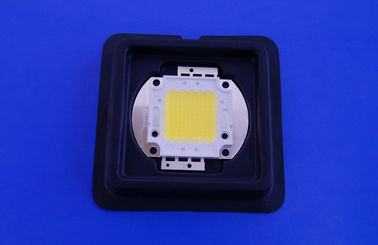

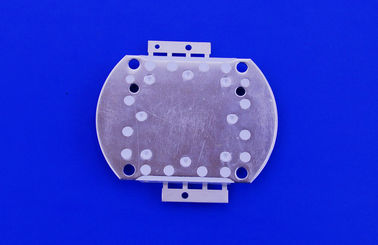

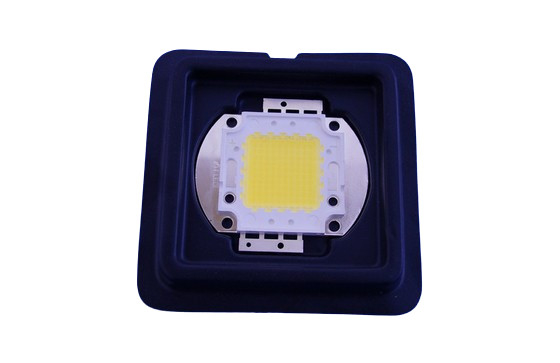

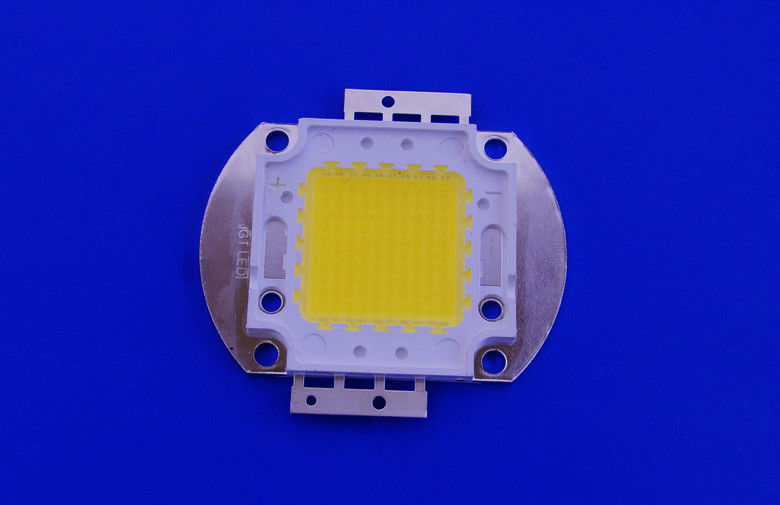

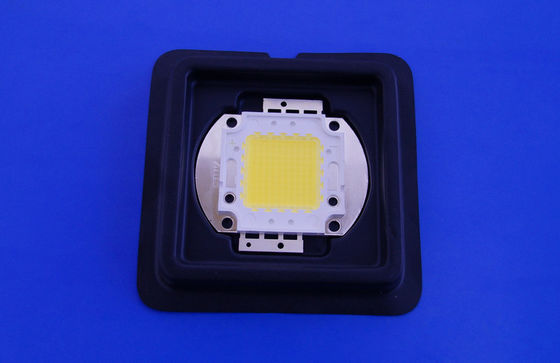

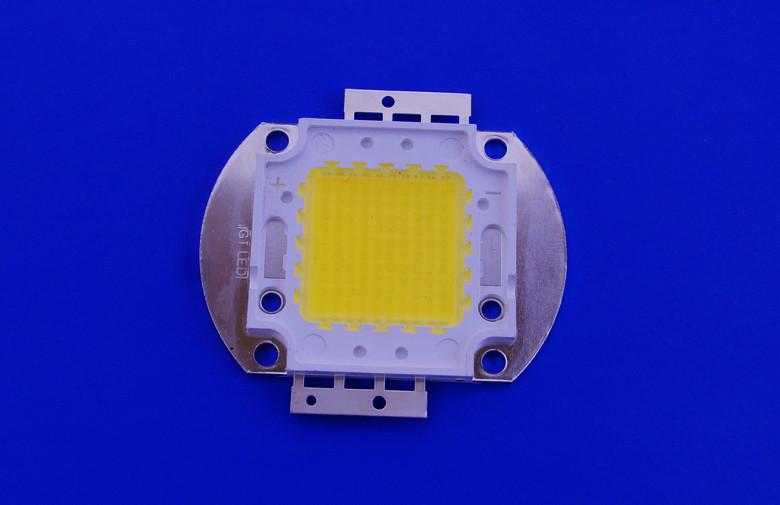

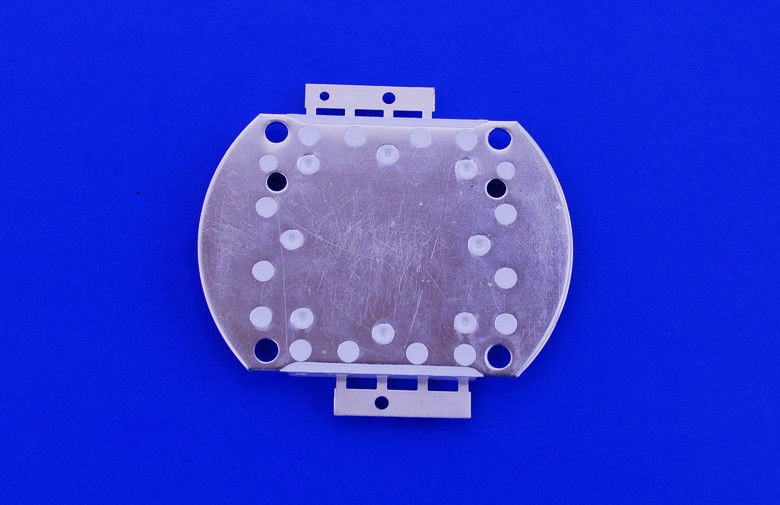

Custom Warm / Nature / Cool White COB LED



Custom Warm / Nature / Cool White High Power COB LED 30W for LED Street Lamp


Quick Detail:

1.Model :SP30W
2.Led holder size :56X40mm
3.Forward Voltage :30-36V
4.Test Forward current : 1050mA
5.CT : 2900-3200K , 4000-4500K , 4500-5000K,5000-5500K,5500-6000K,6000-6500K ,7000-9000K
6.Luminous Flux : 2700-3000lm
7.RA >65
8.Reverse Voltage >18 Reverse
9.current(uA) <30 ESD Sensitivity (V) 3000
10.10 series 3 parallel

Usage: LED lighting , street light , flashlight , Floodlight etc.
Certificate: LM-80,ROHS


Description:



Specifications:



Competitive Advantage of SUNSHINEOPTO :

1. About 6 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.

The demensions of High power LED 30W as below :





Applications:

General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight

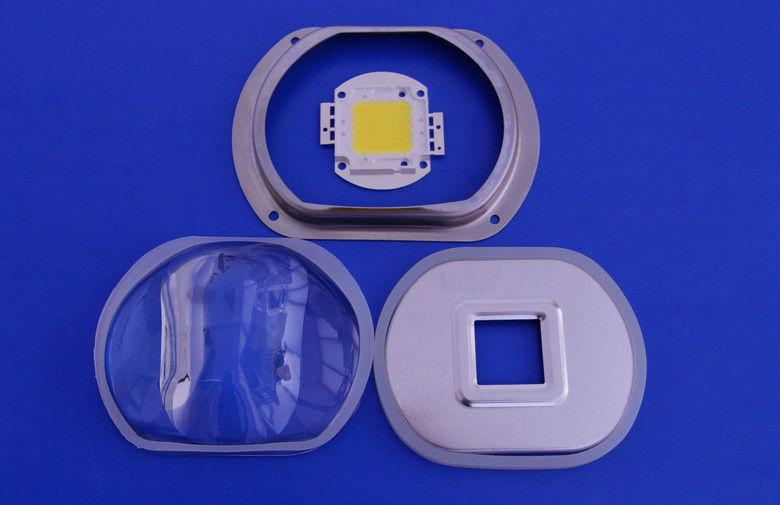

Similar related led products in High Power LEDs :


Packing of 30w High Power LEDs :


High power LED production line :
