192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications

Brand Name: Sunshineopto
Model Number: SUN-LD240X160-48X4-T3-M
MOQ: 1
Packaging Details: Cartons
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS,ROHS
Product Name:
100W 120W 150W 192PCS TYPE2-M TYPE3-M TYPE4-M LED Modules With Heatsink 210x240x35mm
Model No.:
SUN-LD240X160-48X4-T3-M
Beam Angle:
TYPE3-M
LENS Size:
240X160mm
Heatsink Size:
210x240x35mm
LED CHIP:
3030 SMD LED , 150mA, 6V, 140-150LM/W
Tranmittance:
91%
Application:
High Bay Light/Street Light/Area Light/Project Light/Square Light And So On
PCB Size:
216x136x1.5mm
Circuit For PCB Board:
8 Series 24parallel, 48V OUTPUT
Supply Ability:
5000pcs/months
Highlight:

192PCS LED Street Light Module

,

LED Street Light Module Array lens

,

Heatsink SMD Led Light Module

Product Description
192PCS 3030 SMD LED Street Light Module With Heatsink 210x240x35mm
High-Performance LED Module Solution

This 192-piece 3030 SMD LED array module with heatsink provides an optimal solution for 100W-150W power lamps. Designed as a cost-effective retrofit kit, it enables the reuse of existing metal halide or HPS bulb housings, significantly reducing total system costs compared to complete LED fixture replacements.

Key Features
  • Industry-leading thermal management technology
  • Operating temperature range: -35°C to +70°C
  • Mercury-free and lead-free construction
  • No UV radiation emission, protecting eyesight
  • Directional lighting for dark sky compliance and reduced light pollution
  • Multiple optic lens options available (TYPE2-M, TYPE3-M, TYPE4-M)
  • Lowest total cost solution for LED retrofitting
Technical Specifications
Product Name 100W 120W 150W 192PCS TYPE2-M TYPE3-M TYPE4-M LED modules with heatsink 210x240x35mm
Model Number SUN-LD240X160-48X4-T3-M
Main Components 48 Array lenses, silicon gasket, PCB, 3030 SMD LEDs, Heatsink
Lens Material Polycarbonate (PC)
Lens Size 240*160mm
Transmittance 91%
LED Specifications Original package 3030 SMD LED, 140-150 LM/W, 150mA, 6V
Beam Angle Options TYPE2-M / TYPE3-M / TYPE4-M
Quality Guarantee Defective item replacement or refund with photo verification
Primary Markets Europe, South America, North America, Asia
Shipping & Delivery
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB, EXW, CIF, CFR
Sample Availability Yes
Sample Delivery Time 3-4 working days
Applications

Ideal for street lighting, highway LED lamps, tunnel lighting, square lighting, road lighting, city lighting, parking spot lighting, track lighting fixtures, scenic area lighting, retail lighting, and other applications requiring high luminous flux output.

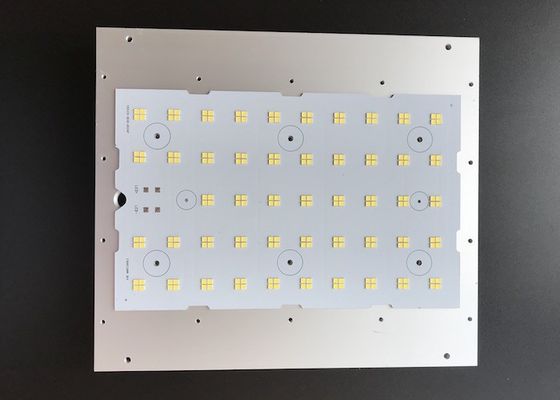

192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications 0

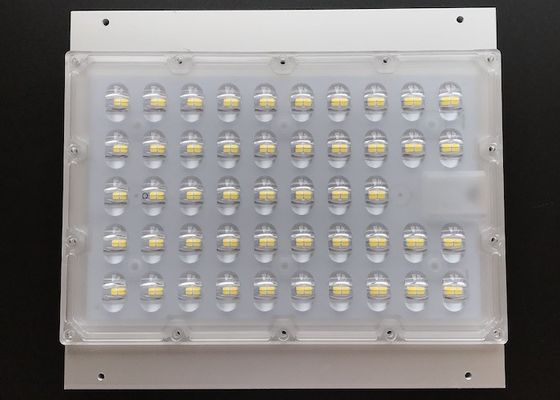

192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications 1
Lens Dimensions

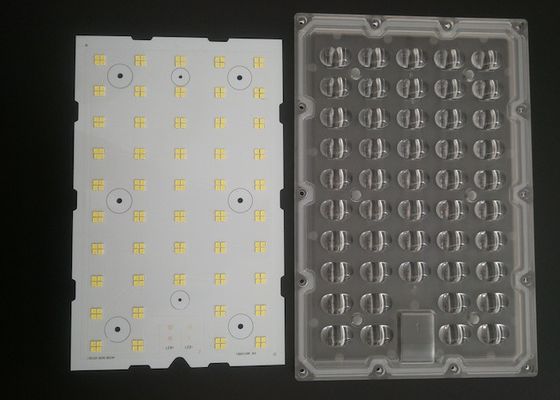

192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications 2
Beam Pattern Options
TYPE2-M Beam Pattern
192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications 3
TYPE3-M Beam Pattern
192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications 4
TYPE4-M Beam Pattern
192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications 5
Heatsink Design
192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications 6
LED Driver Compatibility
192PCS 3030 SMD LED Street Light Module with 210x240x35mm Heatsink for 150W Power Applications 7
