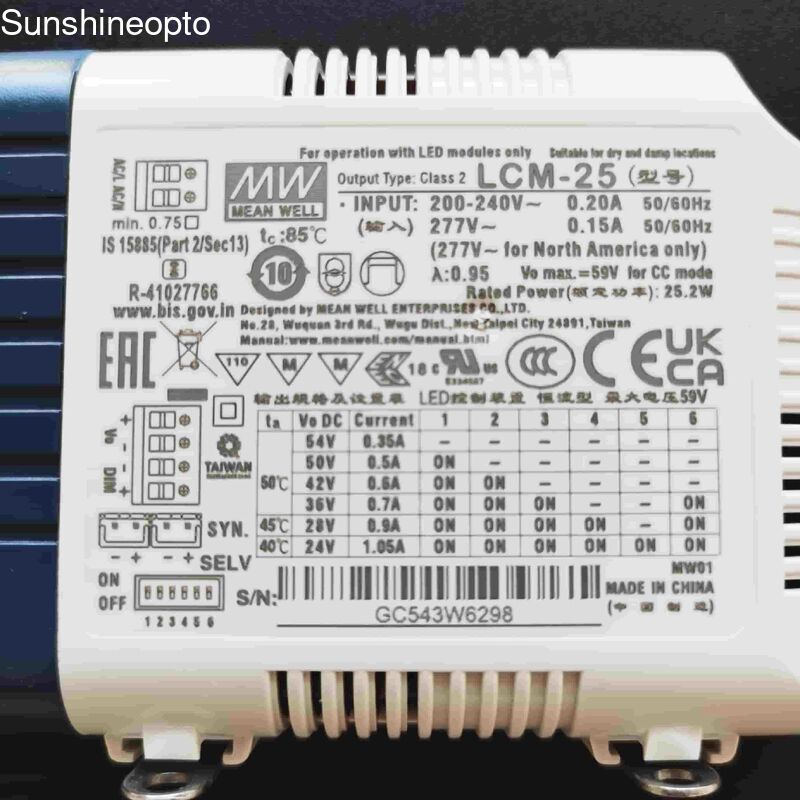

25W Constant Current Driver for Indoor AppIication

Brand Name:	MEAN WELL
Model Number:	LCM-25
MOQ:	10pcs
Price:	Need to negotiate
Packaging Details:	carton
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ROHS,CE,TUV,CER,EMC

Document:

Product Name::

25W Constant Current Driver For Indoor AppIication

Material::

Aluminum Case

Input Voltage::

AC180-277V

Power ::

18.9W/25.2W

Brand：:

MEAN WELL

Current Available::

350mA/500mA/600mA/7000mA/900mA/1050mA

Supply Ability:

10000pcs/month

Highlight:

120W LED Power Supply

Waterproof LED Power Supply

IP65 outdoor led power supply

Product Description

25W Constant Current Driver for Indoor AppIication

Description

LCM-25 series is a 25w AC/DC constant current mode output LED driver featuring the muItipIe IeveIs seIectabIe by dip switch. LCM-25 operates from 180～277VAC and offers different current I eveIs ranging between 350mA and 1050mA. Thanks to the efficiency up to 86% , with the fanIess design , the entire series is abIe to operate for -30℃ ~+85℃ case temperature under free air convection . LCM-25 is equipped with various functions , such as the dimming function and synchronization, so as to provide the optimaI design fIexibiIity for LED Iighting system .

Features

.Constant Current mode output with mu ItipIe I eveIs seIectabIe by dip switch

.PIastic housing with cIass II design

.BuiIt-in active PFC function

.standby power consumption <0.5w

.Functions: 3 in 1 dimming (dim-to-off) ;synchronization up to 10 units

.3 years warranty

Specification

MODEL		LCM-25
	CURRENT LEVEL	Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section
		350mA	500mA	600mA	700mA(default)	900mA	1050mA
	RATED POWER	18.9W	25.2W
OUTPUT	DC VOLTAGE RANGE	6 ~ 54V	6 ~ 50V	6 ~ 42V	6 ~ 36V	6 ~ 28V	6 ~ 24V
	OPEN CIRCUIT VOLTAGE (max.)	59V			41V
	CURRENT RIPPLE	5.0% max. @rated current
	CURRENT TOLERANCE	±5%
	SETUP TIME Note.3	500ms / 230VAC
	VOLTAGE RANGE Note.2	180 ~ 277VAC 254 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF≥0 .94/230VAC , PF≥0 .91/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
INPUT	TOTAL HARMONIC DISTORTION	THD< 20%(@load≥50%/230VAC; @load≥75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD) ” section)
	EFFICIENCY (Typ.) Note.4	86%
	AC CURRENT (Typ.)	0. 17A/230VAC 0. 15A/277VAC
	INRUSH CURRENT (Typ.)	COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0 .5mA / 240VAC
	STANDBY POWER CONSUMPTION Note.5	<0 .5W

25W Constant Current Driver for Indoor AppIication 0

Application

.LED indoor Iighting

.LED office Iighting

.LED architect uraI Iighting

.LED paneI Iighting

Shipping&Payment

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB \| EXW \| CIF \| CNF
Sample Availability	YES
Standard Delivery Time	3-4 working days

25W Constant Current Driver for Indoor AppIication 1
